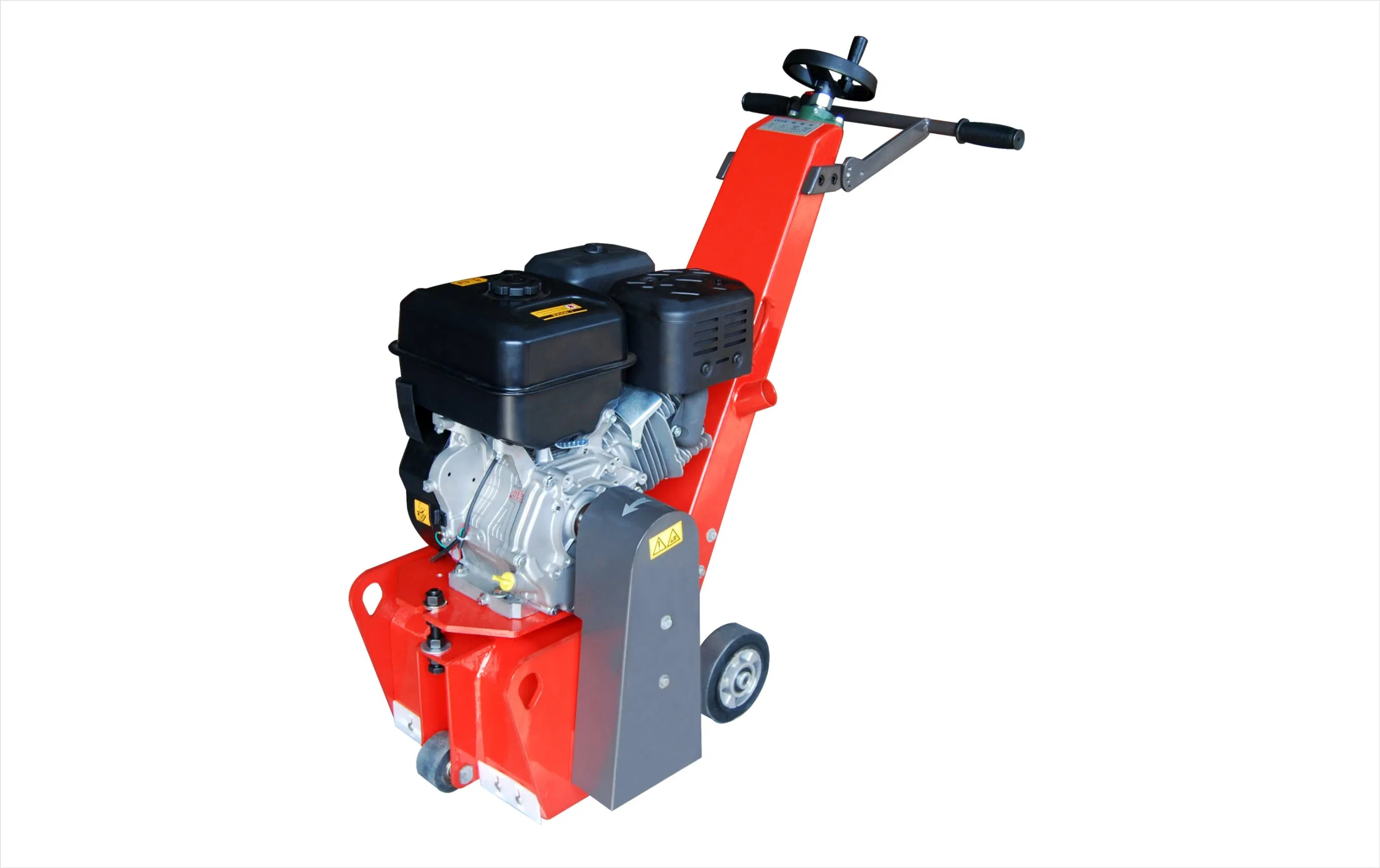

Concrete Pavement Resurfacing Milling Machine Road Asphalt Scarifier

1 / 5

Concrete Pavement Resurfacing Milling Machine Road Asphalt Scarifier

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SSM 250A

Type

Scarifier Machine

Object

Cement Concrete Pavement

Moving Type

Mobile

Mixing Method

Continuous Drum

Automatic Grade

Semi-Automatic

Product Capacity

40～400t/h

Certification

Motor

4kw/7.5kw

Voltage

380V

Material

High Strength Aluminum

HS Code

8467190000

Product Description

Road milling machine is one of the main types of asphalt pavement maintenance machinery. One of the main equipment for asphalt concrete pavement maintenance is mainly used for excavation and renovation of asphalt concrete surface such as roads, town roads, airports and freight yards. It can be used to remove road surface crowding, oil waves, netting, rutting and other defects.

⚙️ Working Principle:
The milling rotor consists of a rotor shaft, tool holder, and cutter head. It works by high-speed rotation to achieve precise milling. Equipped with an automatic leveling device, it controls hydraulic cylinders to maintain a constant milling depth.

⭐ Key Features:
1. Integrated dust outlet for cleaner operation.
2. Multiple cutter options for different surface needs.
3. Adjustable cutting depth for precision work.
4. Easy-to-reach engine stop switch for safety.
5. Anti-vibration mounts for operator comfort.

Technical Parameters

Specification	SSM 250A (Electric)	SSM 250B (Gasoline)
Working Width	250mm	250mm
Working Depth	0-5mm	0-5mm
Power Source	7.5kw Motor	Honda GX390
Rotating Speed	2900rpm	2900rpm
Total Weight	170kg	160kg

Model	SSM-300H	SSM-300E
Engine/Motor	Honda GX690 24hp	11kw Siemens Motor
Milling Width	300mm	300mm
Milling Depth	8-15mm	8-15mm
Efficiency	65-80m²/h

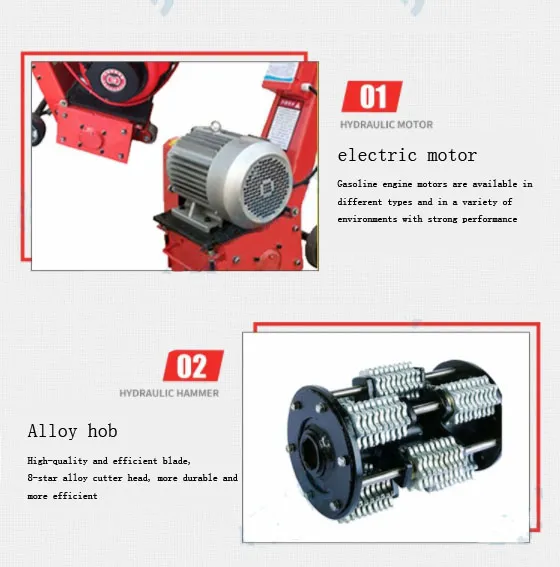

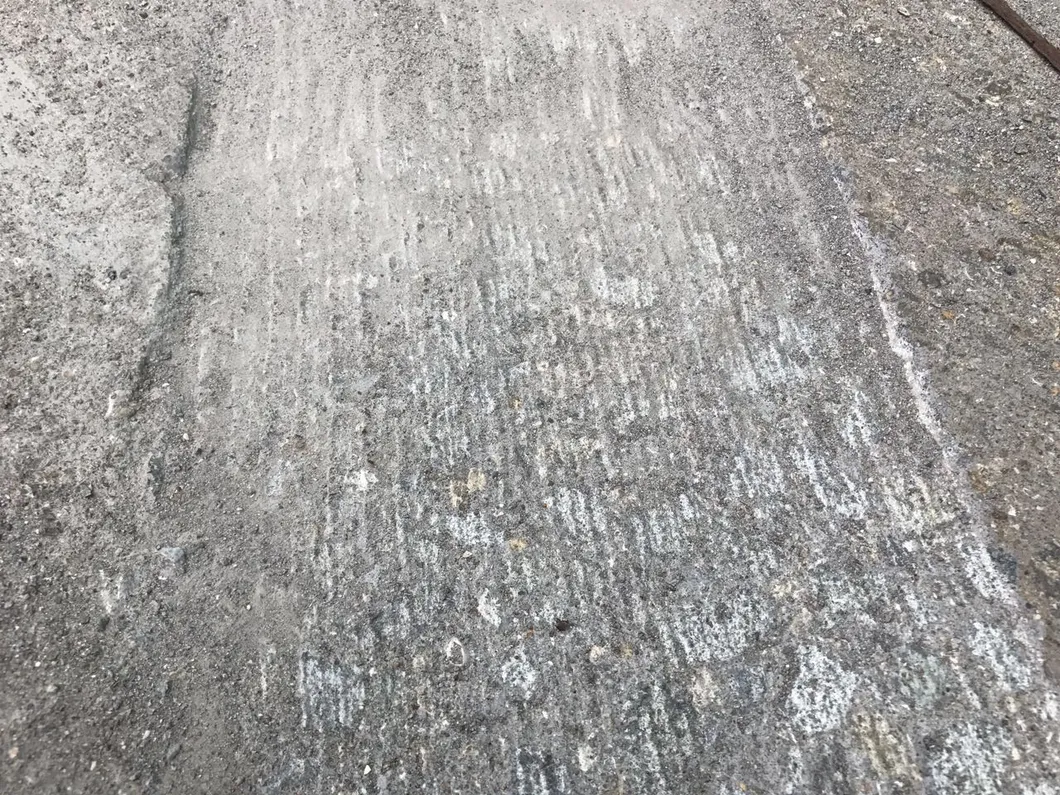

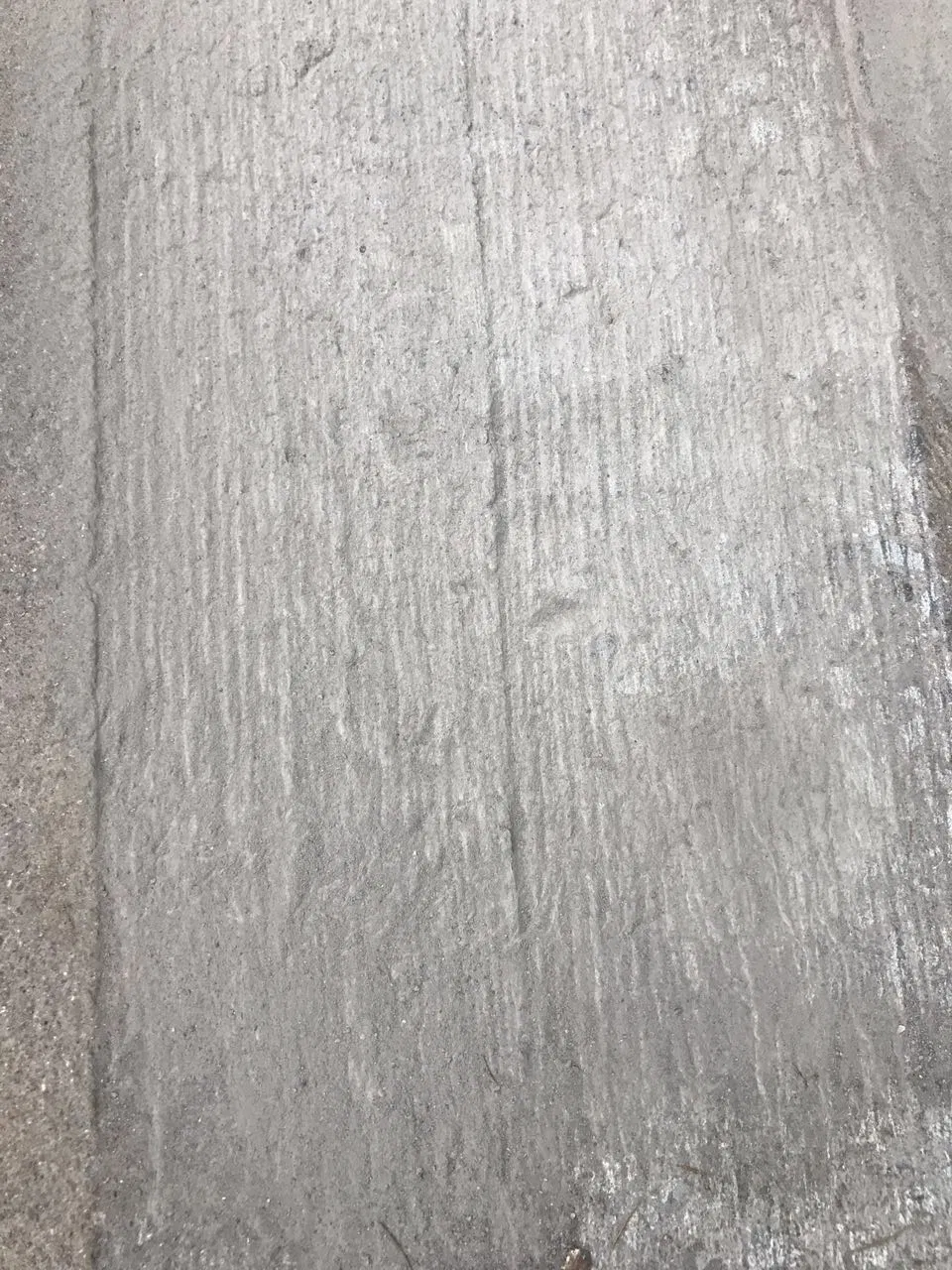

Details & Working Effect

Frequently Asked Questions

What is the primary use of this road scarifier?

It is primarily used for excavating and renovating asphalt or cement concrete surfaces, removing ruts, oil waves, and preparing surfaces for new coatings.

Is the milling depth adjustable?

Yes, the milling depth is fully adjustable. For the 250 series, it ranges from 0-5mm, and for the 300 series, it can reach up to 15mm.

What power options are available?

We provide both high-quality electric motors (including Siemens options) and genuine gasoline engines like Honda GX series depending on the model.

How many blades does the machine use?

Standard models typically come with 4 to 6 milling spindles with replaceable high-strength blades.

Does the machine support dust collection?

Yes, the machine is designed with a specific dust outlet to connect to industrial vacuum systems for cleaner operation.

What are the unique selling points?

Our machines feature long lifetime components, high-strength aluminum materials, and anti-vibration mounts for superior durability and comfort.
