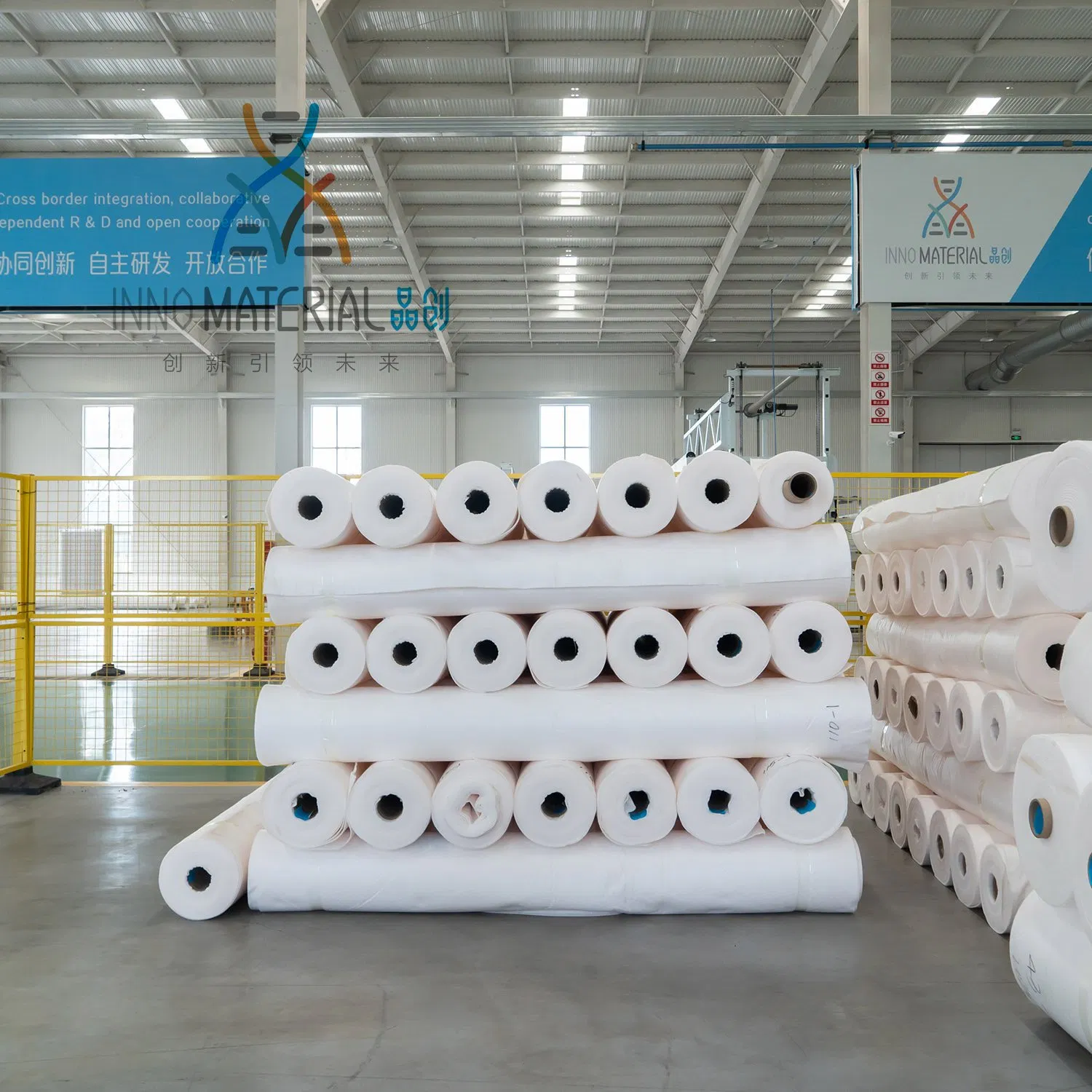

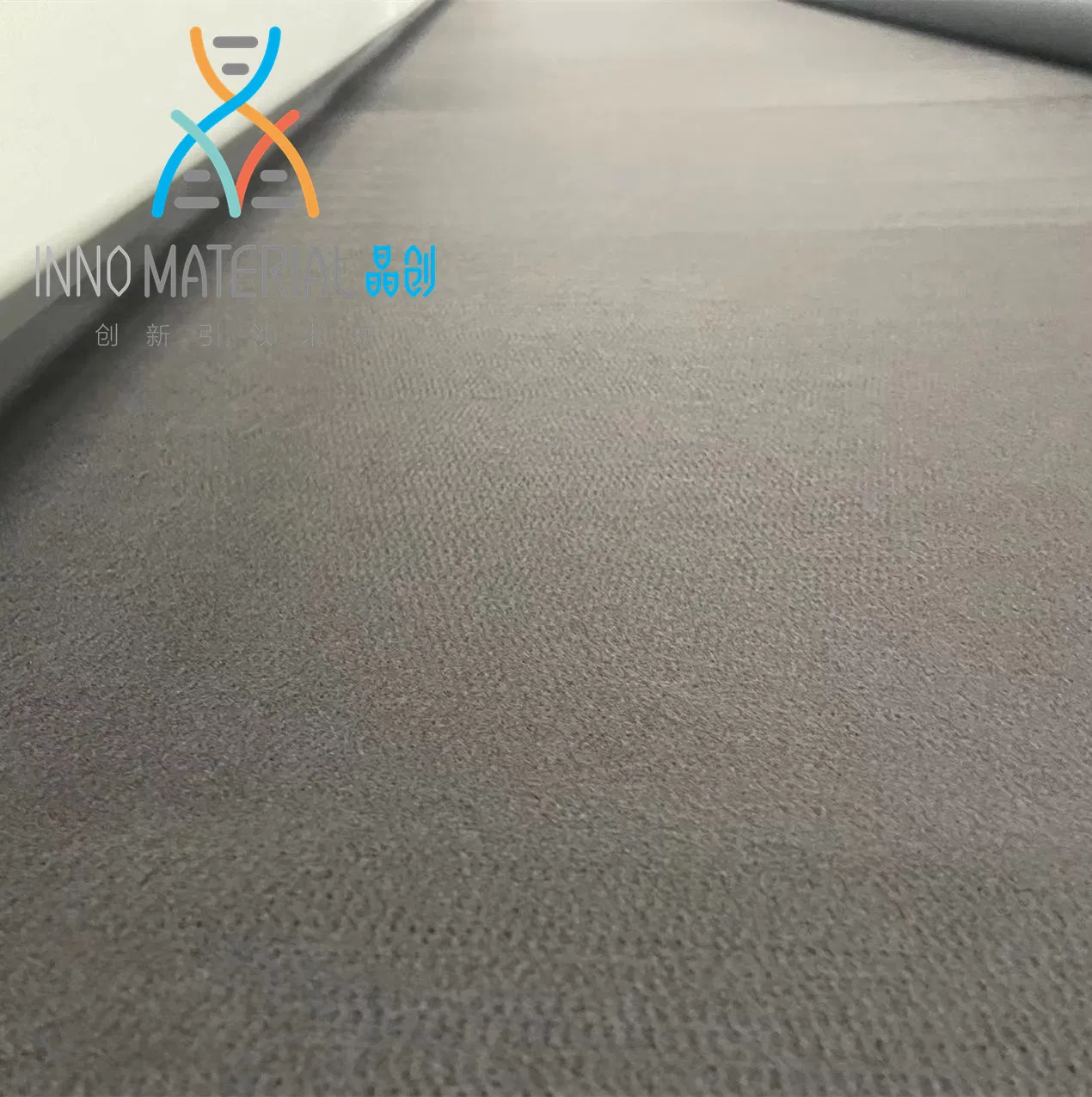

Durable Waterproof Polyester Nonwoven Geotextile for Animal Husbandry

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Info

Model NO.
ASTM
Color
White
Certification
CE
Material
PP
Usage
Insulation, Waterproof, Water Filter
Feature
Corrosion Resistant, Wear-resistant
Width
1-6.5m
Specification
80-1000g
HS Code
5602100000

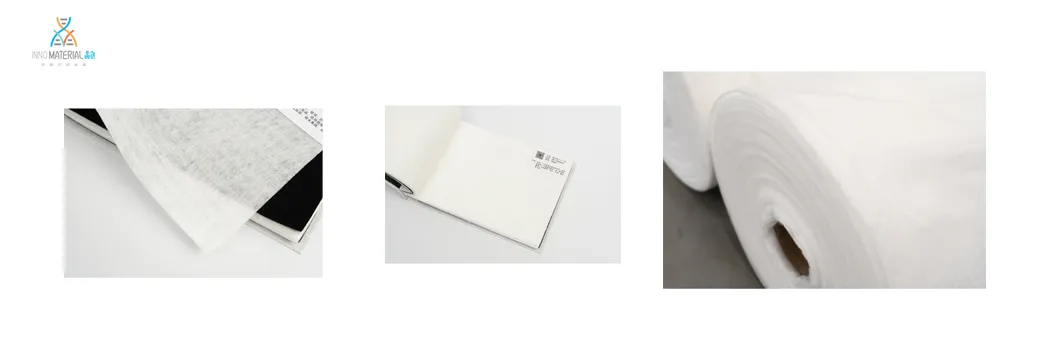

Nonwoven Geotextile

Polypropylene Filament Geotextile Advantages

The world's first 6.5-meter-wide products, featuring exclusive technology protected in the Asia regional.

Reducing splicing, enabling convenient construction and saving costs.
Process equipment adopts automatic systems from world-leading manufacturers Oerlikon and OBA.
Raw materials selected from French TOTAL, one of the four major petrochemical companies.
Stronger mechanical properties with single fiber within 5.5-13dtex.
Surface free of floating wire; no layering under extreme weather ensuring project safety.

Product Display

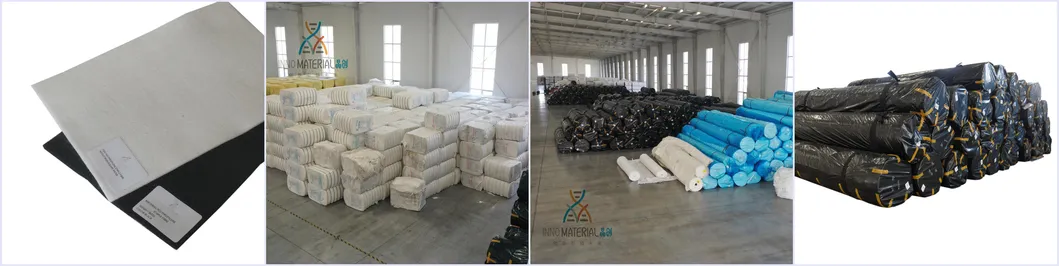

Geotextile Display 1

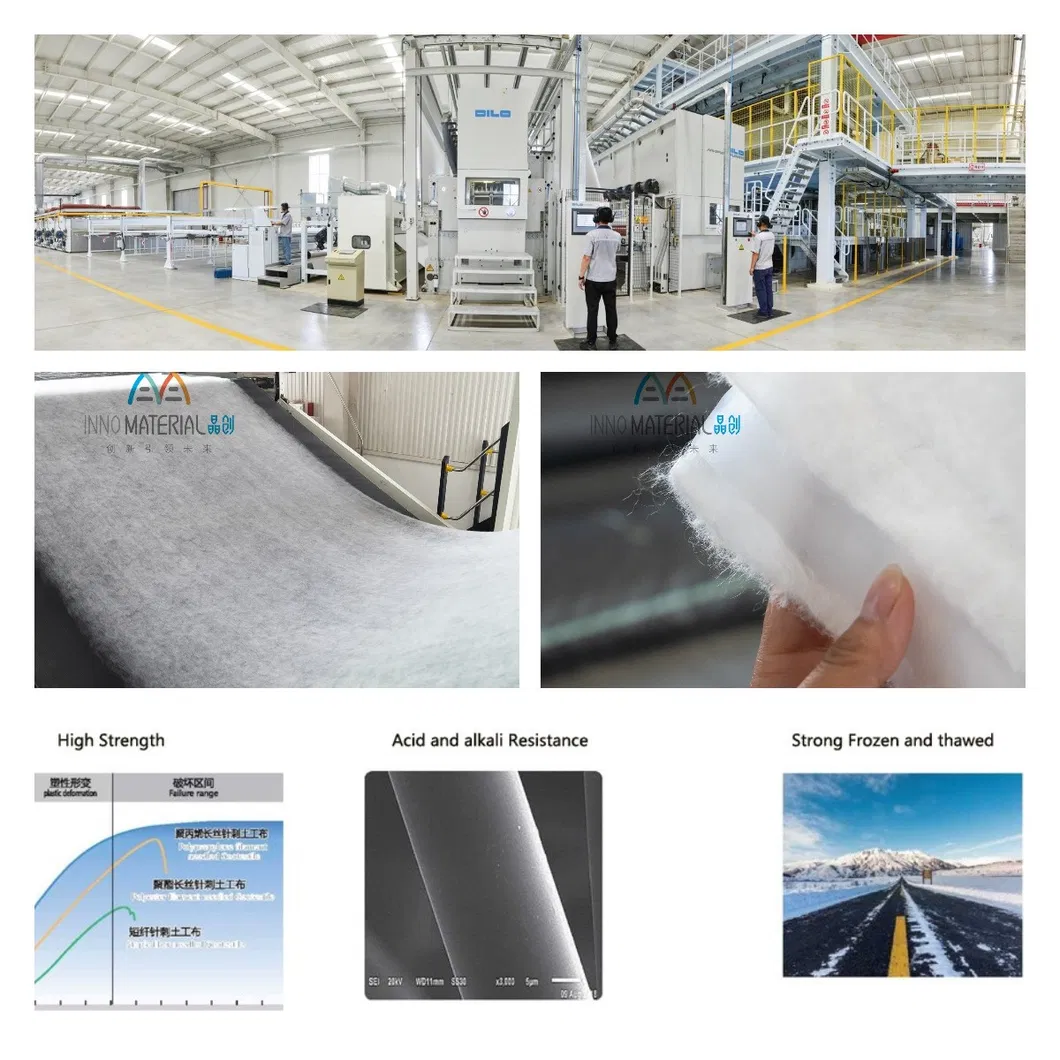

Geotextile Display 2

Core Functions

1. Isolation: Prevents mixing of different soil/material layers to maintain structure stability.
2. Filter: Excellent water permeability while intercepting soil particles and small stones.
3. Drainage: Forms internal drainage channels for excess liquid and gas emissions.
4. Reinforced: Enhances soil tensile strength and anti-deformation ability.
5. Protection: Focuses on effective stress-proliferation to prevent soil damage.
📊

Technical Data Property

Weight (g/m2) 100200300400500600800
Thickness (mm) 1.21.82.63.34.04.56.0
Breaking Strength (≥KN) 6152228344050
CBR Strength (≥KN/m) 1.02.53.54.35.36.27.8

Wide Application

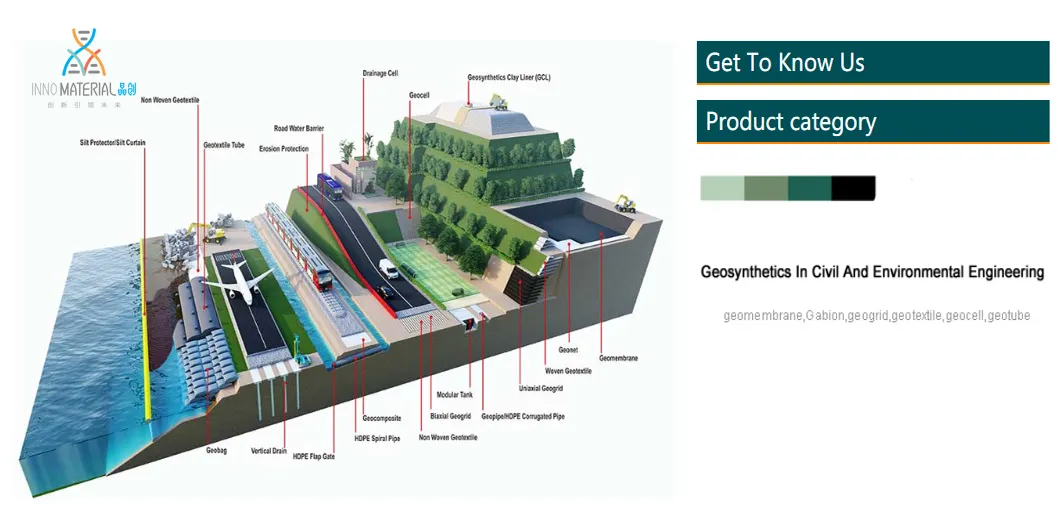

Application Diagram
  • High-speed rail sliding layers and sound insulation
  • Airport runway and expressway roadbed reinforcement
  • Sponge City and underground pipeline filtration
  • Landfill plants and sewage treatment anti-seepage
  • Ecological slope protection and greening maintenance
🏭

Process & Inspection

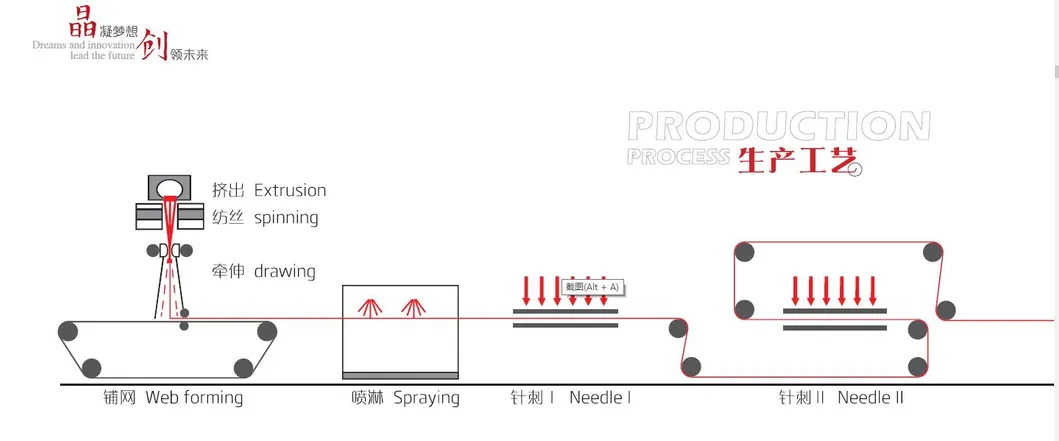

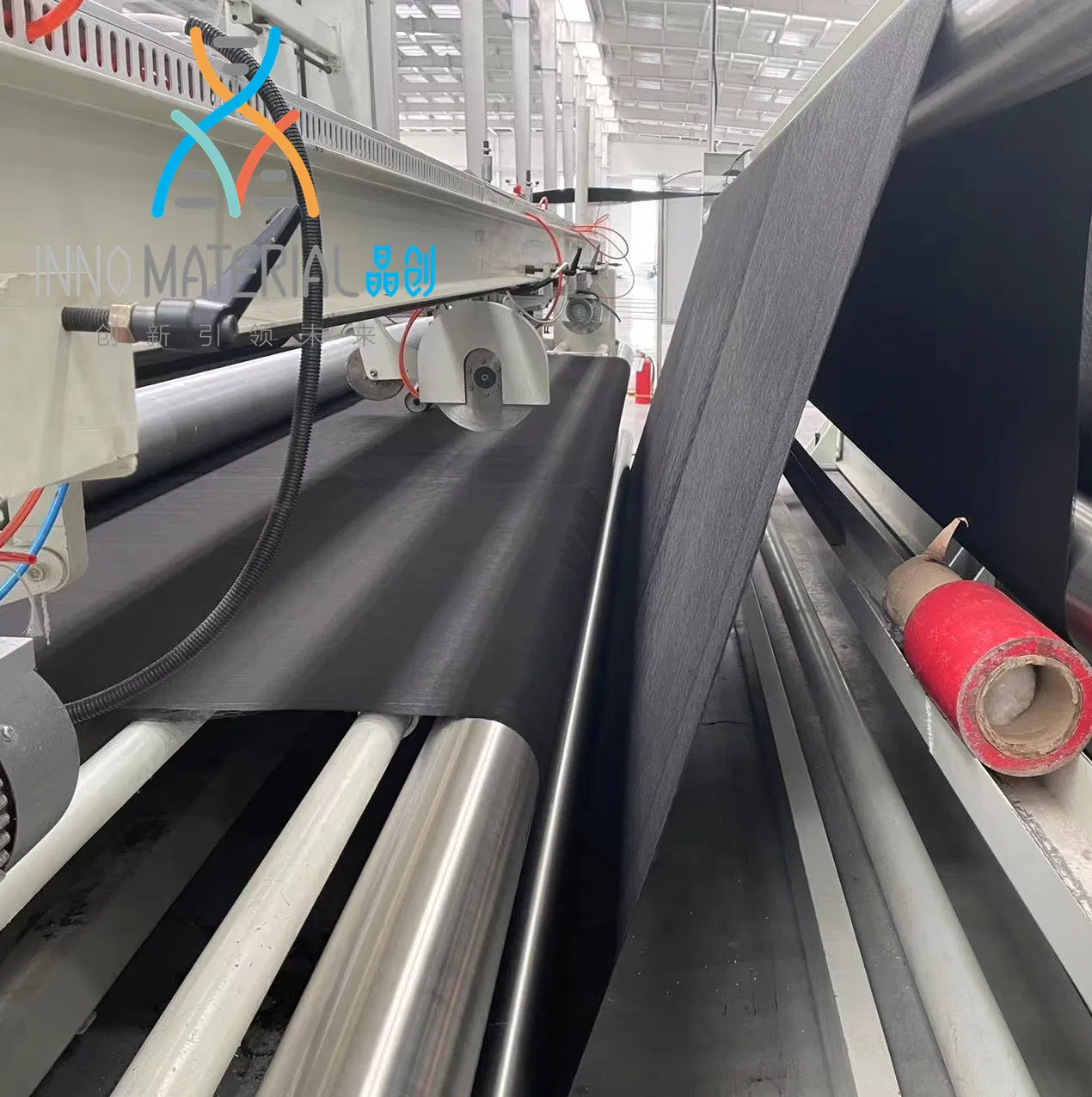

Process

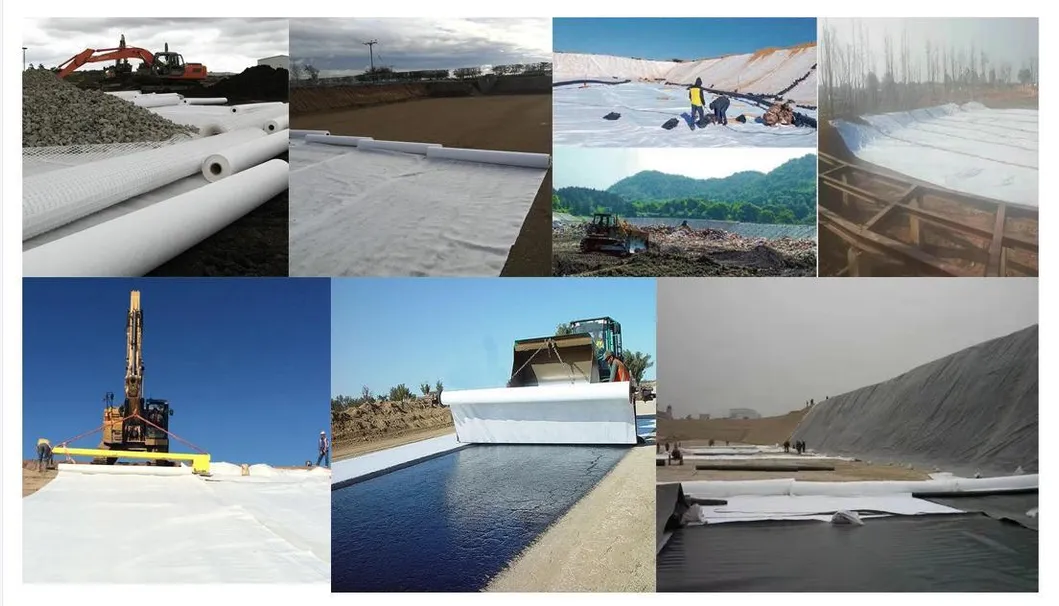

Project 1

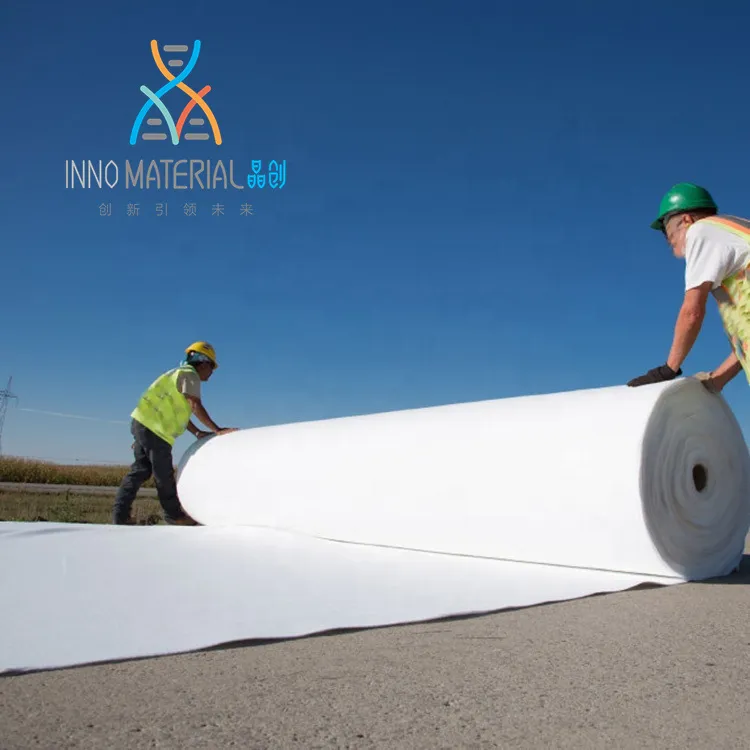

Project 2

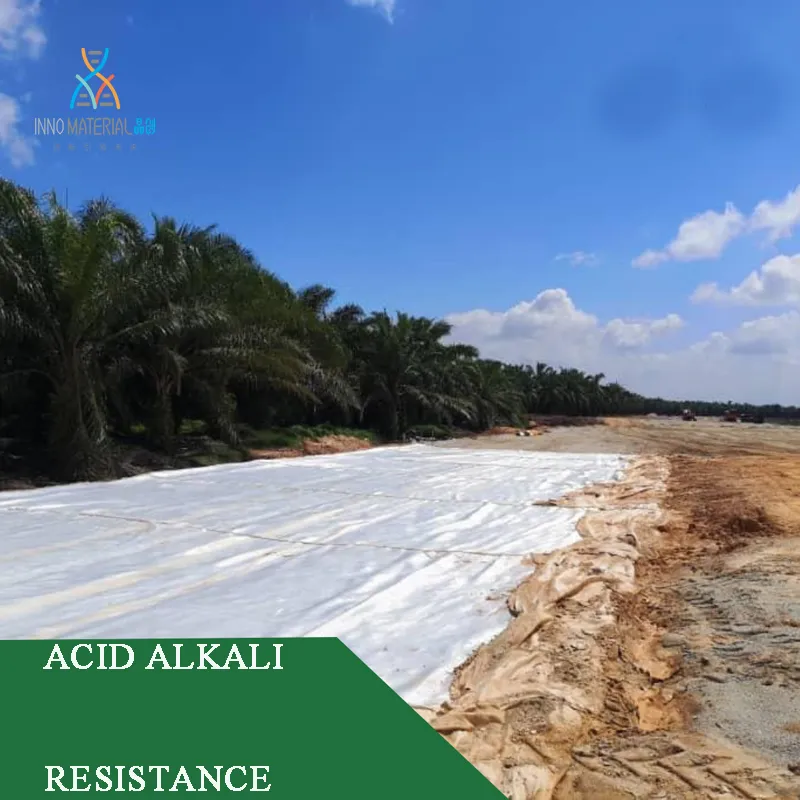

Project 3

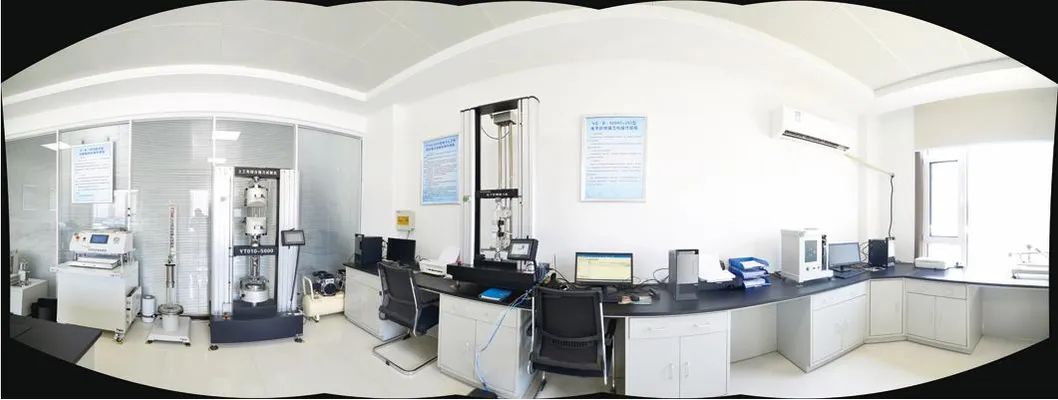

Quality Inspection
?

FAQ

Q1: What is the maximum width available for the geotextile? A: We offer the world's first 6.5-meter-wide products, which helps in reducing splicing and construction costs.
Q2: What material is used for the filament geotextile? A: We use high-quality polypropylene (PP) particles selected from French TOTAL for superior durability and resistance.
Q3: How does it perform in harsh environmental conditions? A: Our products are acid, alkali, and corrosion resistant, solving the service life issues of conventional geotextiles.
Q4: What is the primary function of this product in railways? A: It is used as a sliding layer for high-speed rails, providing sound insulation, vibration reduction, and friction resistance.
Q5: Can the specifications be customized? A: Yes, weight ranges from 80g to 1000g and length can be customized according to specific project requirements.
Q6: What certifications do your products hold? A: Our products are CE certified, ensuring they meet high international quality and safety standards.
