Basic Specifications
Model NO.:ASTM
Color:White
Certification:CE
Material:PP (Polypropylene)
Kind:Non-woven
Width:1-6.5m
Feature:Corrosion/Oxidation/Wear-resistant
Capacity:50000sqm/Day
Polypropylene Filament Geotextile Advantages
World's first 6.5-meter-wide product with exclusive regional technology.
- Reduces splicing, enabling convenient construction and saving costs.
- Produced using complete automatic equipment from world leaders Oerlikon and OBA.
- Raw materials selected from French TOTAL petrochemicals.
- Single fiber within 5.5-13dtex, providing stronger mechanical properties.
- Surface free of floating wire; no layered splicing due to wind, rain, or steep slopes.

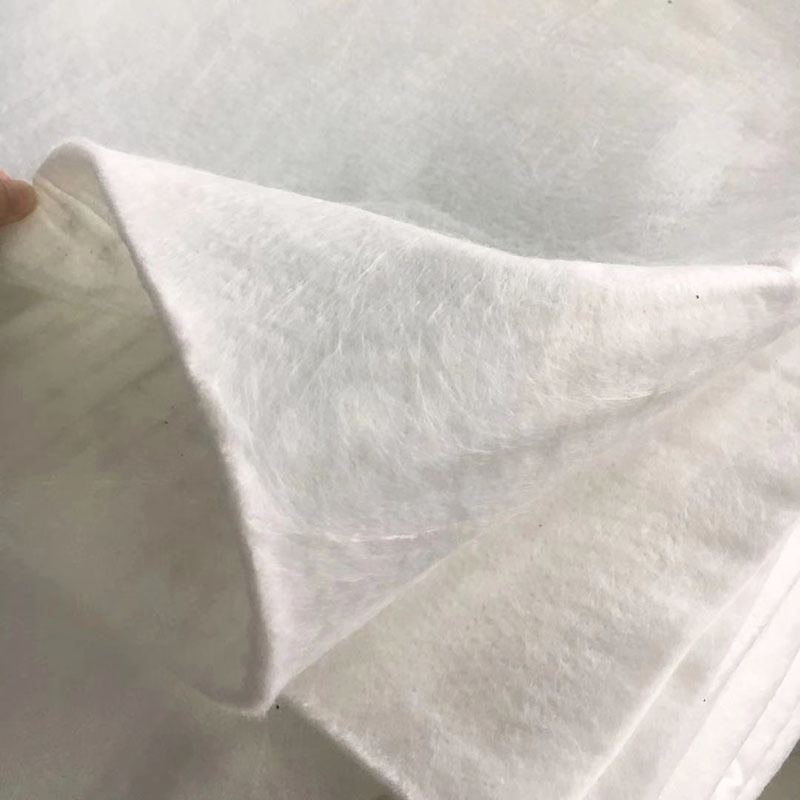

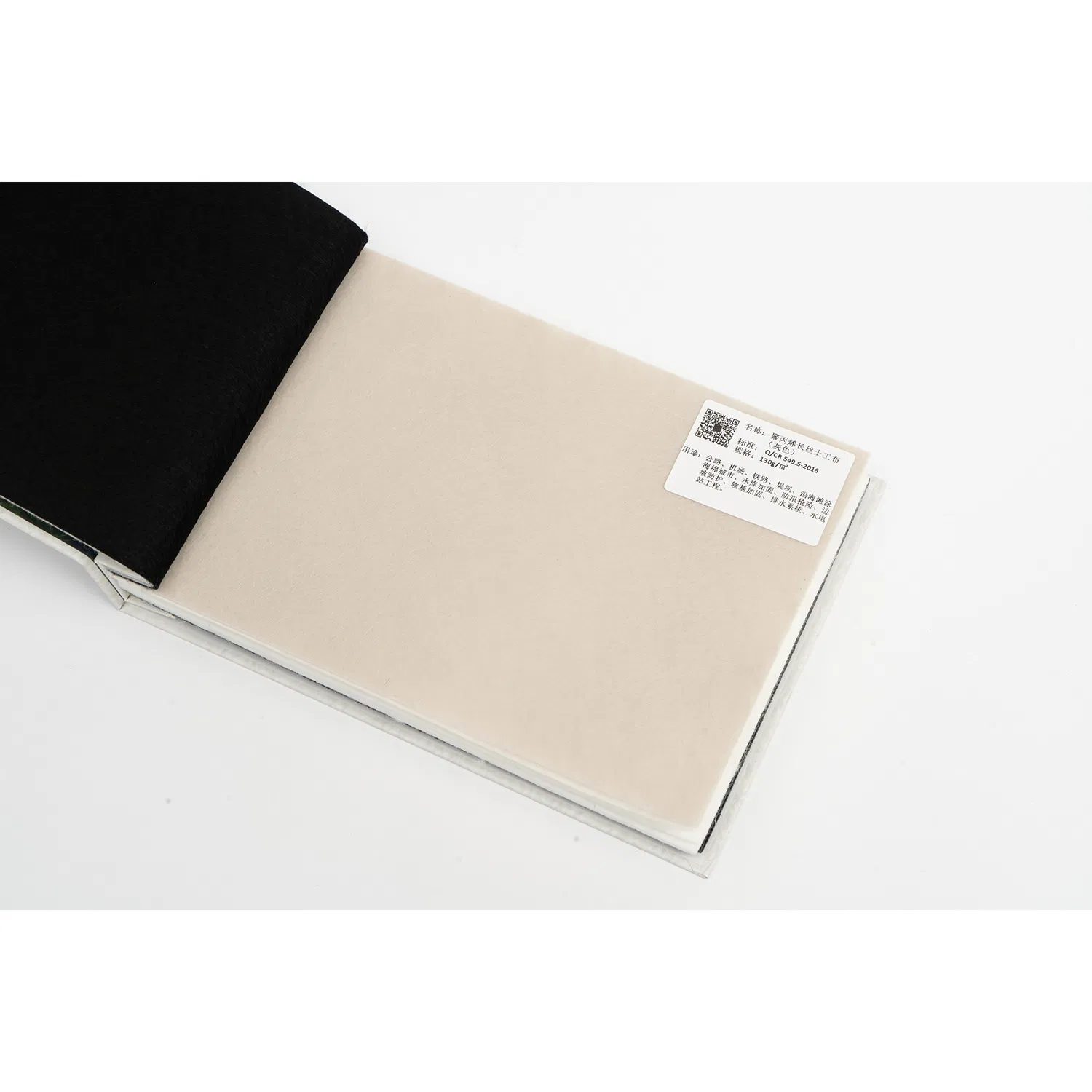

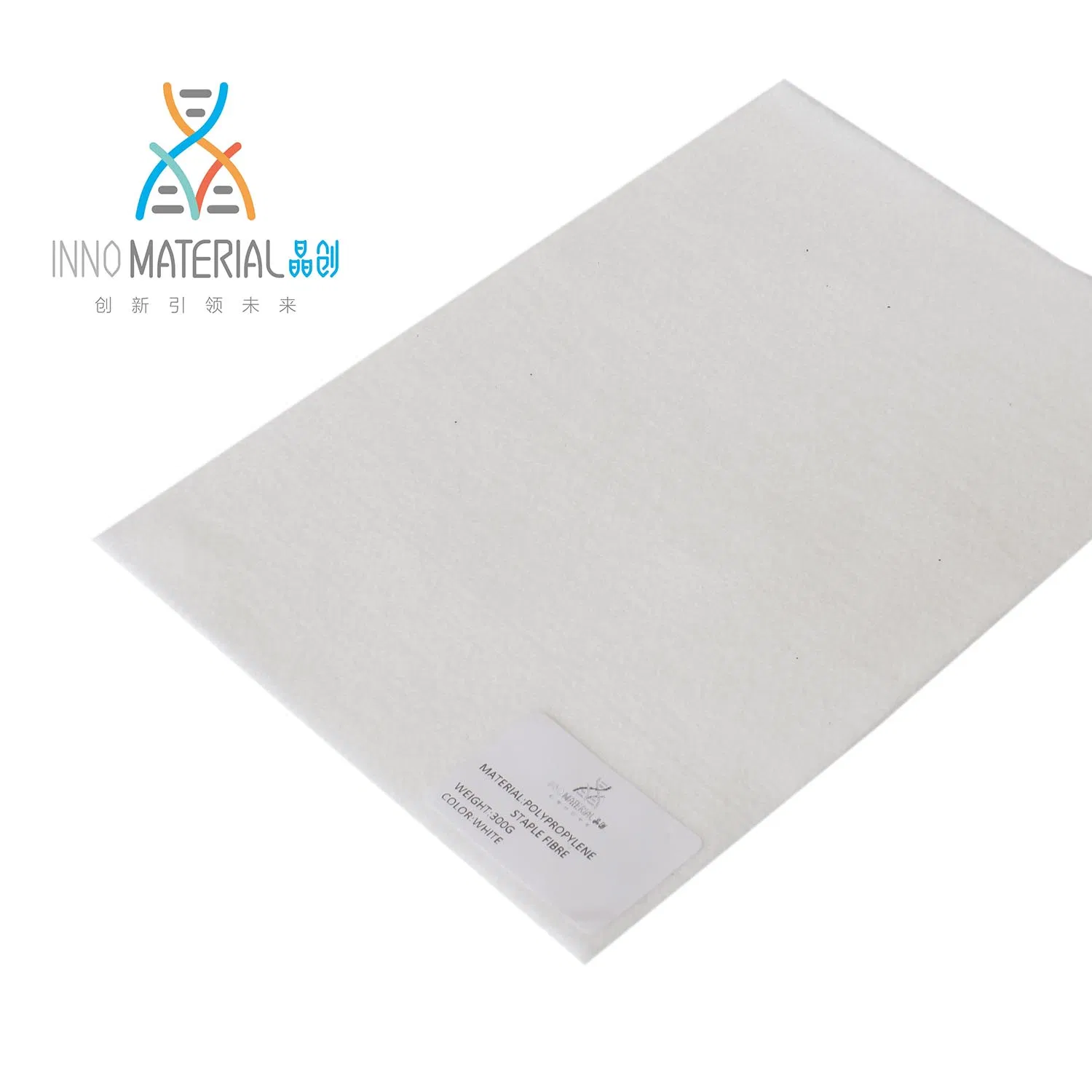

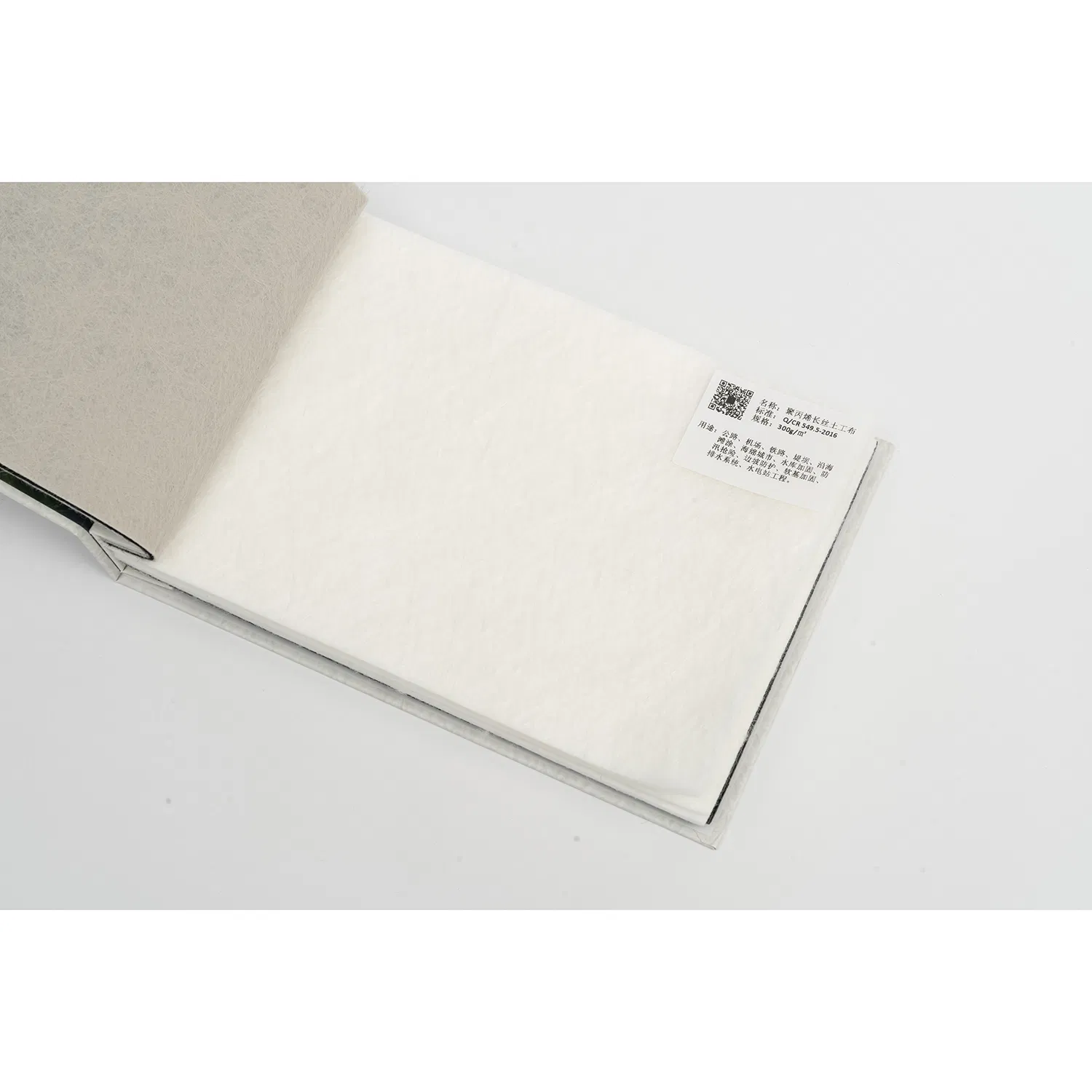

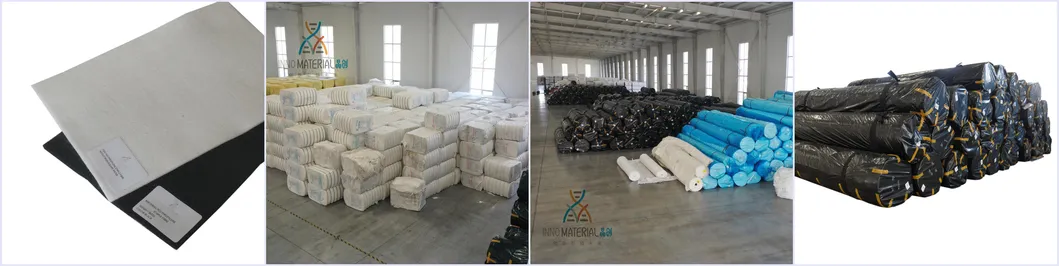

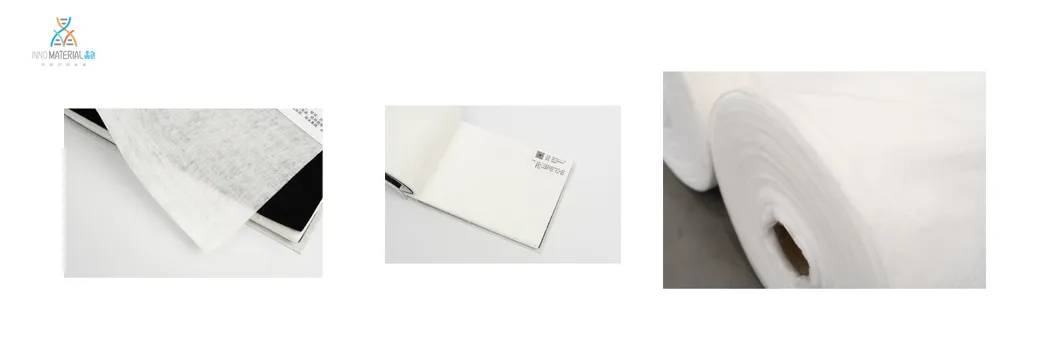

Product Display
Core Functions & Applications
1. Isolation: Prevents mixing of different soil layers to maintain structure.
2. Filter: Excellent permeability that intercepts soil particles while allowing water flow.
3. Drainage: Creates internal soil drainage channels for excess liquid/gas.
4. Reinforced: Enhances soil tensile strength and antideformation ability.
5. Protection: Distributes stress from external forces to prevent soil damage.
6. Closed: Forms impermeable insulation layers when used with asphalt/plastic.
Technical Data Properties
| Weight (g/m²) |
100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Thickness (mm) |
1.2 | 1.8 | 2.6 | 3.3 | 4.0 | 4.5 | 6.0 |
| Breaking Strength (≥KN) |
6 | 15 | 22 | 28 | 34 | 40 | 50 |
| CBR Burst Strength (≥KN) |
1.0 | 2.5 | 3.5 | 4.3 | 5.3 | 6.2 | 7.8 |
| Width (m) |
1 to 6.5m (Options for container transport available) |

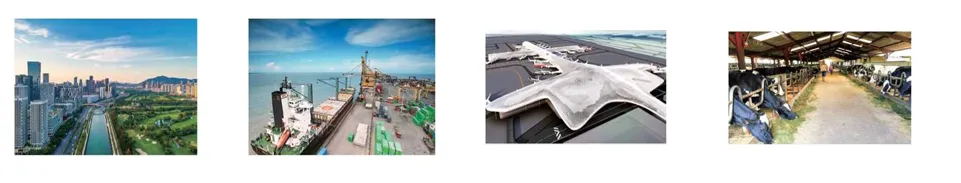

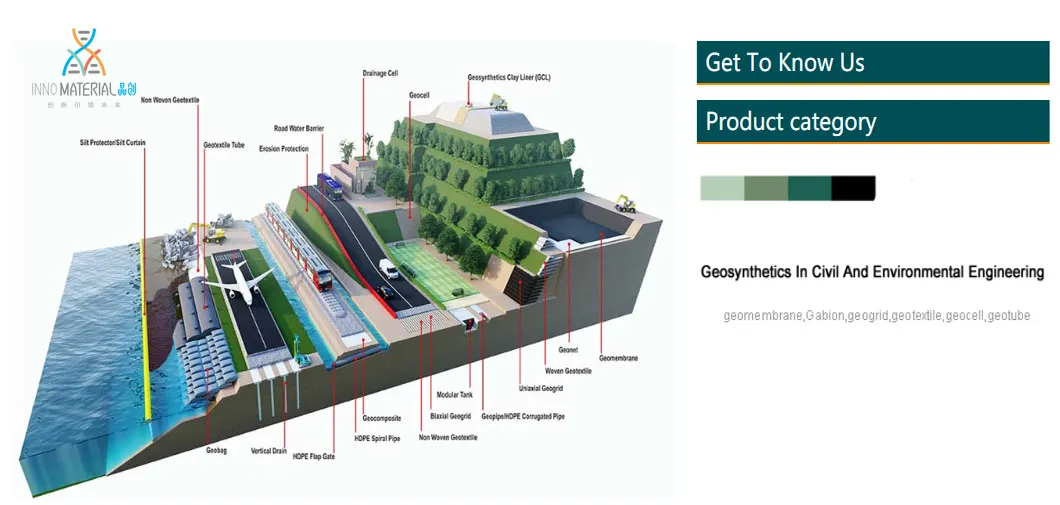

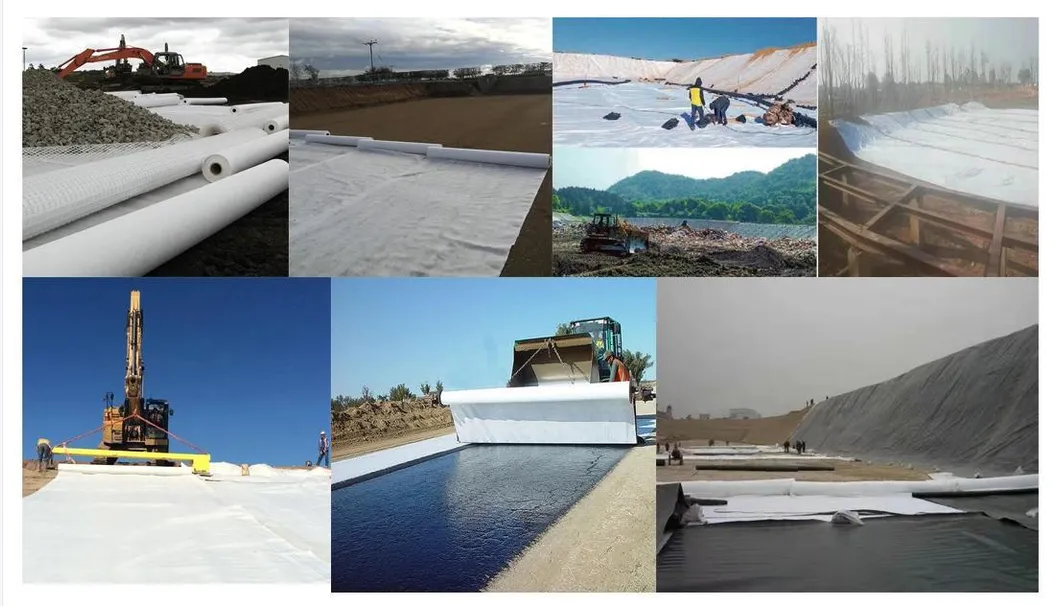

Application Scenarios
Suitable for: High-speed rail isolation layers, Airport runways, Expressway roadbeds, Sponge City pipelines, Landfill filtration, Petroleum warehouse reinforcement, and Ecological slope protection.

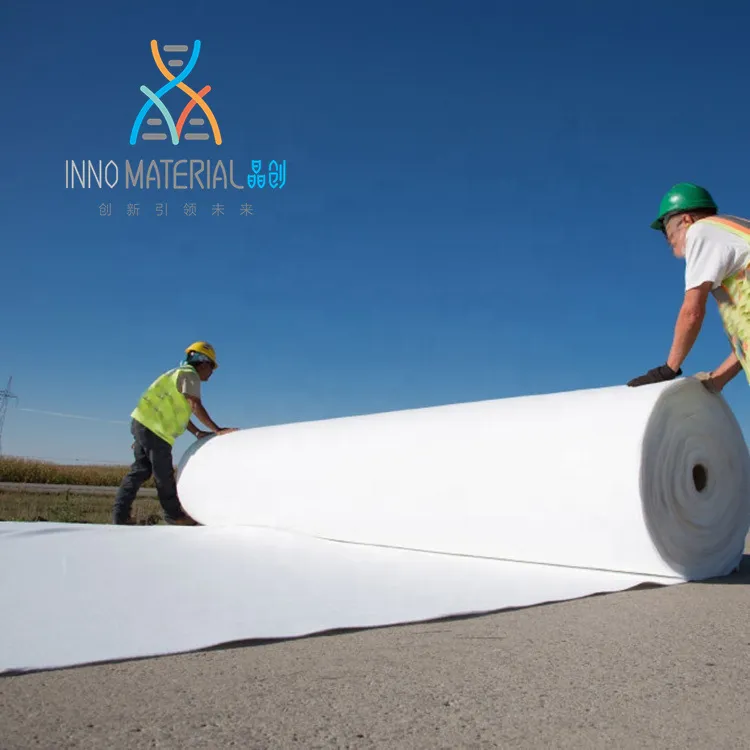

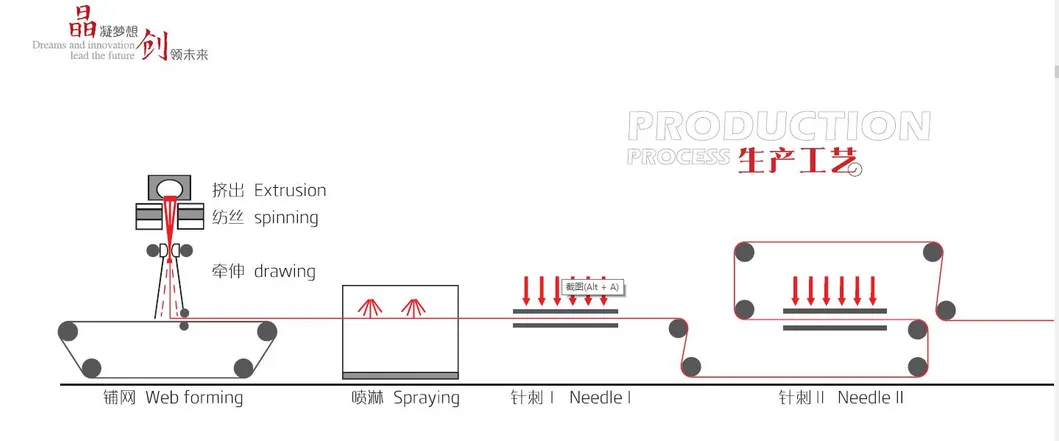

Project References & Process

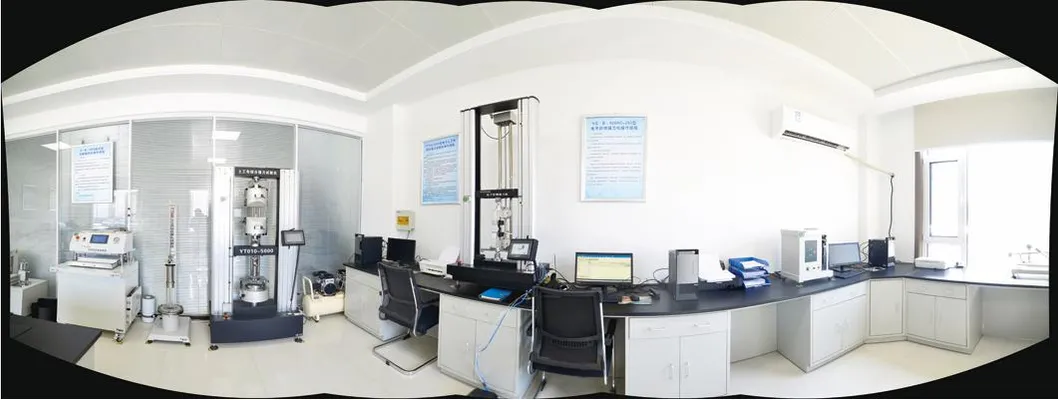

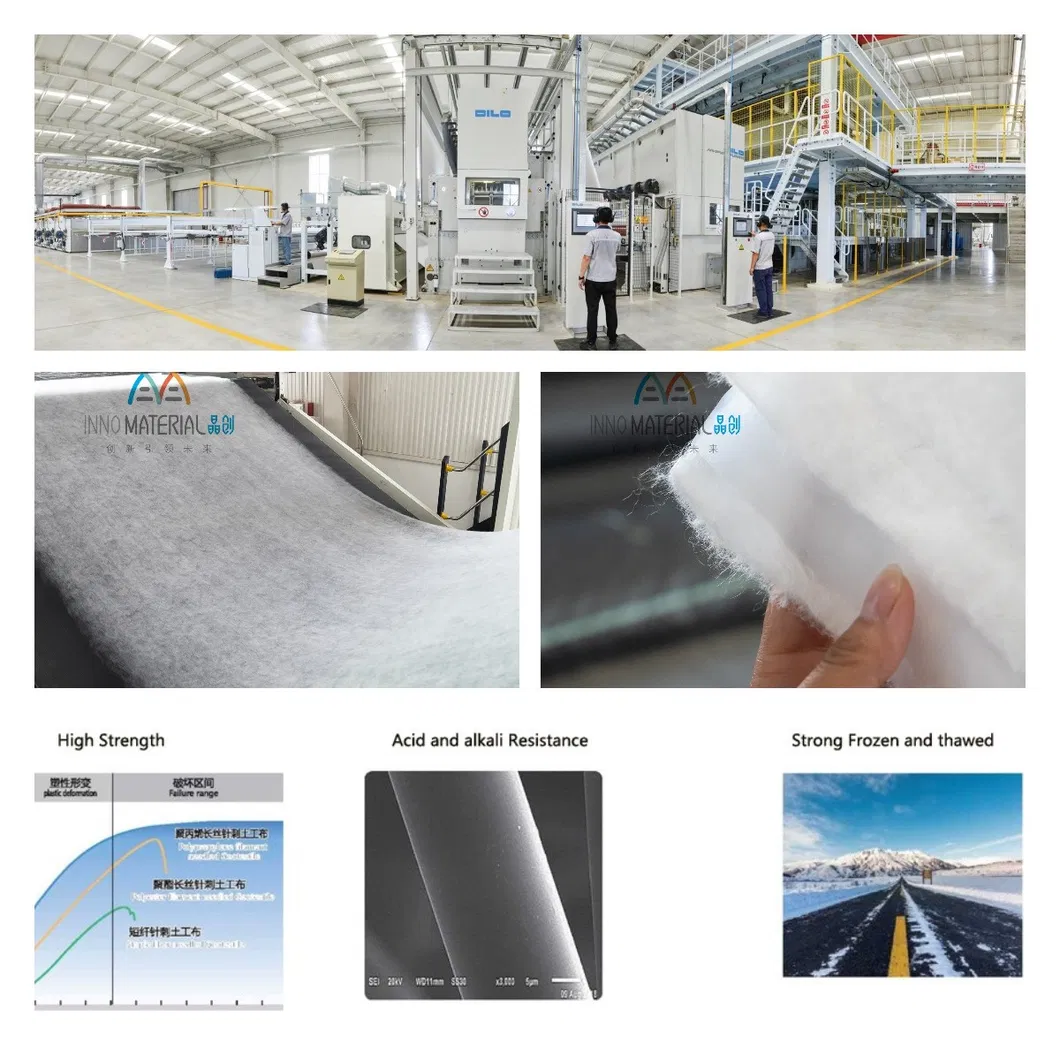

Production & Quality Control
Focusing on the research, production, and sales of high-end geosynthetics. Our production capacity for polypropylene filament geotextile reaches 50,000 tons, utilizing German-engineered Oerlikon production lines for acid and alkali-resistant products.
Frequently Asked Questions
Q: What is the maximum width of your geotextile?
A: We offer the world's first 6.5-meter-wide products, which significantly reduce splicing and construction costs.
Q: What materials are used in your filament geotextile?
A: We use high-quality polypropylene (PP) particles sourced from French TOTAL, ensuring superior acid and alkali resistance.
Q: What are the primary functions of this product?
A: Its core functions include isolation, filtration, drainage, reinforcement, protection, and creating closed impermeable layers.
Q: Is the product resistant to environmental factors?
A: Yes, it is corrosion-resistant, oxidation-resistant, and wear-resistant, solving durability issues of conventional products.
Q: What certifications do your products have?
A: Our products are CE certified and meet rigorous international standards for high-end geosynthetics.
Q: Can the length and weight be customized?
A: Yes, the length is customized per project requirements, and specifications range from 80g to 1000g.
