Basic Information
Feature
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Usage
Insulation, Waterproof, Water Filter
Properties
Good Flexibility Permeability Filtration etc

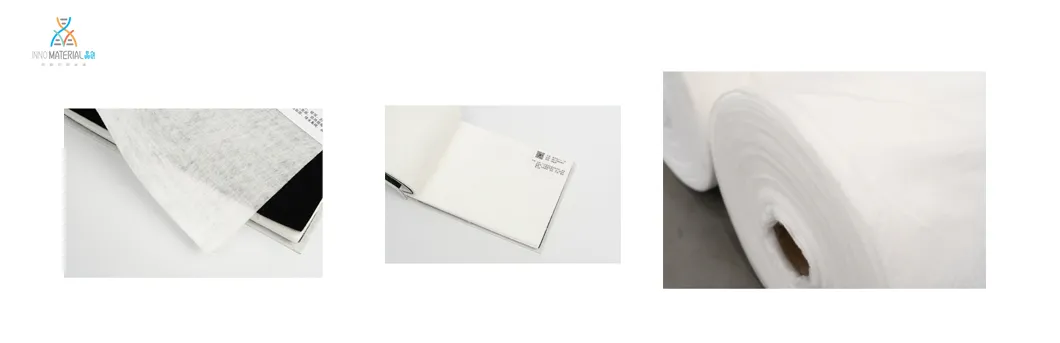

Polypropylene Filament Geotextile Advantages
🚀 Exclusive Technology: The world's first 6.5-meter-wide products. Equipment and Technology are protected in Asia regional, four years of technology exclusive.
- Cost Efficiency: Reducing splicing, enabling convenient construction and saving construction costs.
- Advanced Equipment: Process equipment adopts a complete set of automatic equipment developed by world-leading manufacturers Oerlikon and OBA.
- Premium Raw Materials: Polypropylene particles are selected from French TOTAL.
- Superior Strength: Single fiber is within 5.5-13dtex, providing stronger mechanical properties compared to same-weight products.
- Site Safety: Surface is free of floating wire and no layering, ensuring quality against wind, rain, and snow.

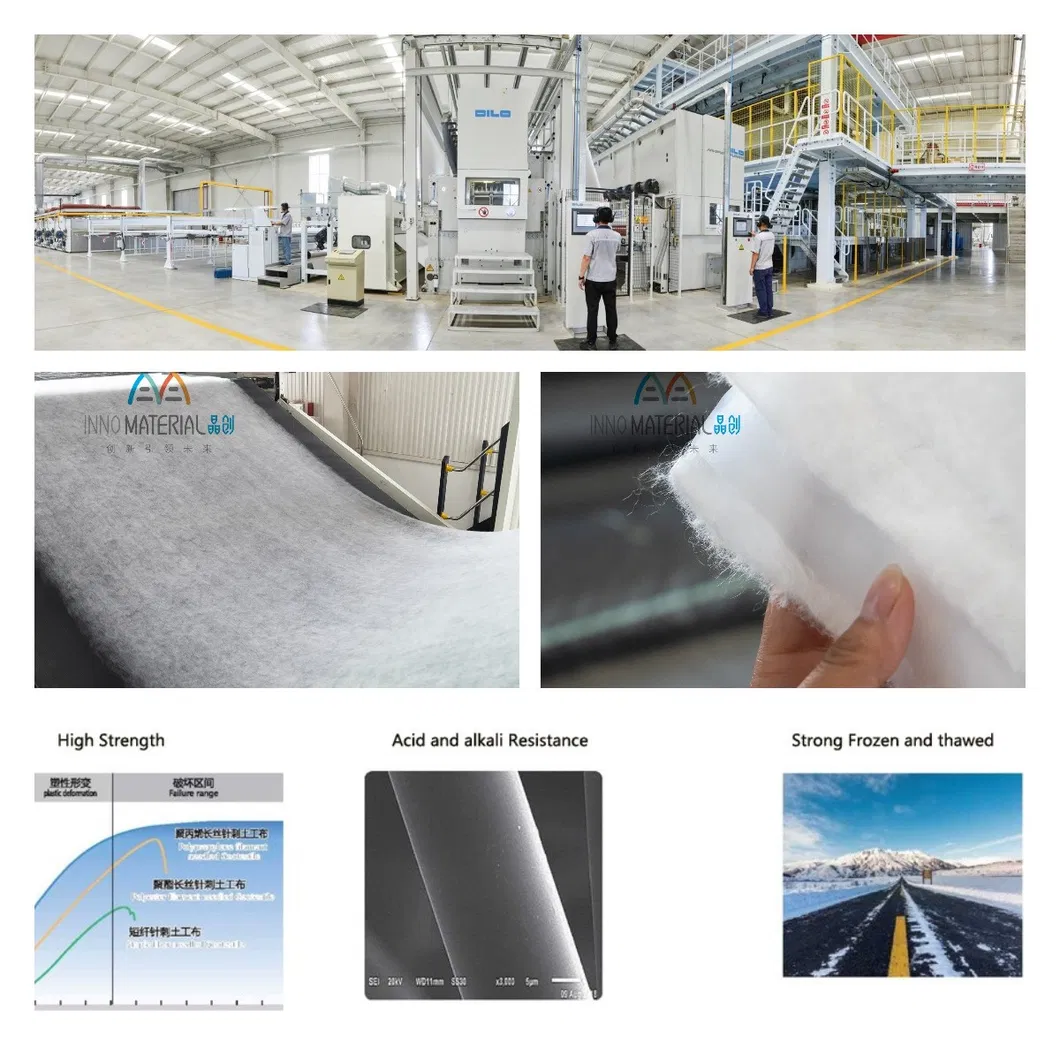

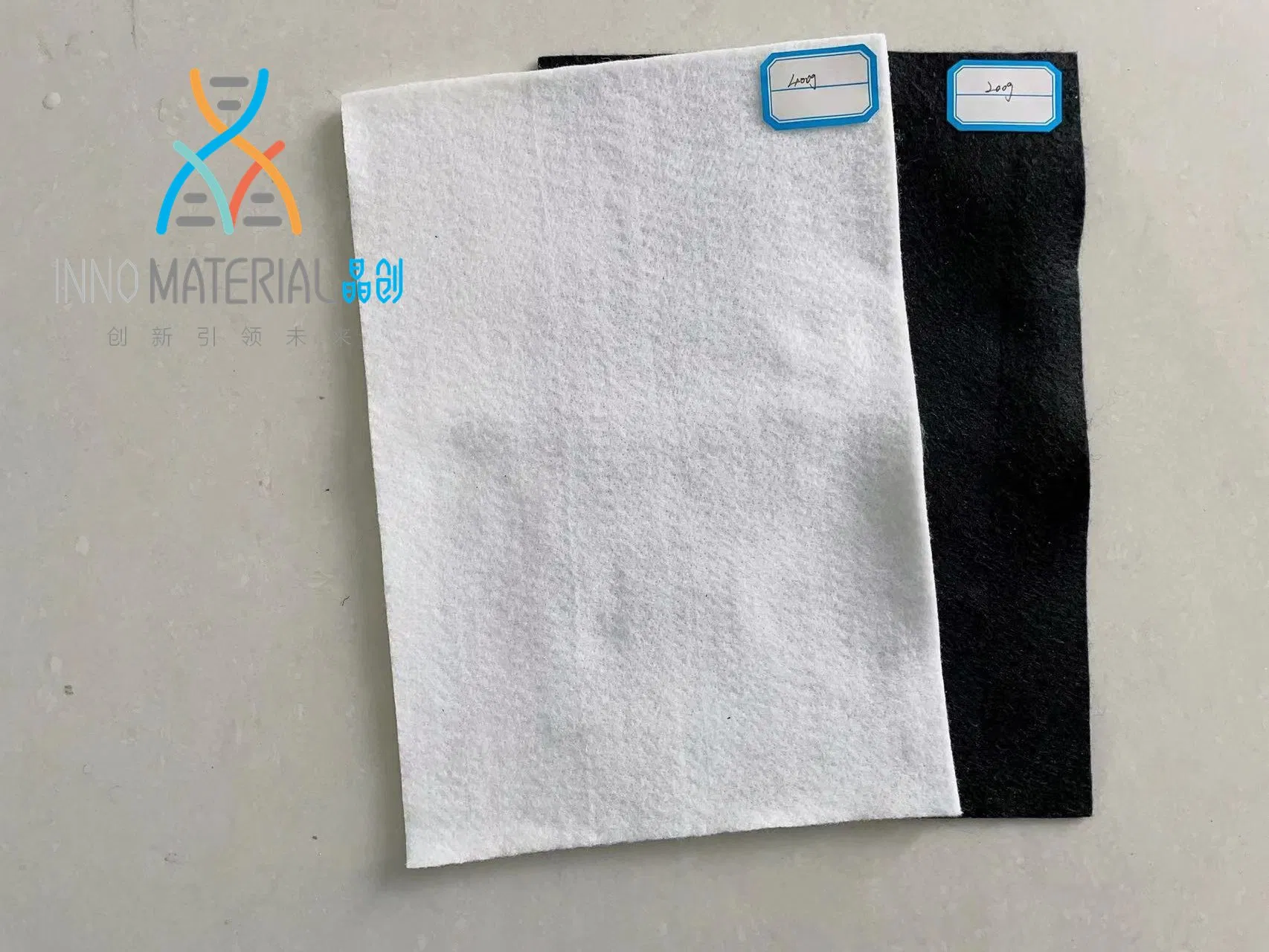

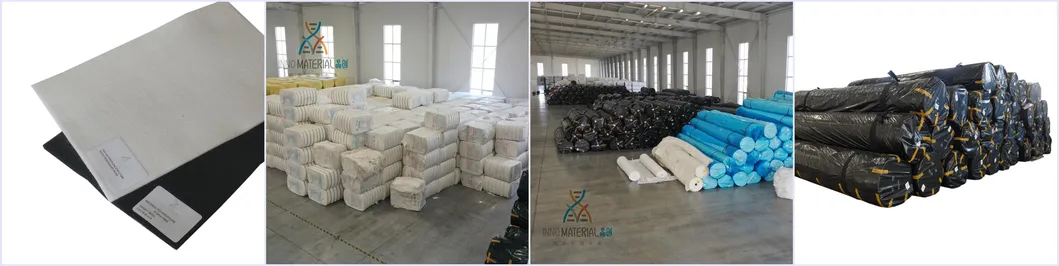

Product Display
Key Functions
1. Isolation: Prevents mixing of different soil materials to maintain structure integrity.
2. Filter: Maintains soil stability while allowing high water permeability.
3. Drainage: Acts as an internal drainage channel for soil.
4. Reinforced: Increases tensile strength and building stability.
5. Protection: Distributes external stress to prevent soil damage.
6. Closed: Forms an impermeable layer when combined with asphalt or films.
Technical Data Property
| Specification |
Values |
| Weight (g/m2) |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Thickness (mm) |
1.2 | 1.6 | 1.8 | 2.1 | 2.6 | 3.0 | 3.3 | 3.7 | 4.0 | 4.5 | 6.0 |
| Breaking Strength (≥KN) |
6 | 11 | 15 | 19 | 22 | 25 | 28 | 31 | 34 | 40 | 50 |
| CBR Bursting (≥KN/m) |
1.0 | 1.7 | 2.5 | 3.0 | 3.5 | 3.9 | 4.3 | 4.8 | 5.3 | 6.2 | 7.8 |

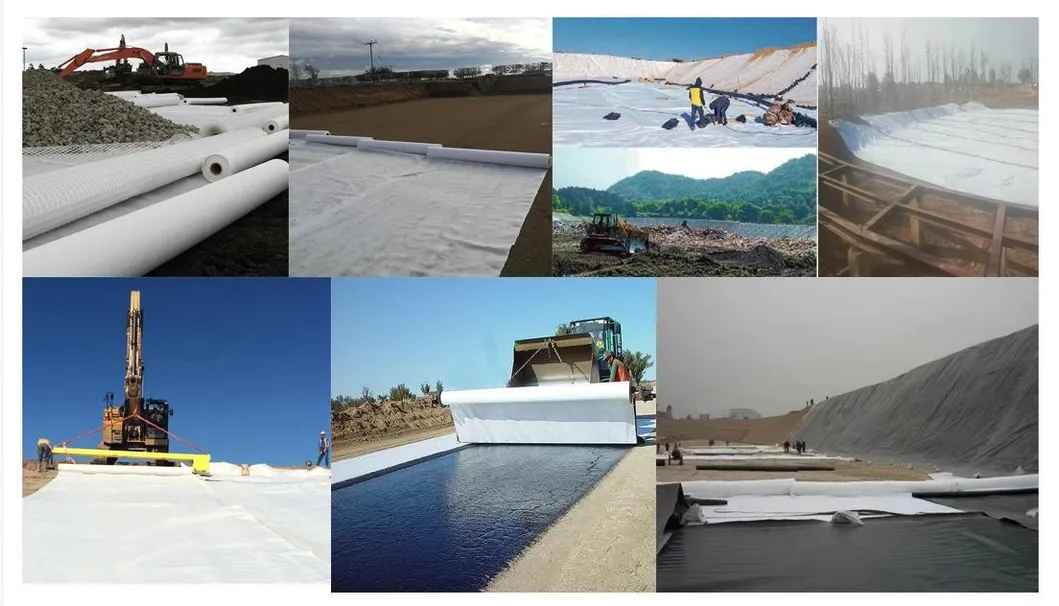

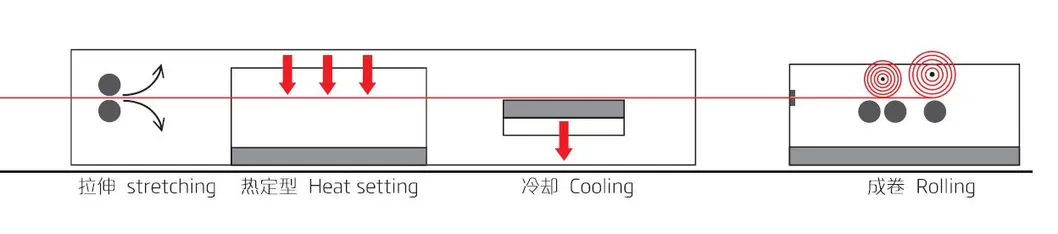

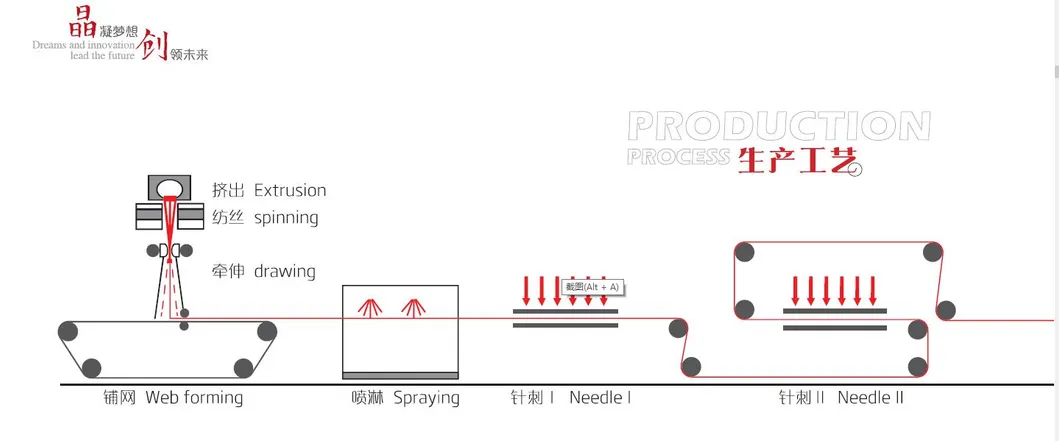

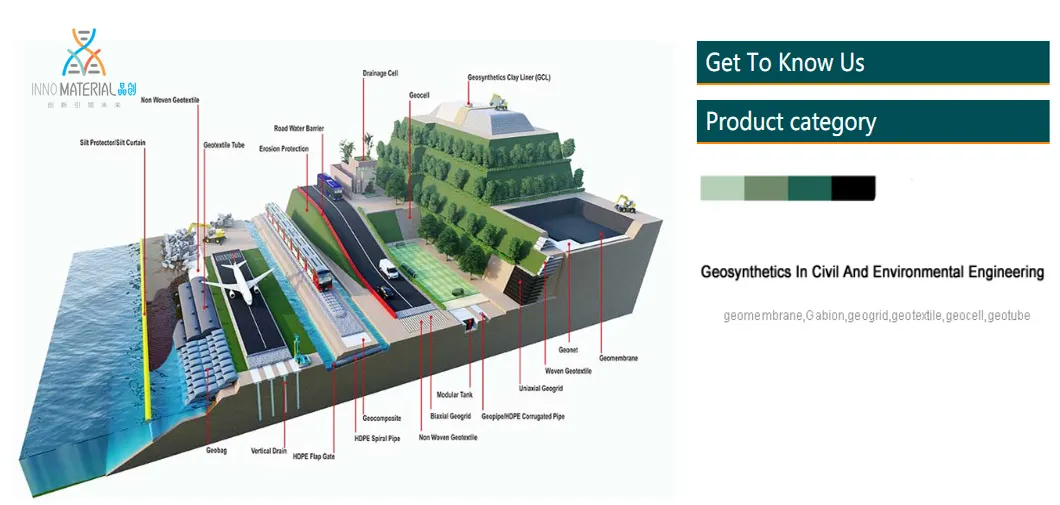

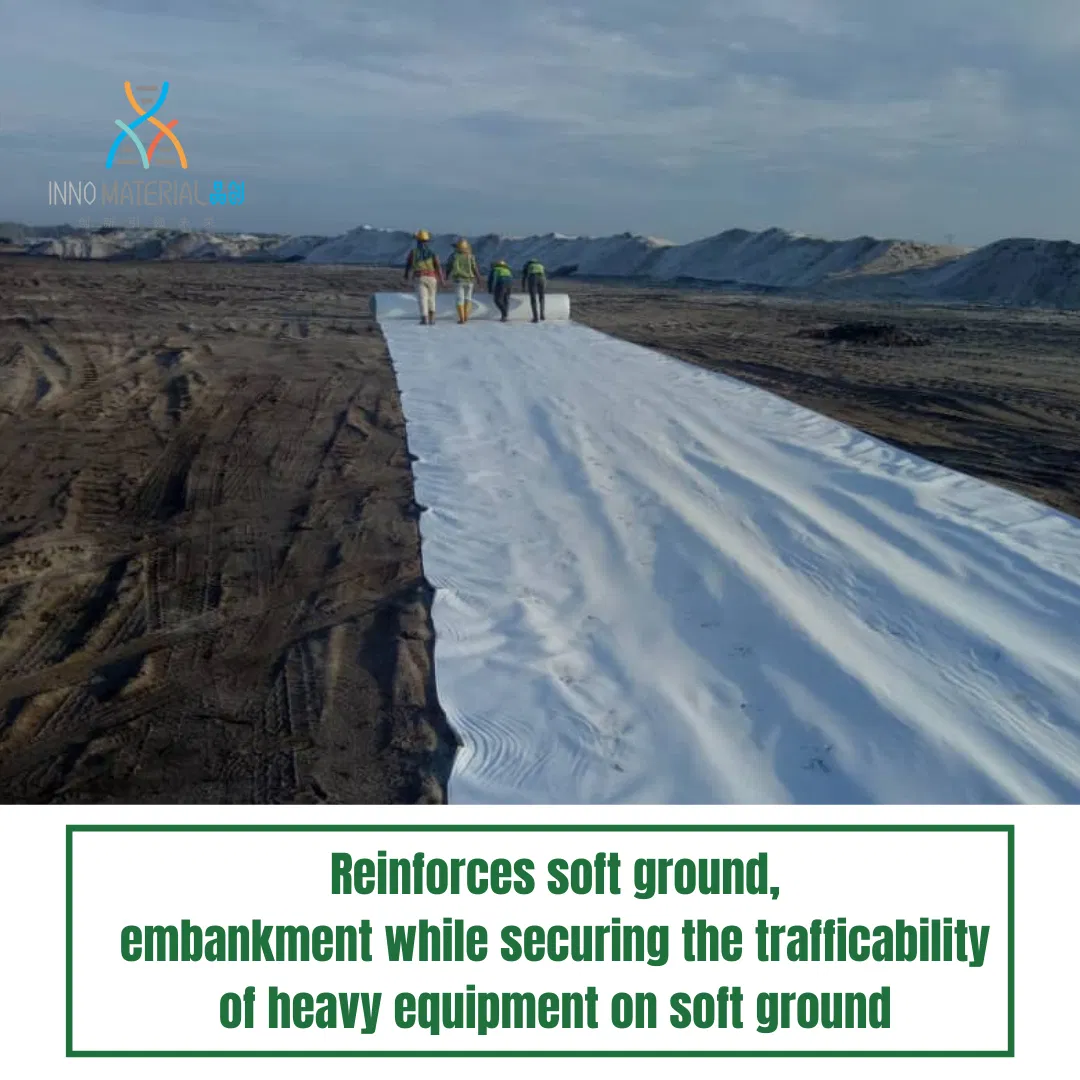

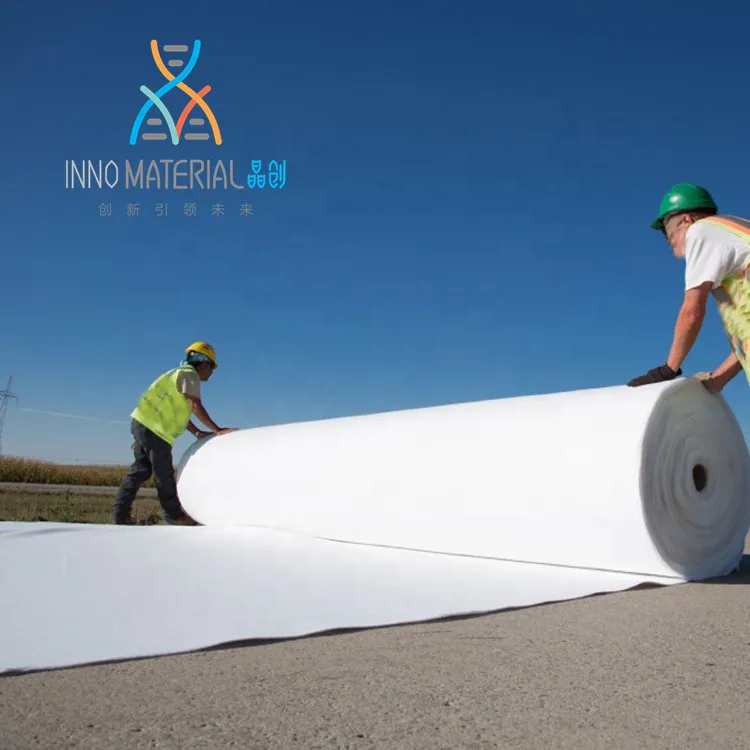

Applications & Process
• High-speed rail sliding layers
• Airport runways and aprons
• Expressway roadbeds
• Port and wharf reinforcement
• Sponge City pipelines
• Sewage treatment & Landfills
• Farmland irrigation
• Ecological slope protection

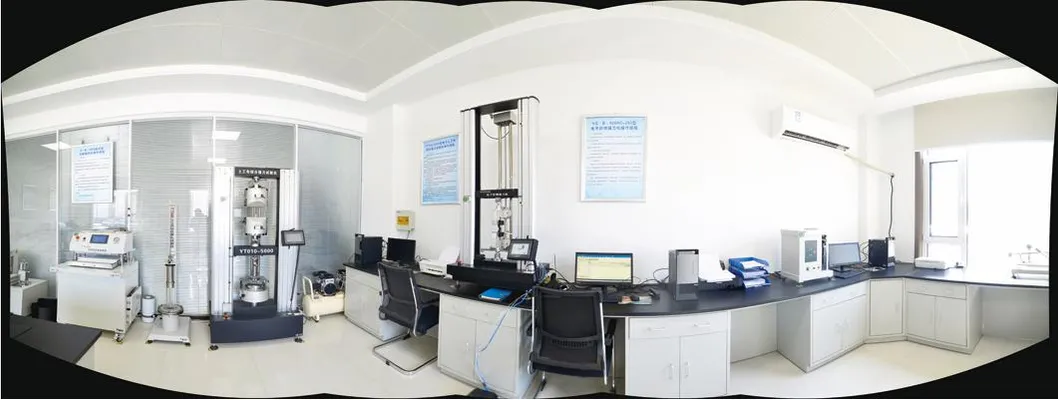

Quality & Certificates
Frequently Asked Questions
Q: What is the maximum width available for the geotextile?
A: We offer the world's first 6.5-m-wide products, which significantly reduce splicing and construction costs.
Q: What materials are used in your filament geotextile?
A: We use high-quality polypropylene (PP) particles selected from top global petrochemical companies like French TOTAL.
Q: What are the primary functions of this product?
A: It serves six major functions: Isolation, Filtration, Drainage, Reinforcement, Protection, and forming a Closed impermeable layer.

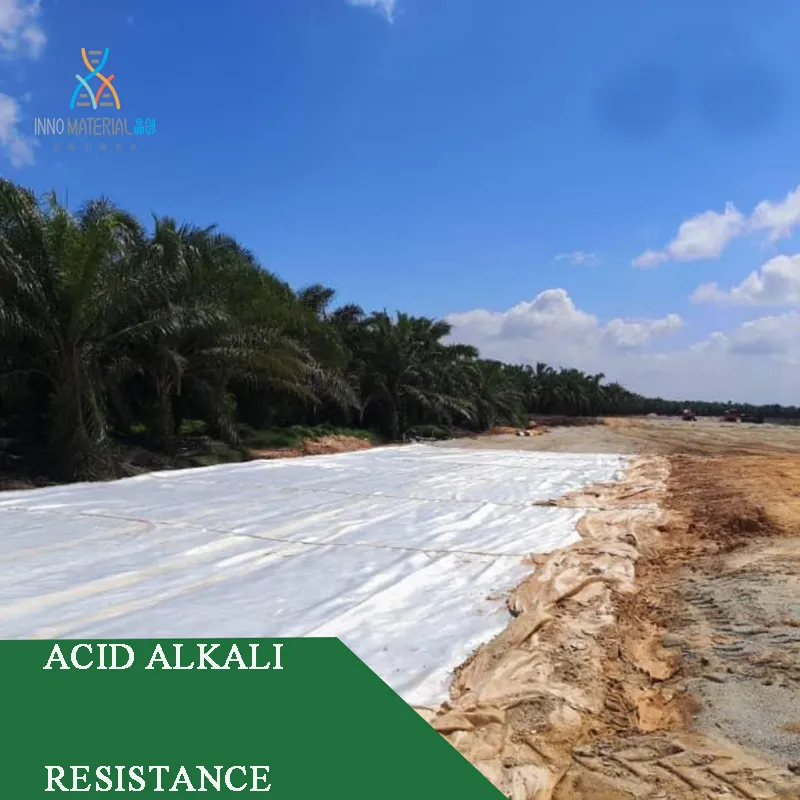

Q: Is the product resistant to environmental corrosion?
A: Yes, our polypropylene filament geotextile is acid-resistant, alkali-resistant, and corrosion-resistant, ensuring a long service life.

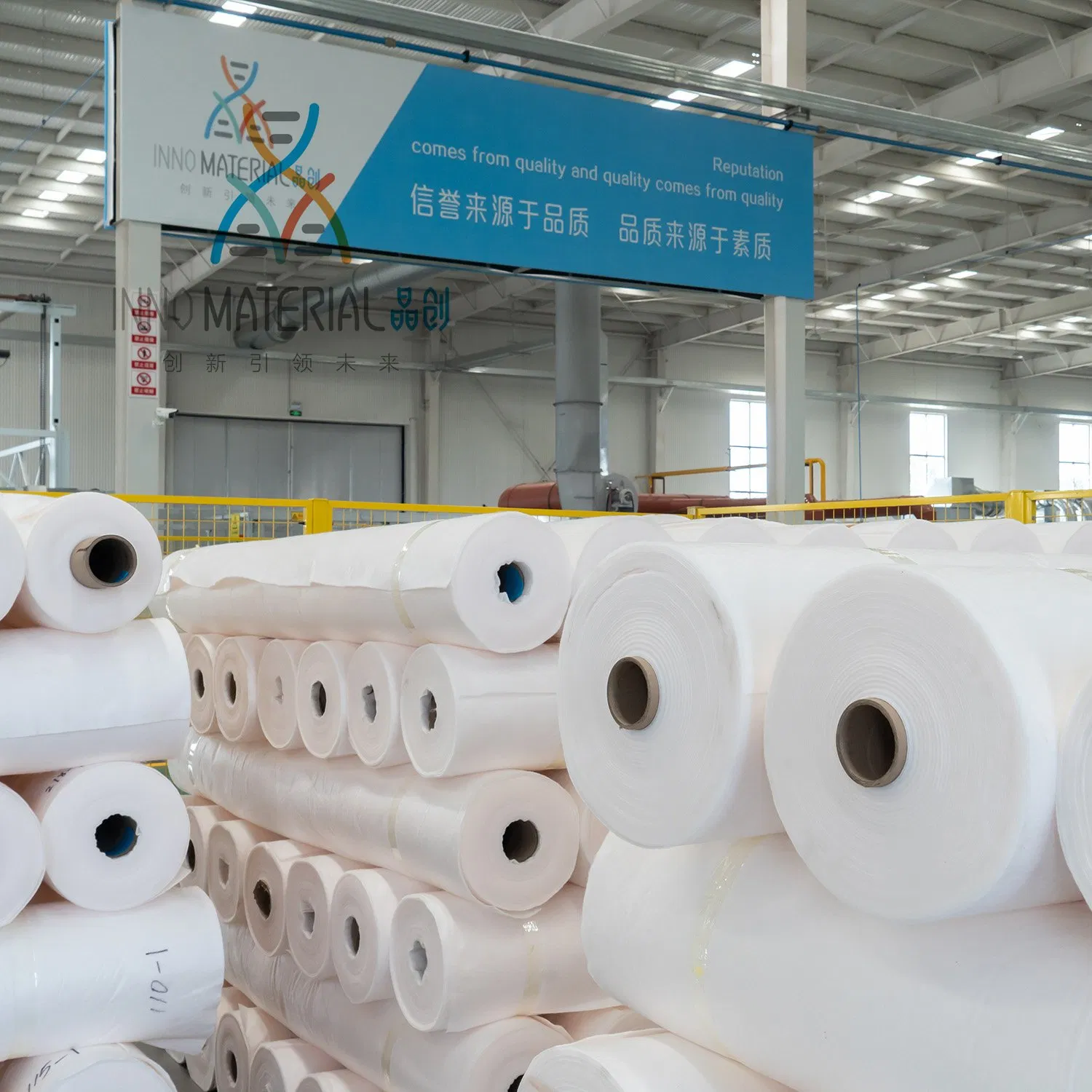

Q: What is the production capacity?
A: Our daily production capacity is approximately 50,000 sqm, depending on the specific product specifications.
Q: Does the product handle steep slopes well?
A: Yes, the surface is designed to prevent layering or splicing issues caused by wind, snow, or steep slopes, ensuring project safety.
