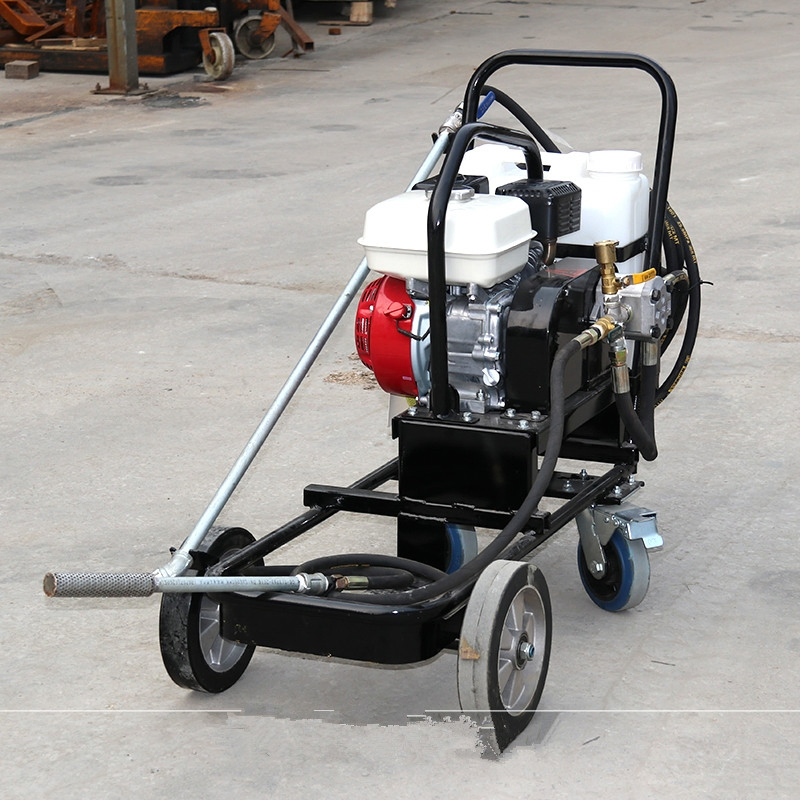

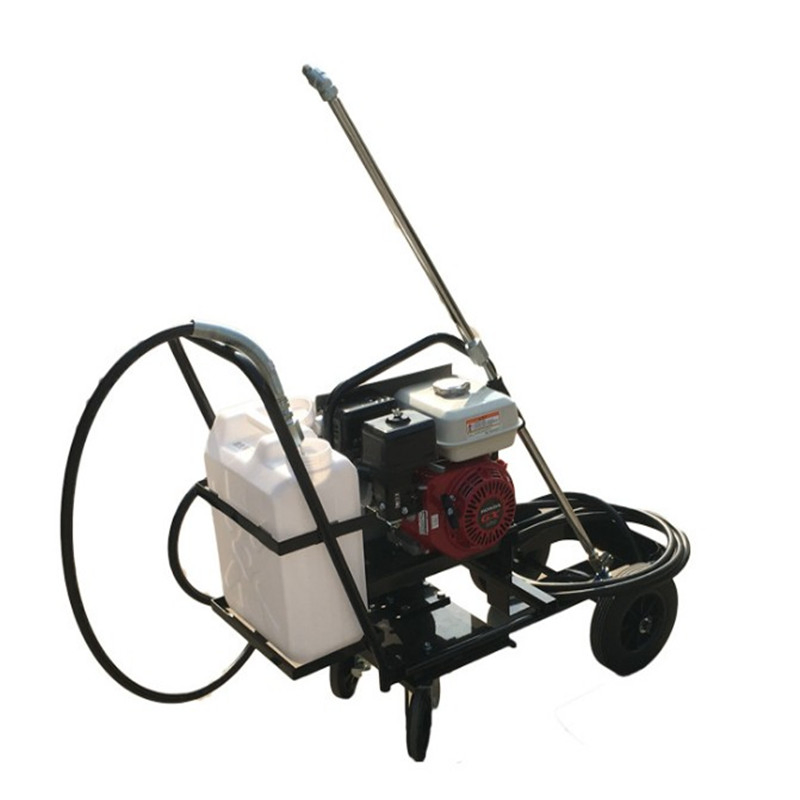

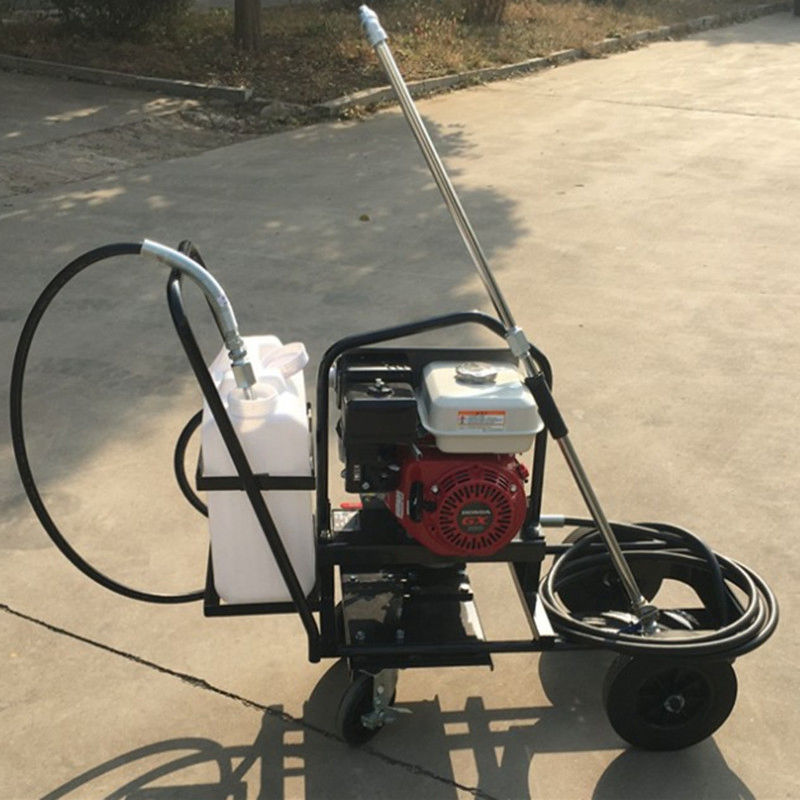

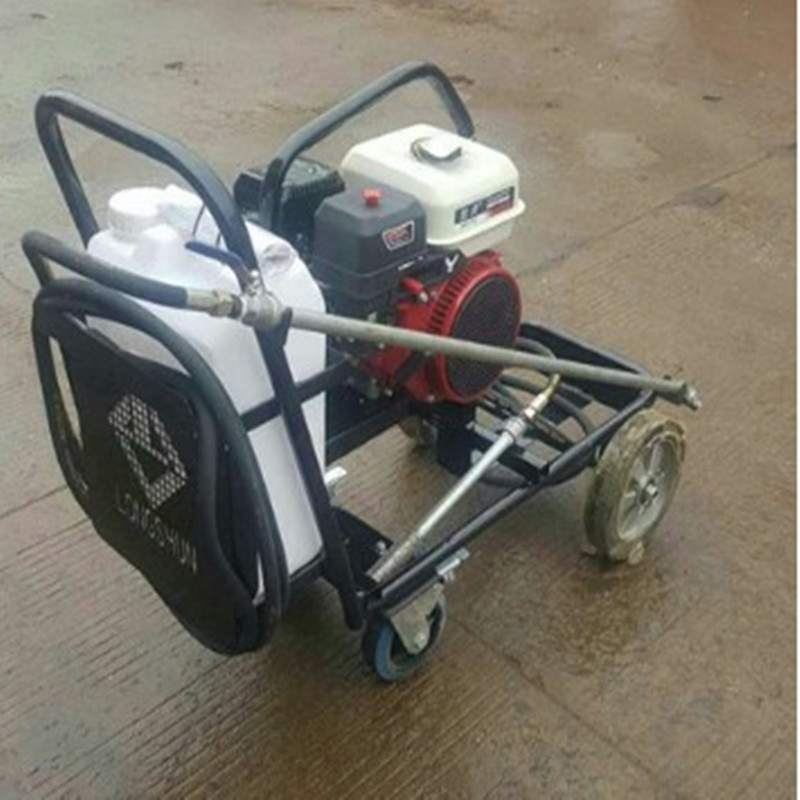

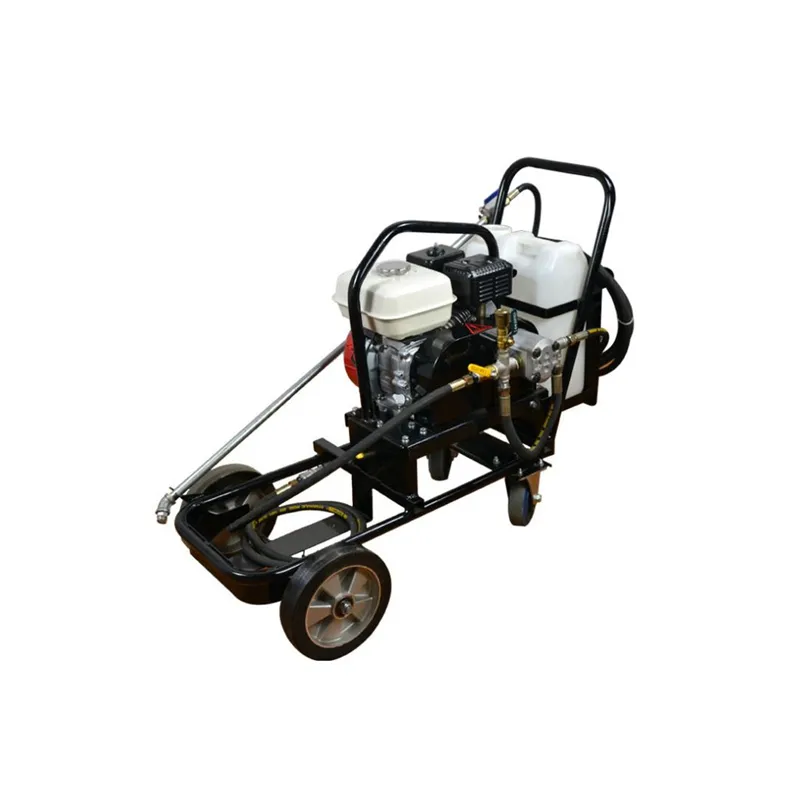

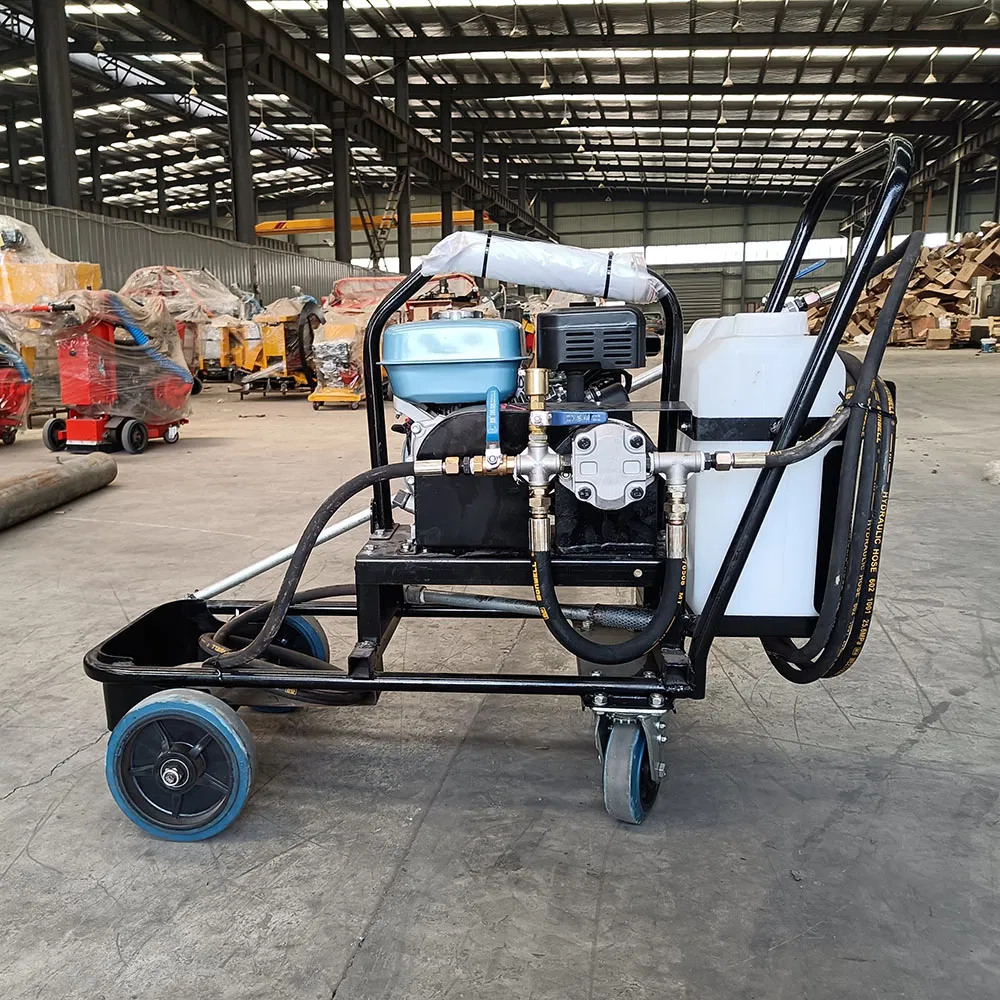

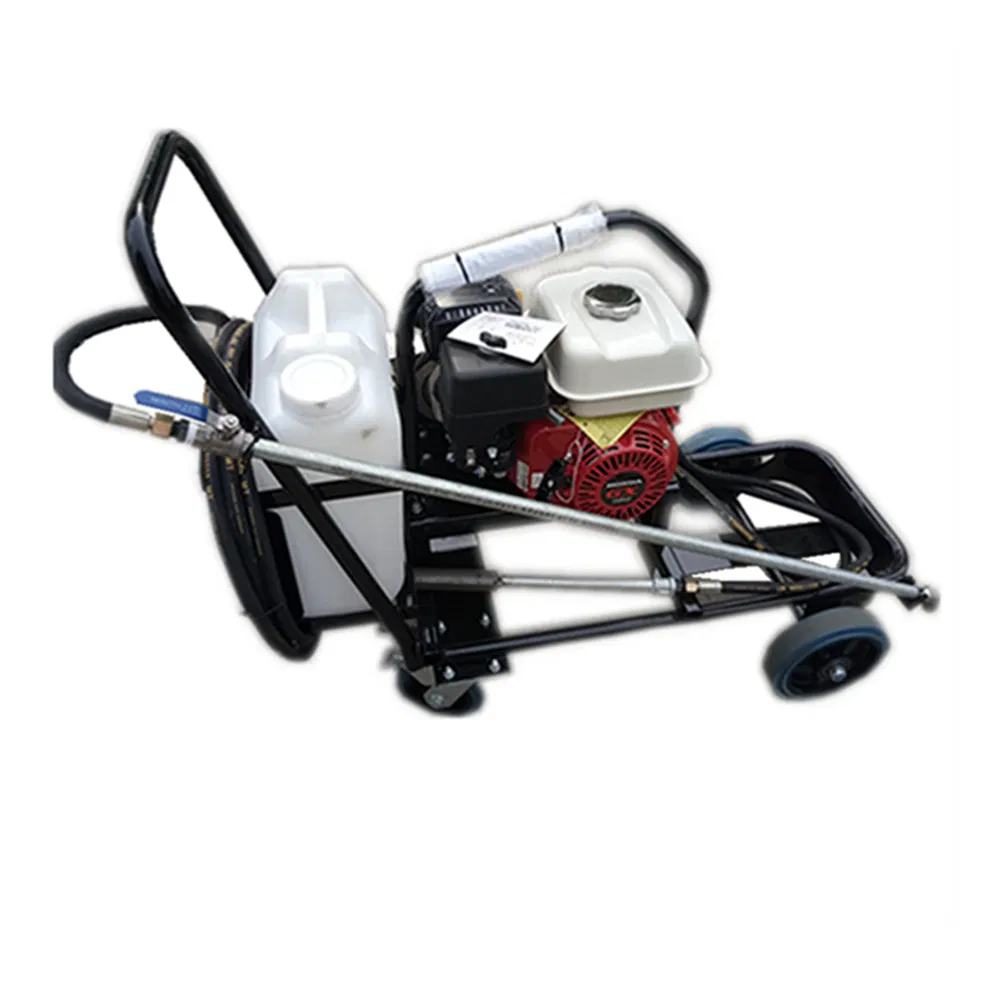

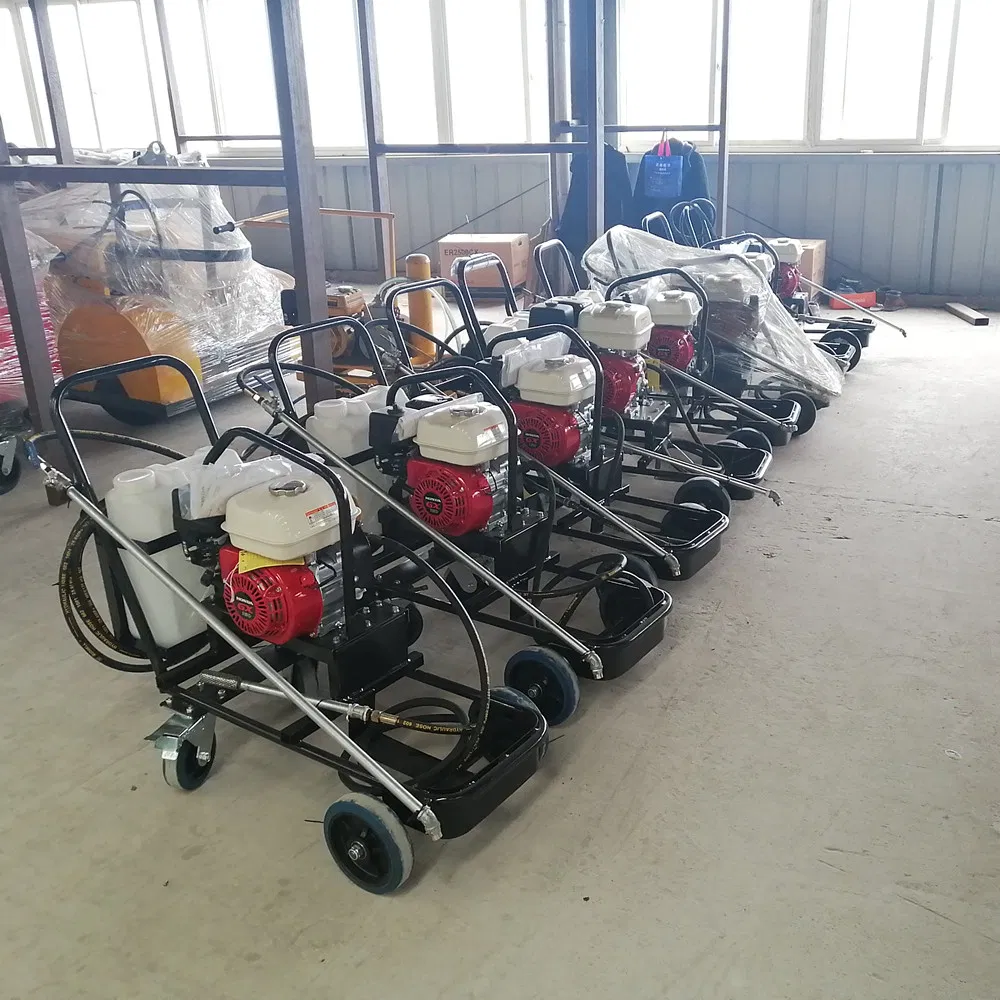

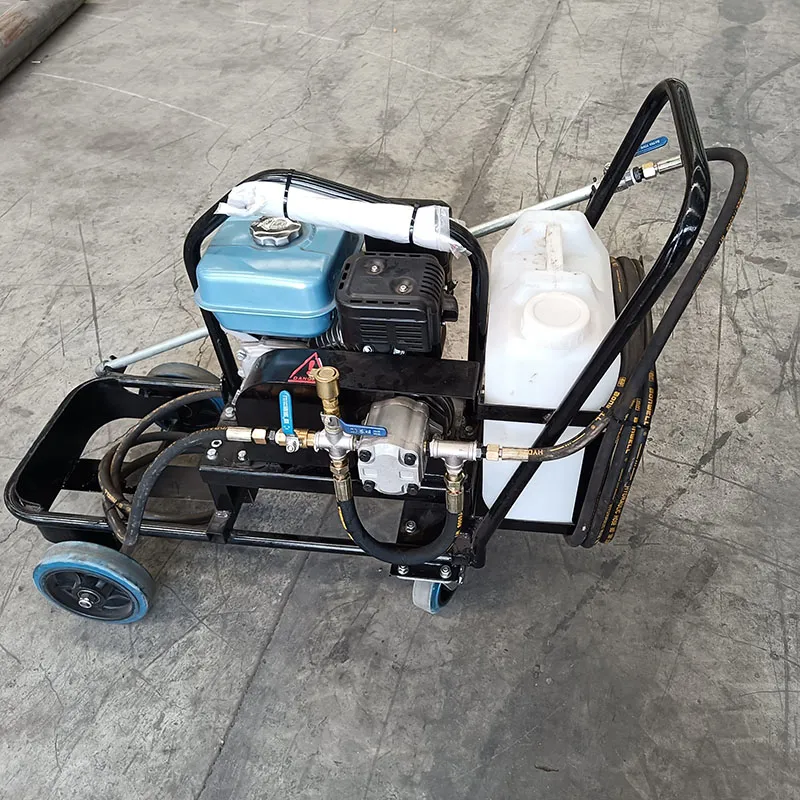

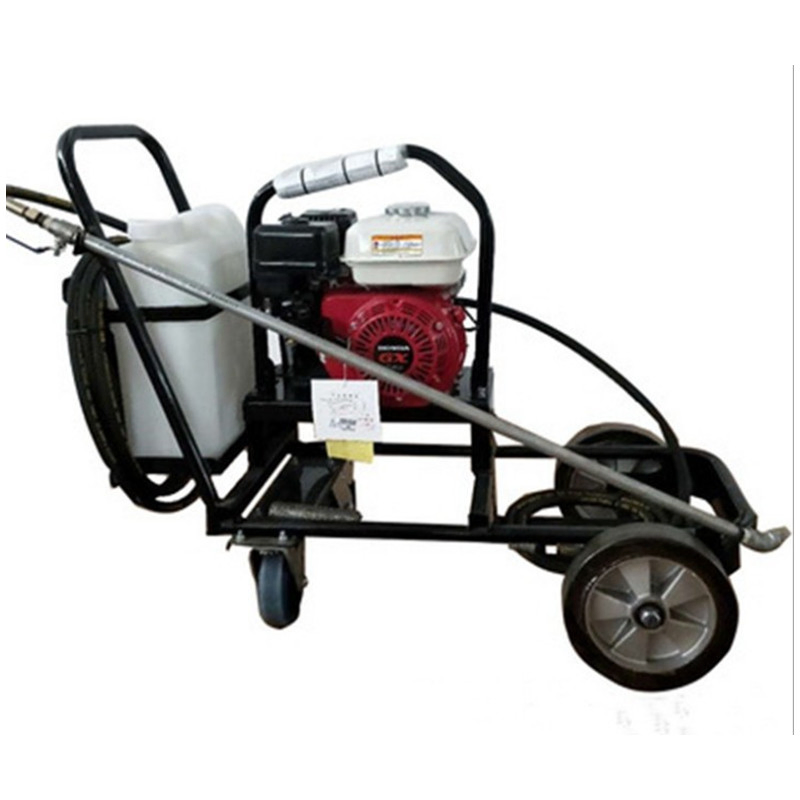

Small type Flexible Emulsion Spraying Machine
This equipment is specialized for repairing pits, cracks, or surface spraying of aging pavement. It ensures even distribution of emulsified asphalt or waterproof materials, essential for modern road maintenance.
Key Features:
✔ Light weight, flexible and easy to move.
✔ Simple operation process, quick to learn.
✔ High efficiency with uniform spraying.
✔ Integral lubrication and cleaning valve design.
✔ External safety valve for easier maintenance.
| Model | LS-310 |
| Power | 7HP (5KW) gasoline engine |
| Gear Pump | Max flow 310L/min, 1500r/min |
| Nozzle Type | Stainless steel no.8 |
| Spraying width | 500-1000mm |
| Weight | 65kg |
| Tube length | 5m |
1. Check if power oil reaches the specified level.
2. Fill fuel oil with the designated label.
3. Close oil cup valve; open inlet/outlet pipeline valves.
4. Insert nozzles into diluent (diesel/kerosene).
5. Start engine to run diluent, then switch to emulsified asphalt.
6. After work, drain bitumen and clean with diluter immediately.
❓ Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
A: We are an original equipment manufacturer specializing in road safety and pavement maintenance equipment.
Q2: What is the typical delivery time?
A: It depends on the model. Machines in stock usually take 3-5 days, while customized units take 15-30 days.
Q3: Do you provide sample machines?
A: Yes, we offer sample machines. However, they are not free, and customers are responsible for the freight and delivery costs.
Q4: What payment methods do you accept?
A: We accept T/T, Western Union, Money Gram, and Paypal. Deposit terms can be negotiated based on order volume.
Q5: Does your equipment have international certification?
A: Yes, our products are CE approved and hold CNAS certification for global market standards.
Q6: How easy is it to maintain the spraying pump?
A: The machine features an integral lubrication and cleaning valve design, making the cleaning of blocks simple and efficient.
