Basic Specifications
Model NO.:ASTM
Color:White
Certification:CE
Feature:Corrosion Resistant, Wear-resistant
Material:PP (Polypropylene)
Width:1-6.5m
Properties:Flexibility, Permeability, Filtration
Capacity:50,000 sqm/Day
Polypropylene Filament Geotextile Advantages
World's First 6.5-Meter-Wide Technology
Our equipment and technology are protected with exclusive rights in the Asia regional, featuring four years of technology exclusivity.
- Optimized Construction: Reduces splicing, enabling convenient construction and significantly saving costs.
- Advanced Equipment: Utilizes a complete set of automatic equipment newly developed by world-leading textile manufacturers Oerlikon and OBA.
- Premium Raw Materials: Polypropylene particles are selected from French TOTAL, a global petrochemical leader.
- Superior Mechanical Properties: Single fiber within 5.5-13dtex, providing stronger mechanical performance than standard products.
- Project Safety: Surface is free of floating wires with no layering; resists splicing failures caused by wind, rain, or steep slopes.

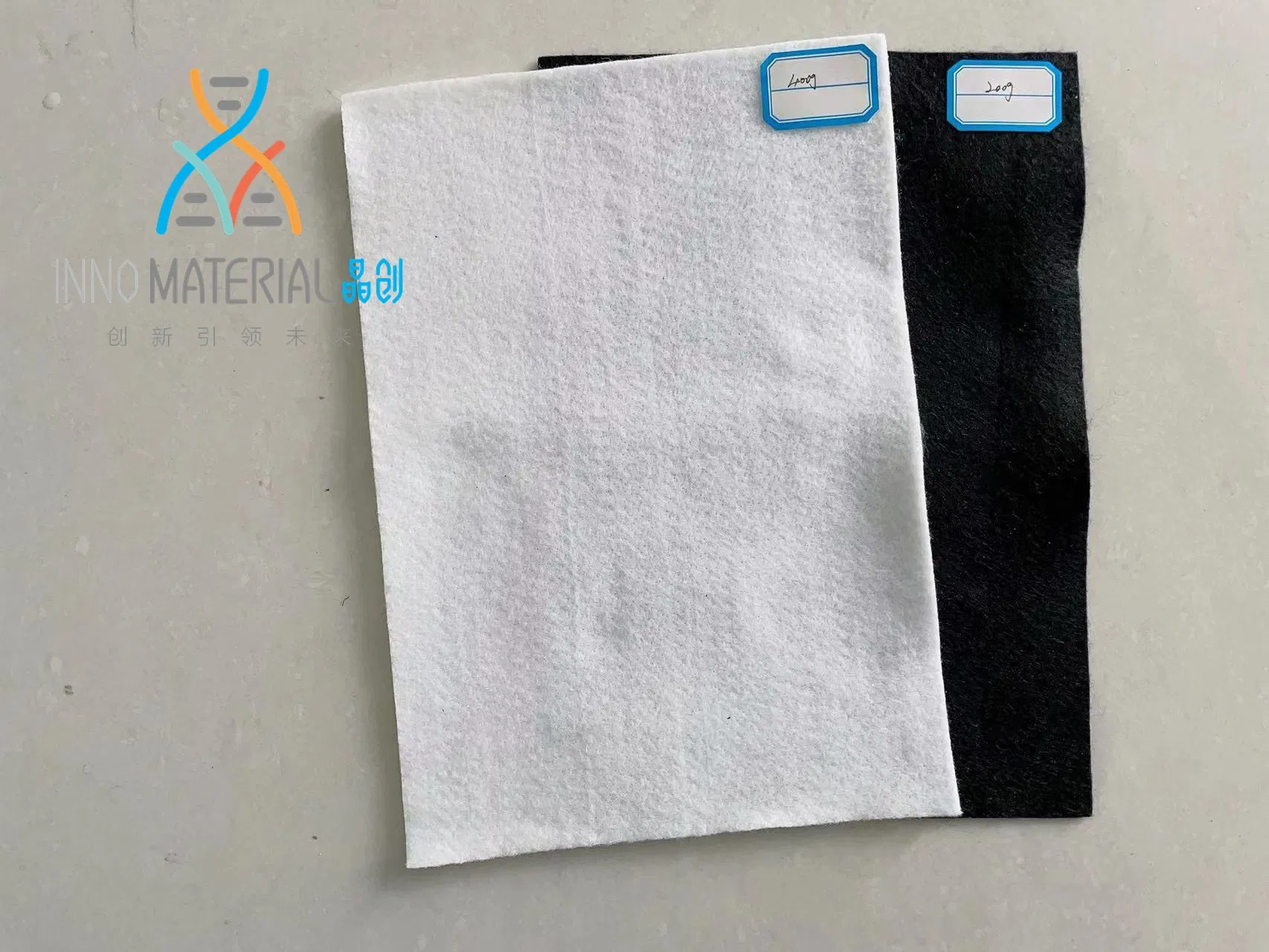

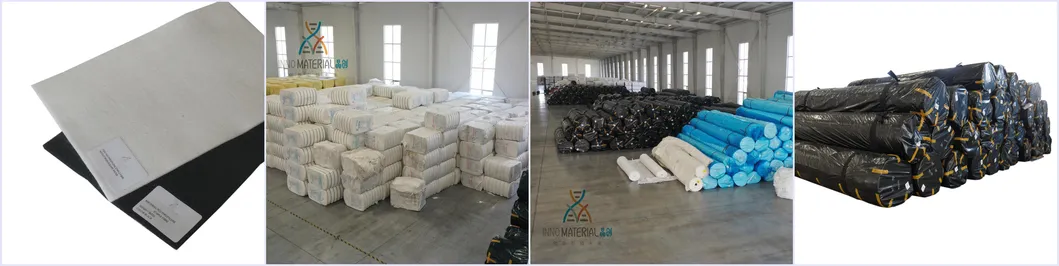

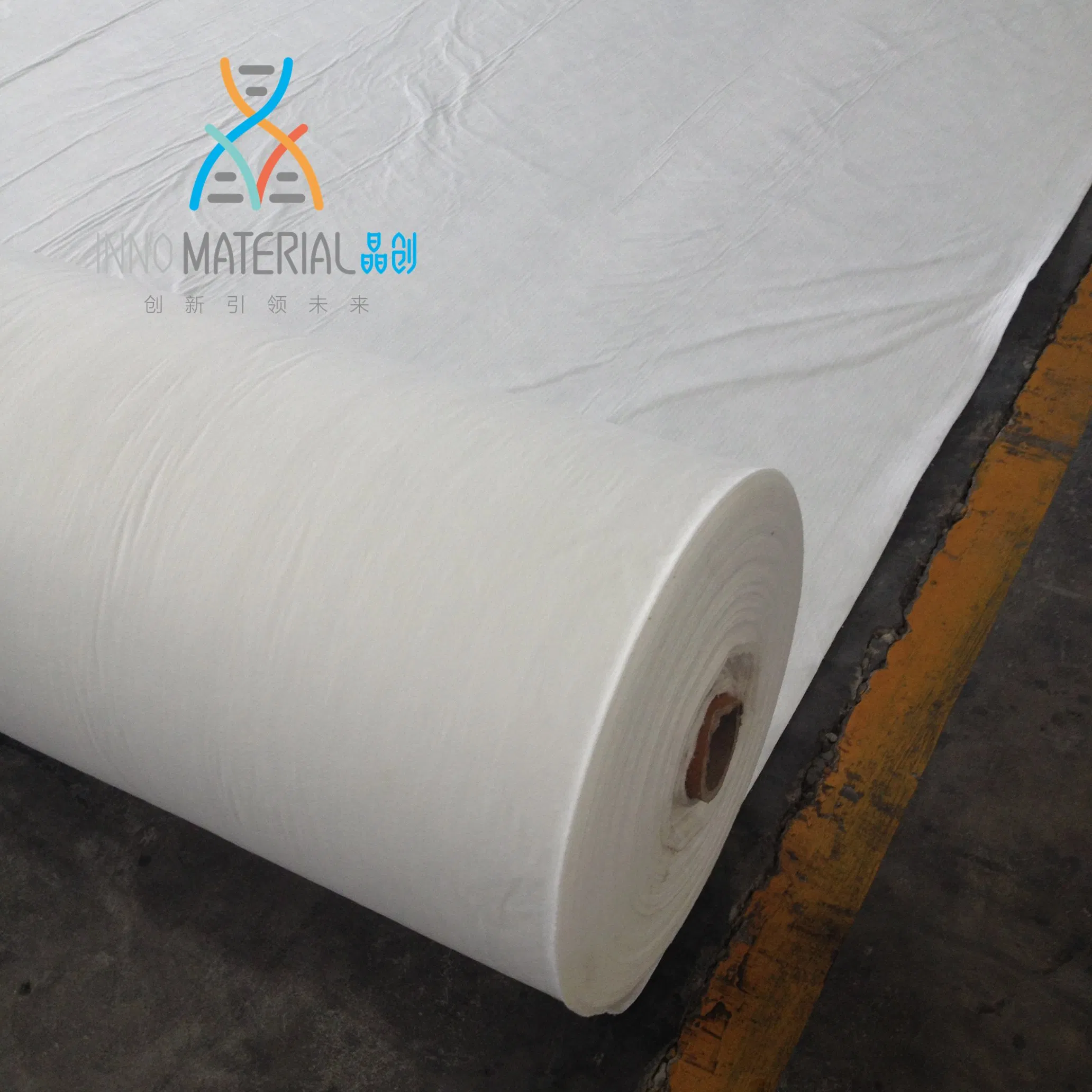

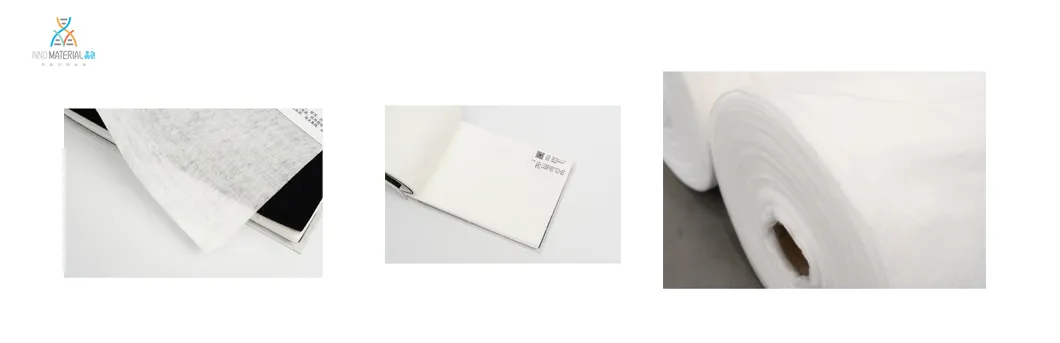

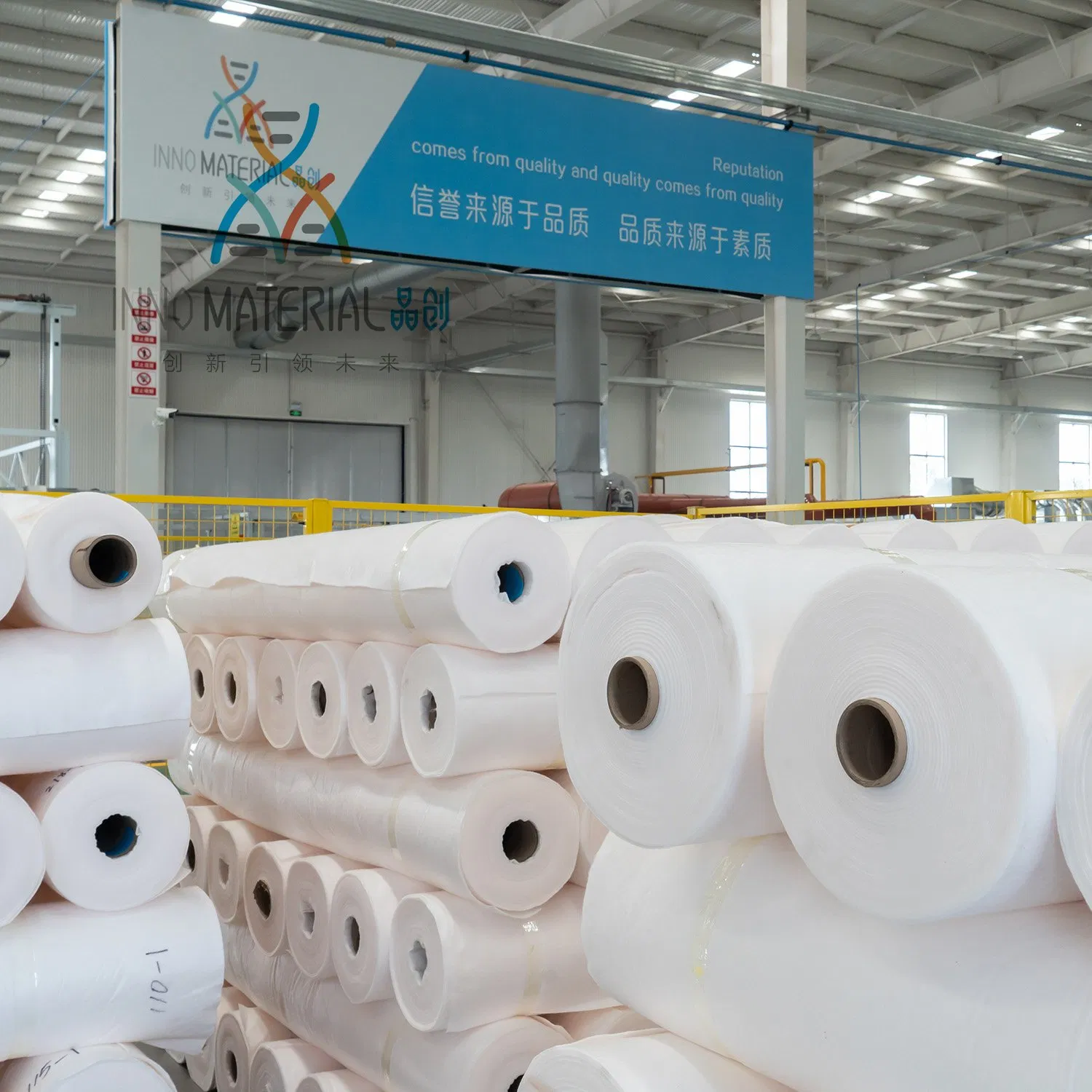

Product Display
Core Functions
1. Isolation: Maintains overall structure by preventing the mixing of different soil layers.
2. Filter: Excellent air and water permeability to intercept soil particles while allowing water flow.
3. Drainage: Forms an internal drainage channel within the soil structure.
4. Reinforced: Enhances tensile strength and anti-deformation ability of the soil.
5. Protection: Effectively transfers or breaks down external stress to prevent soil damage.
Technical Property Data
| Weight (g/m²) |
100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Thickness (mm) |
1.2 | 1.8 | 2.6 | 3.3 | 4.0 | 4.5 | 6.0 |
| Breaking Strength (≥KN) |
6 | 15 | 22 | 28 | 34 | 40 | 50 |
| CBR Bursting (≥KN/m) |
1.0 | 2.5 | 3.5 | 4.3 | 5.3 | 6.2 | 7.8 |

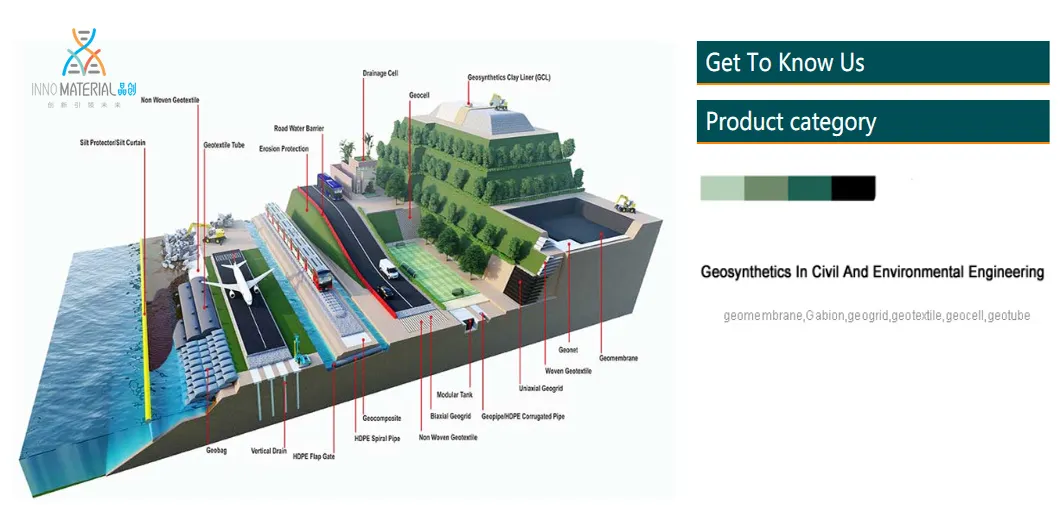

Wide Range Applications
Applications include: High-speed rail sliding layers, Airport runways, Expressway roadbeds, Port & Wharf reinforcement, Sewage treatment plants, Landfills, and Ecological slope protection.

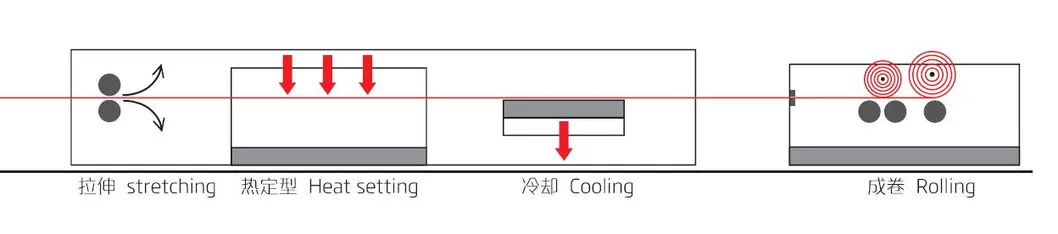

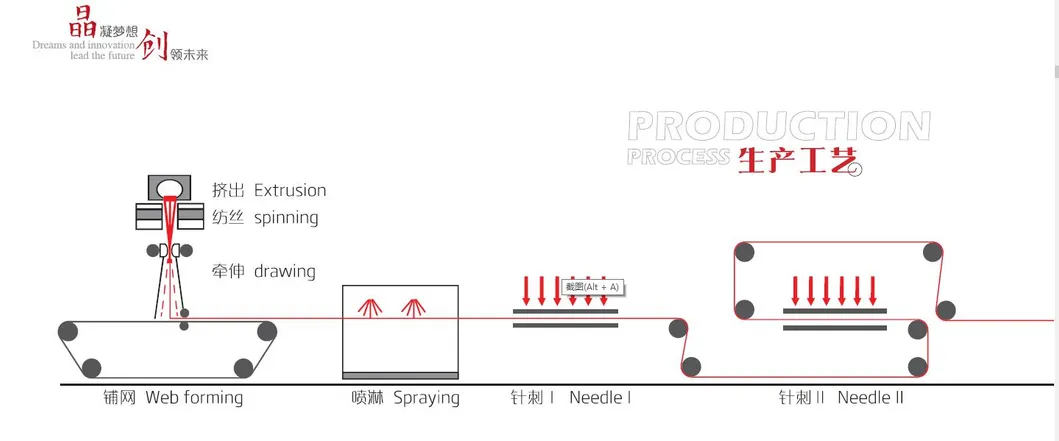

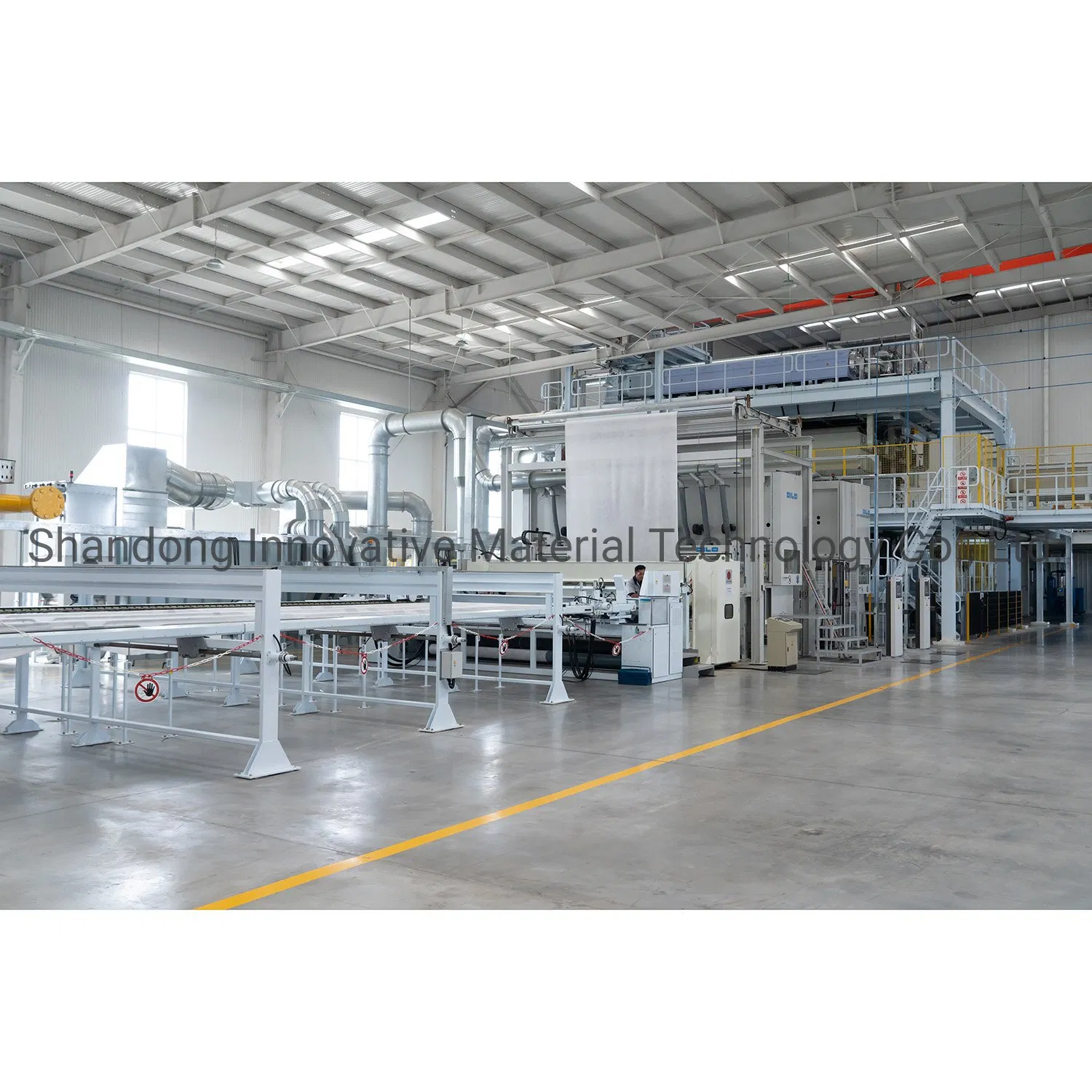

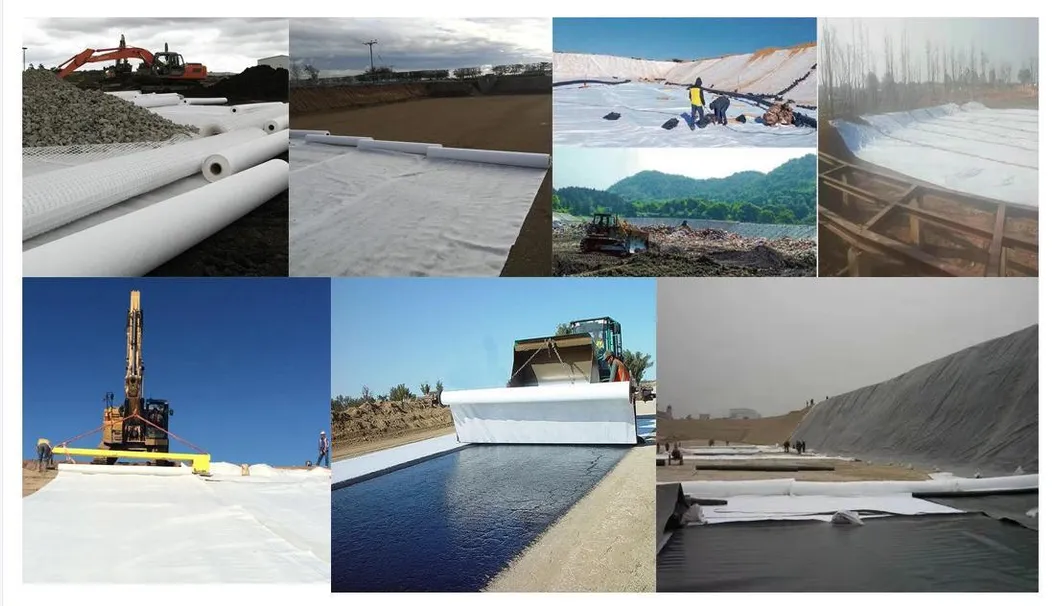

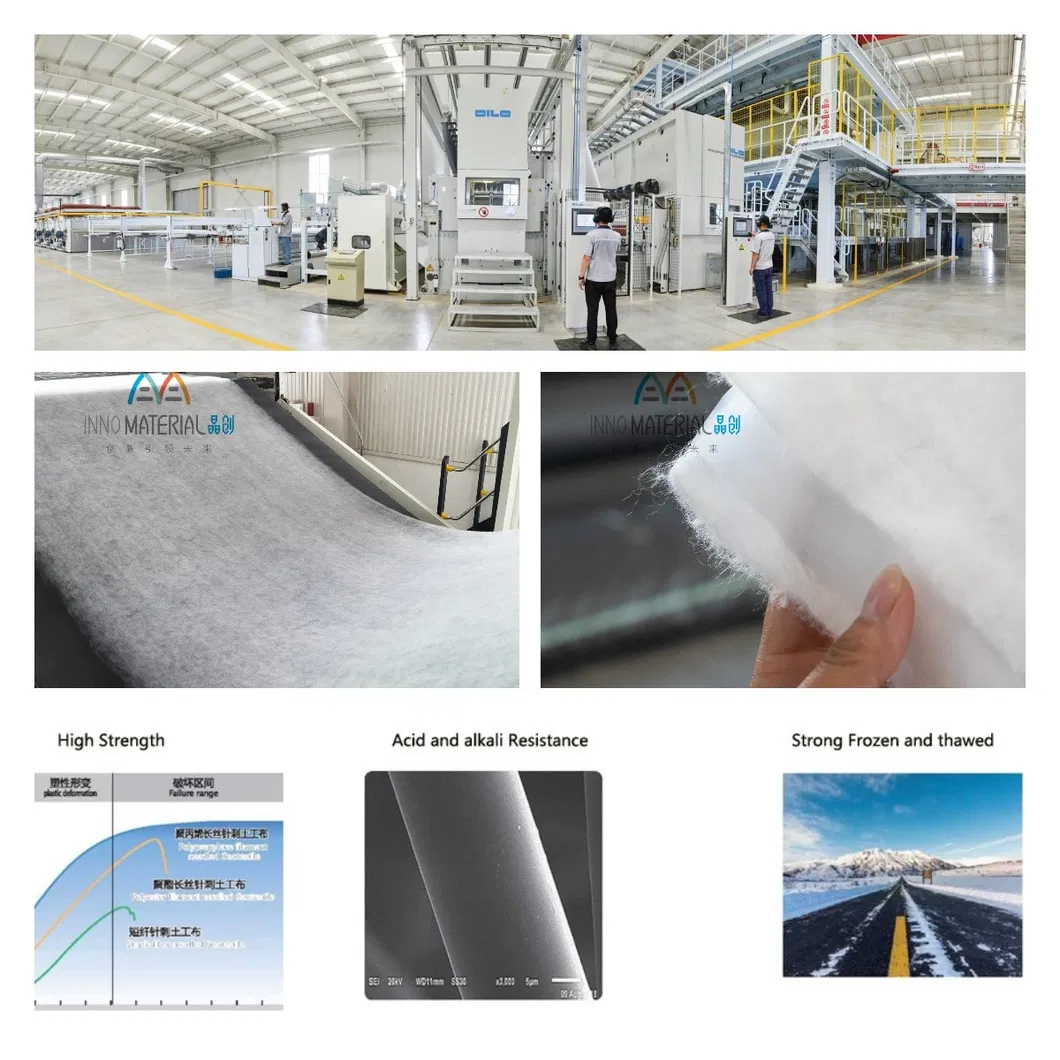

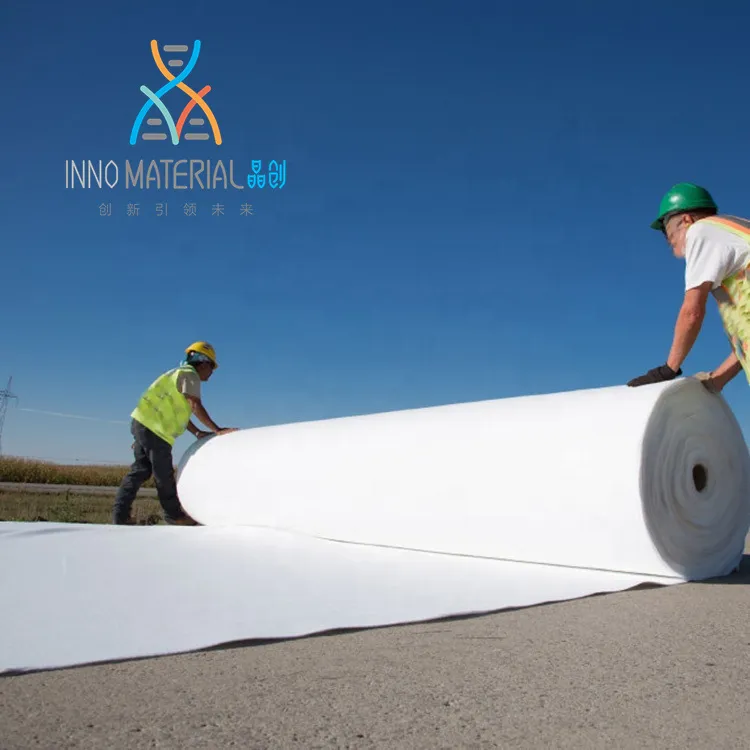

Process & Project Reference

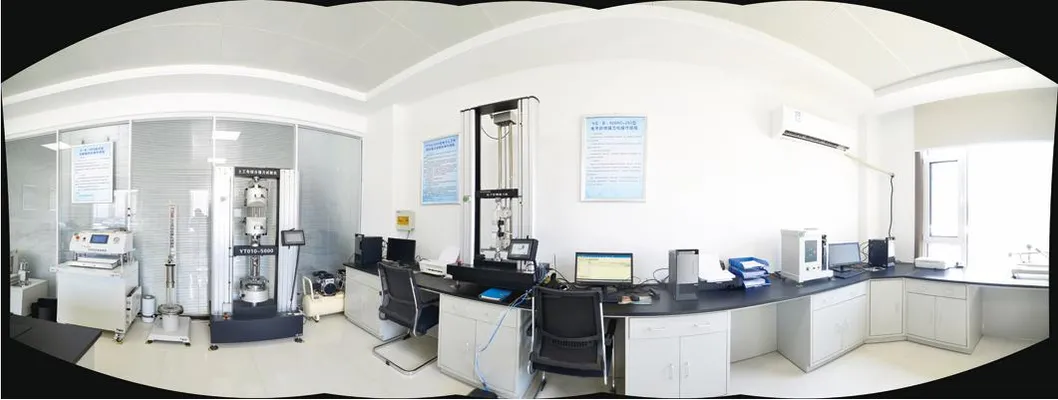

Quality Inspection & Certification

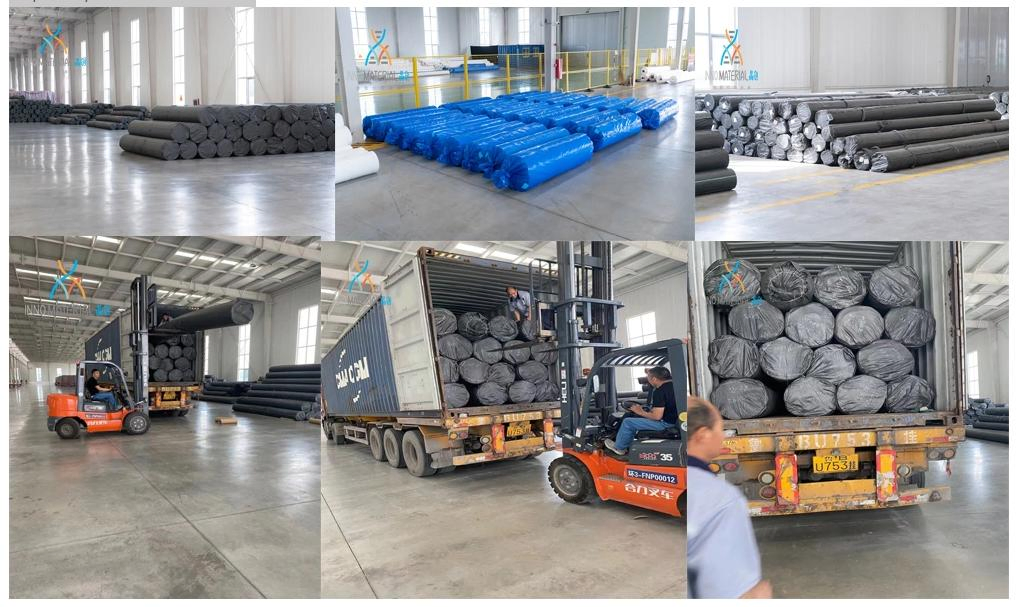

Transport & Logistics
Frequently Asked Questions (FAQ)
What is the maximum width available for the geotextile?
We provide the world's first 6.5-meter-wide product, which helps in reducing splicing and construction costs.
What materials are used in your filament geotextile?
We use high-quality Polypropylene (PP) particles sourced from international leading suppliers like French TOTAL.

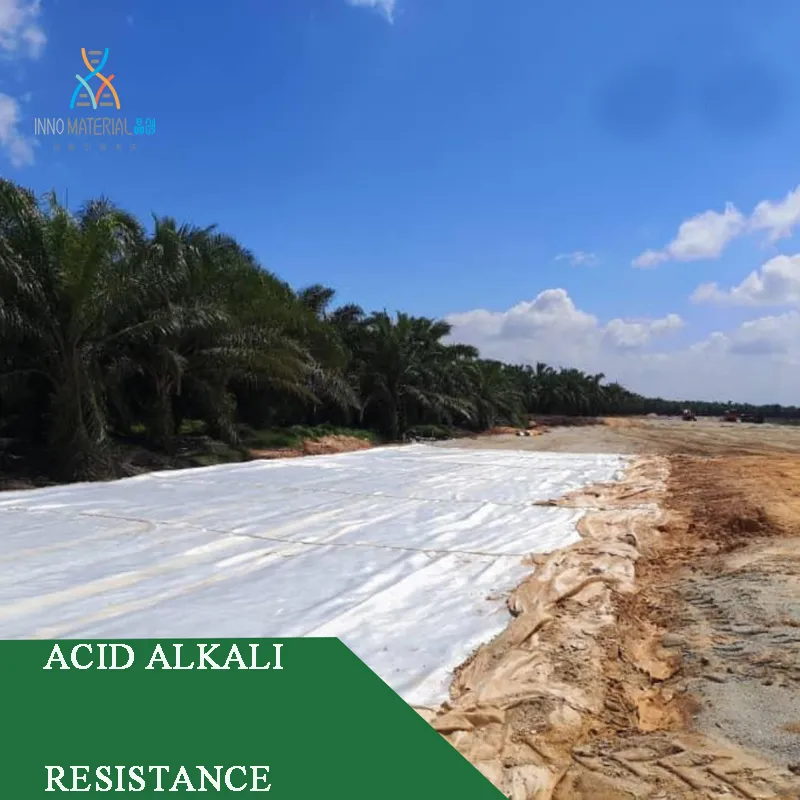

Is this product resistant to corrosion?
Yes, our Polypropylene filament geotextile is acid-resistant, alkali-resistant, and corrosion-resistant, ensuring a long service life.
In which projects can this geotextile be applied?
It is widely used in high-speed railways, airport runways, highways, landfills, and water conservancy projects.
What are the primary functions of needle-punched geotextile?
The main functions include isolation, filtration, drainage, reinforcement, and protection of soil structures.
What is your daily production capacity?
Our current production capacity is approximately 50,000 square meters per day, depending on the specific product specifications.
