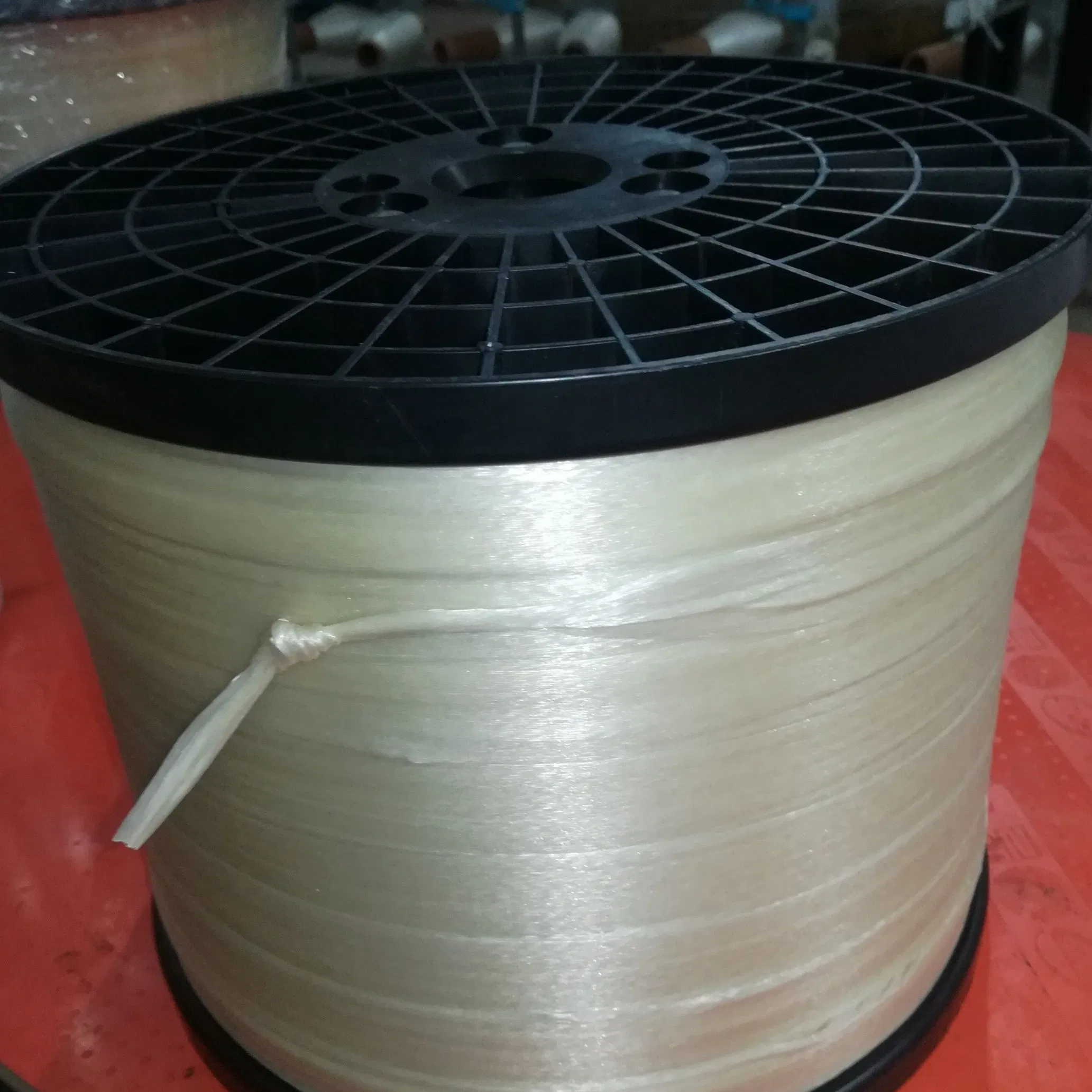

0.3mm Thickness Epoxy Resin Impregnated Fiberglass Tape Poly Glass for Rotor Banding

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview & Basic Info
Model NO.
TK300-50
Material
Fiberglass
Maximum Voltage
Other
Thermal Rating
H 180
Width
50mm
Heat Resistance
H Grade(180)
Thickness
0.3mm
Resin Content
27%+/-2%
Tensile Strength
Over 1000n/Cm
Type
Insulation Tape
Certification
ISO9001
Origin
China
Product Description

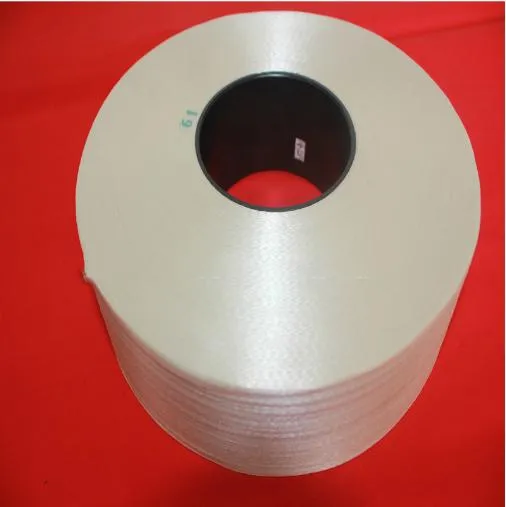

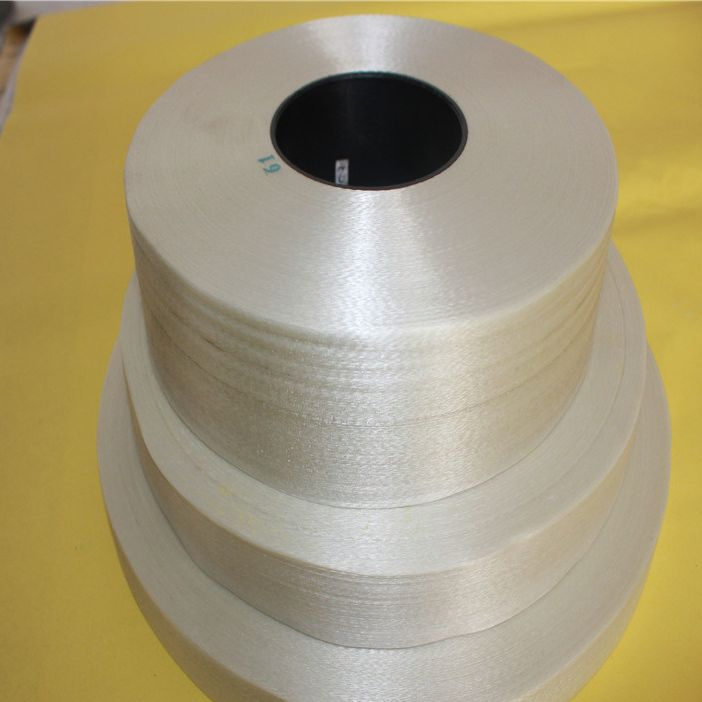

Polyglass tape is made up of alkali-free glass fiber, through the process of high temperature resistant thermosetting resin dipping and baking. The previous generation is a parallel structure, but now the updated product is a netty tape which is characterised as net structure when it is horizontally opened.

Key Features:
As it possesses perfect softness and high utilization efficiency and rolls up easily, it is the ideal banding insulation material for large motor, transformer and lightning arrester.

0.3mm thickness 2850W-Epoxy resin impregnated Fiberglass binding tape consist of meshy twisted E-glass yarns preimpregnated with a special thermosetting polyamine imide resin. It is pliable and tacky; the web structure provides easy unwind without glass strands separation and overlapping.

Characters and Applications:
Class H (180 Celsius degree) insulating material, high tensile strength, high resistance to shocks, high modulus of elasticity, dimensional stability. Widely used as ideal banding materials for electrical motors, transformers and lighting arresters.
Frequently Asked Questions
What is the thermal rating of this Polyglass tape?
This tape is rated as Class H, which can withstand temperatures up to 180 degrees Celsius.
What are the main applications for this impregnated fiberglass tape?
It is primarily used as banding and insulation material for large motors, transformers, and lightning arresters.
Does the tape separate or overlap during unwinding?
No, the web (netty) structure is designed to provide easy unwind without glass strand separation or overlapping.
What is the tensile strength of the tape before curing?
The tensile strength before curing is over 1000n/Cm, providing excellent durability during application.
What materials are used in the composition of this tape?
It consists of alkali-free E-glass yarns preimpregnated with a special thermosetting polyamine imide resin.
