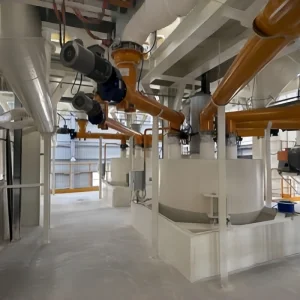

The capacity of dry mortar plant is 5-100tph. It can be full automatic or semi automatic. The plant structure type can be workshop type, series type or tower type. The machine cover space is 50-1000m². The large dry mortar plant includes sand dryer, burning furnace, bucket elevator, screen, storage silo, screw conveyor, weighing system, mixer, packing machine, dust collector and control system.

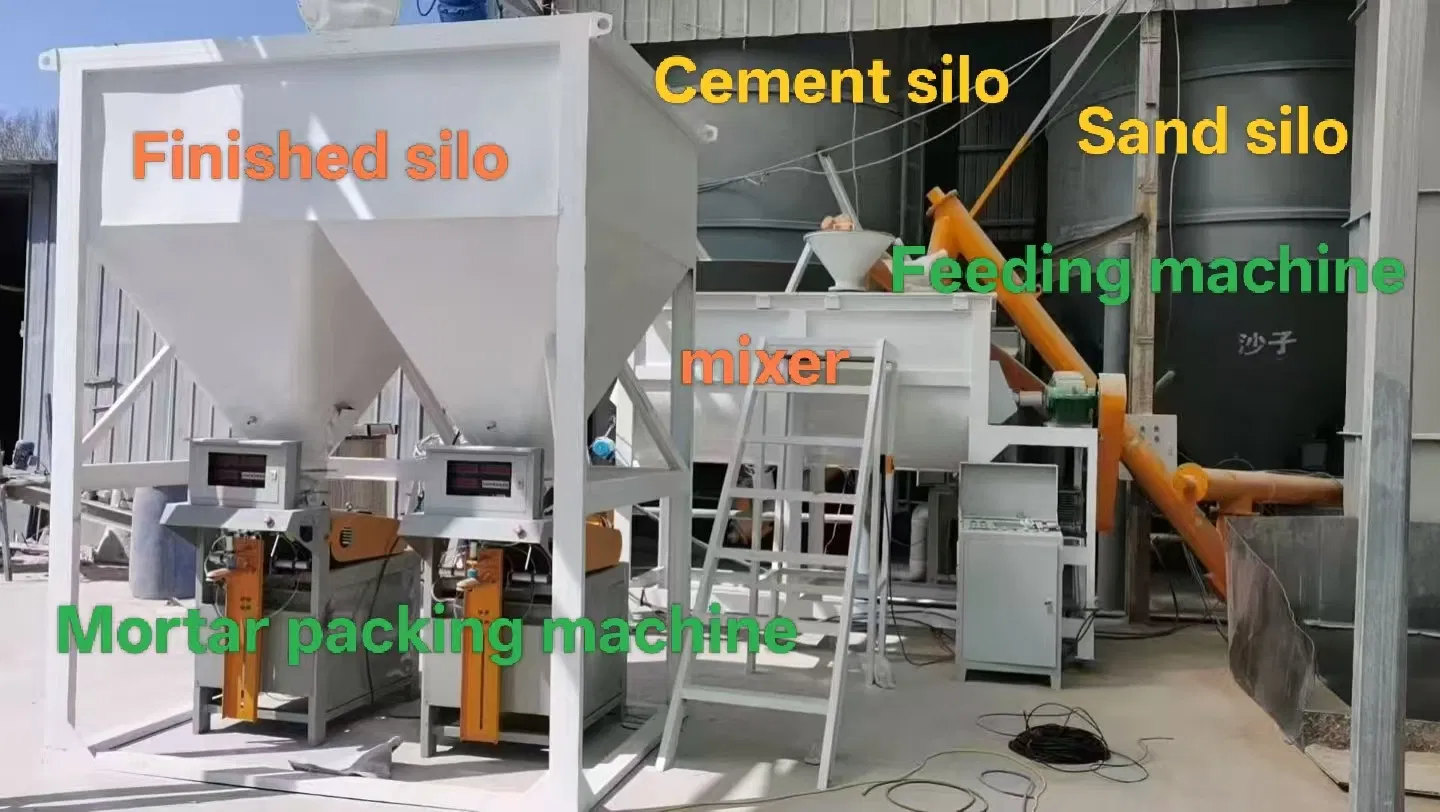

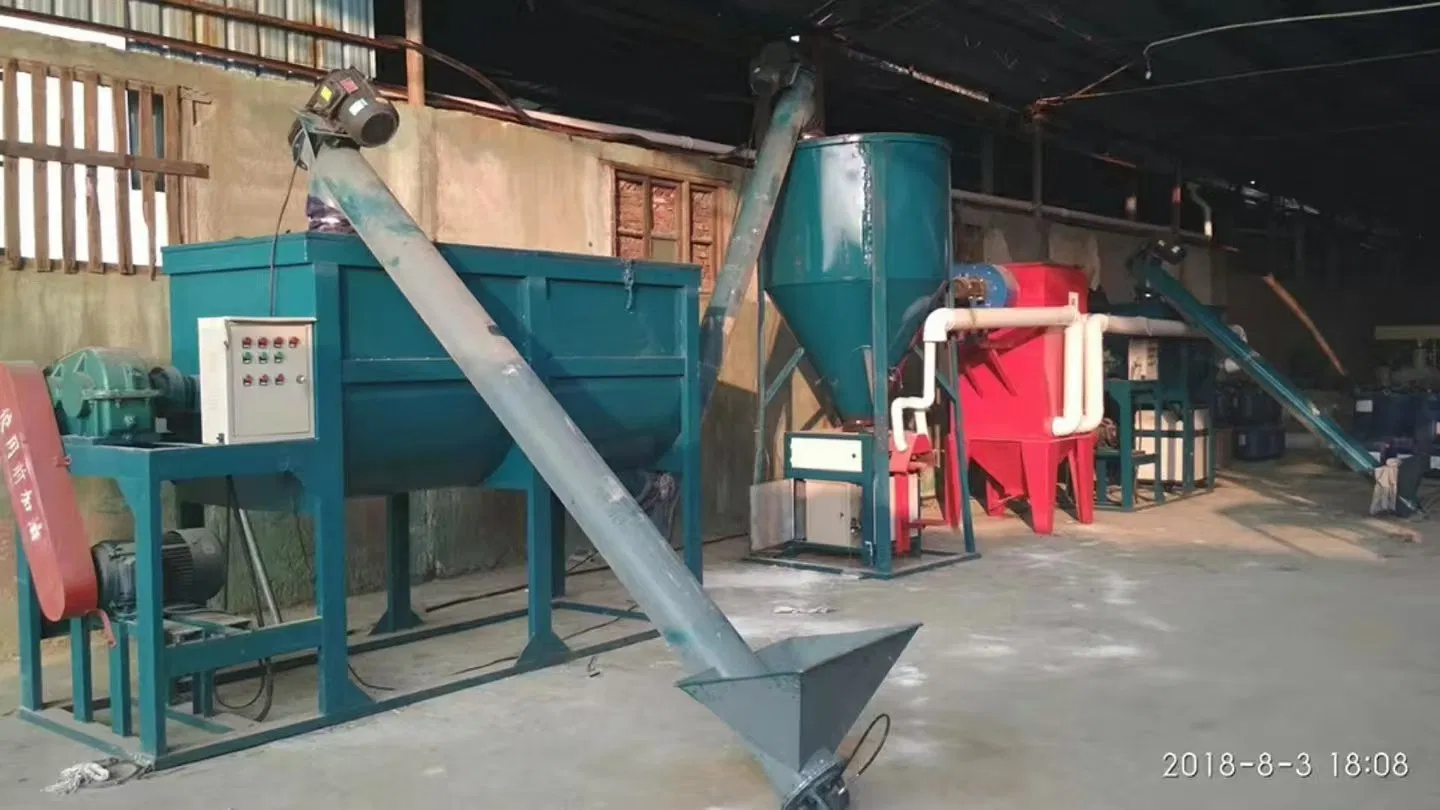

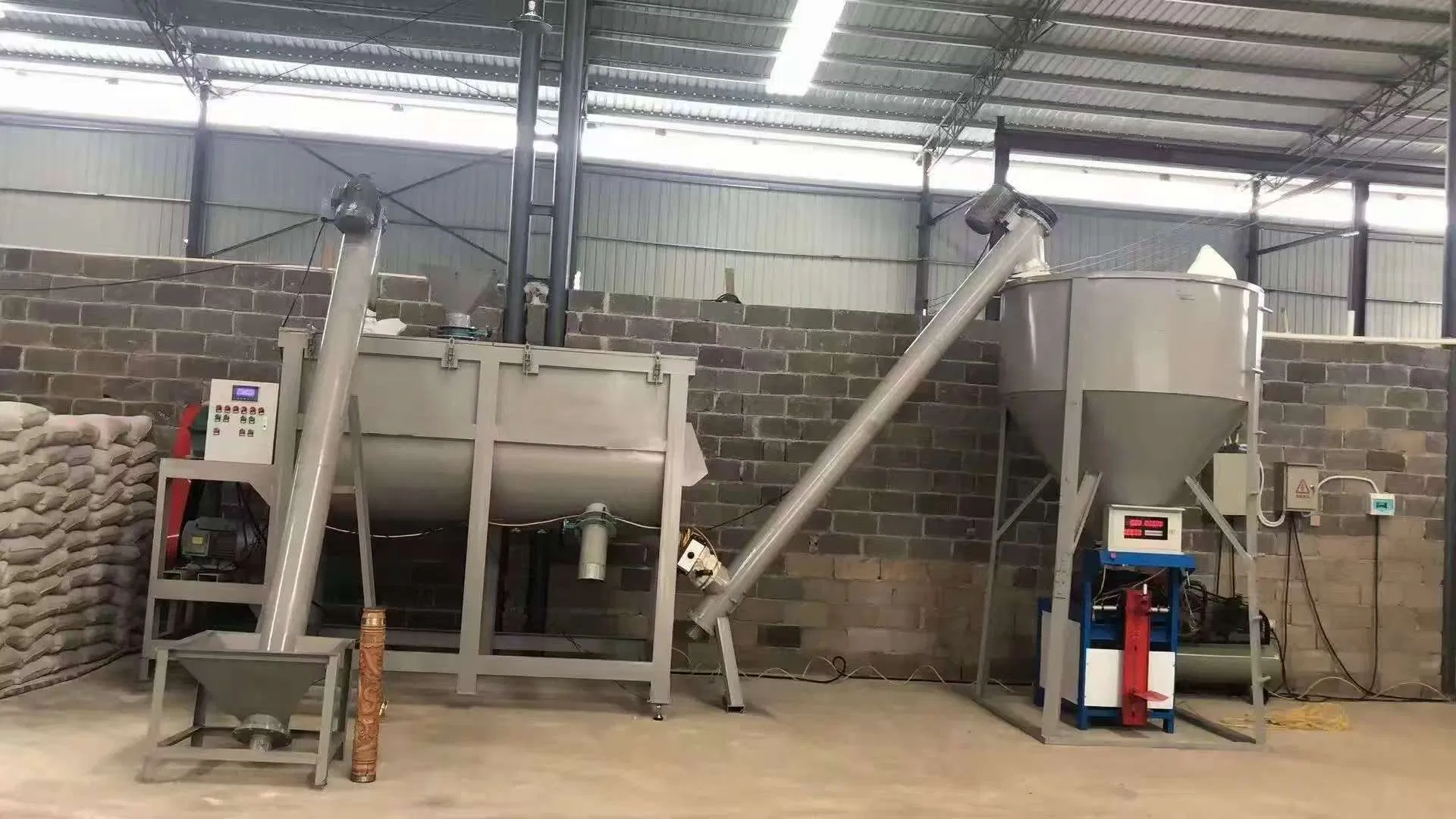

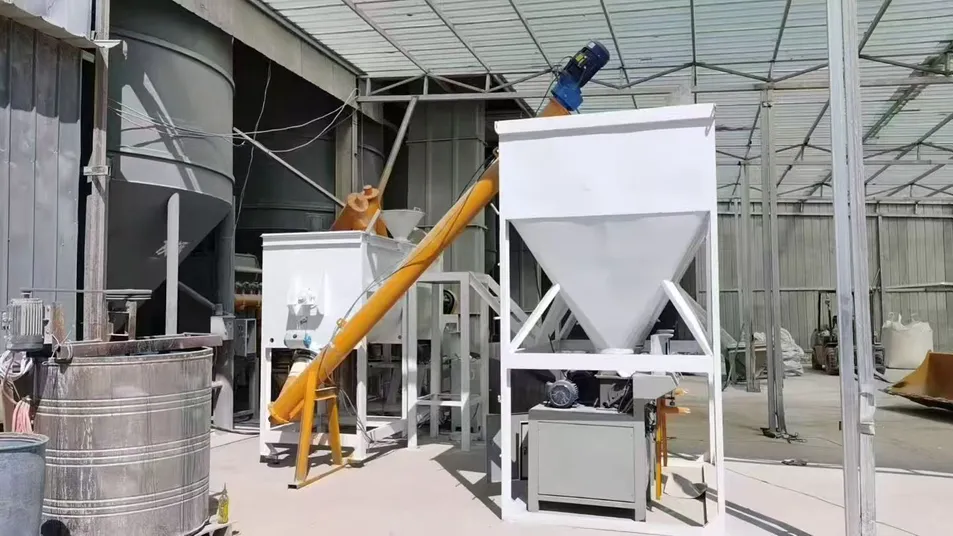

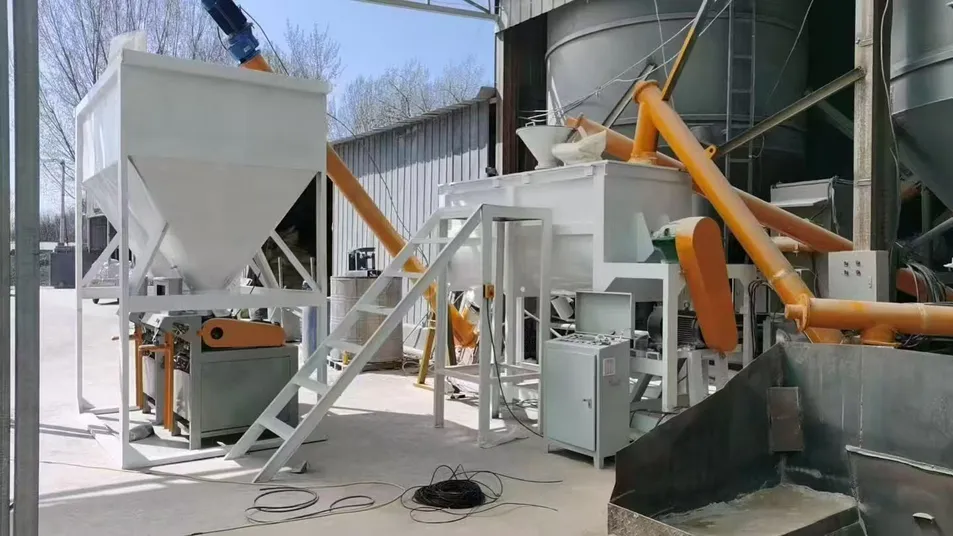

5 TPH (40m³) Small Dry Mortar Plant is used for producing dry mortar which productivity is 1-5t/h. It's mainly composed of screw mixer, screw elevator, vertical finished prodution silo, valve packing machine, also includes air compressor, electric control cabinet etc. This machine is fully sealed production, no dust. Computer measurement automatic packaging.
Technical Parameters
Product Model
Dimensions (L*W*H/m)
Motor Power
Reducer Model
100 Liters
1.25*0.65*1.25
1.5kw
XWD3
200 Liters
1.58*0.65*1.25
2.2kw
XWD4
300 Kilograms
2.1*0.78*1.6
4kw
250 Type Gear
500 Kilograms
2.8*0.9*2.09
5.5kw
250 Type Gear
1000 Kilograms
3*0.98*2.19
7.5kw
No.5 Cycloid Needle
1500 Kilograms
3.3*1.08*2.29
11kw
350 Type Gear
2000 Kilograms
3.5*1.15*2.37
15kw
350 Type Gear

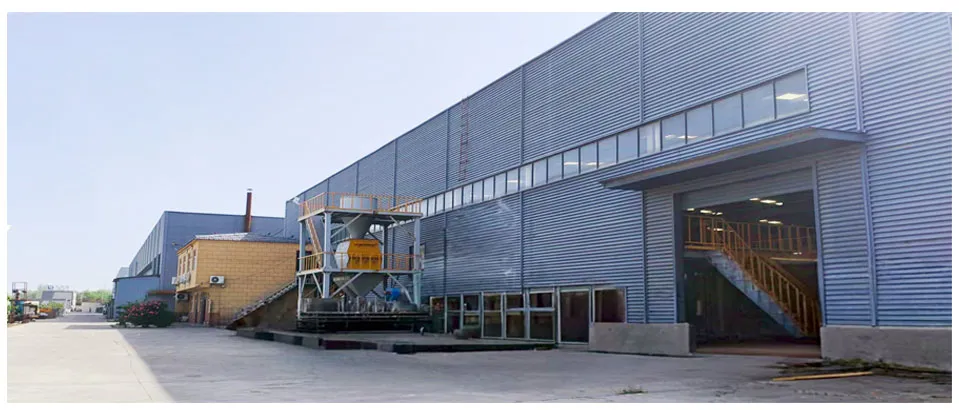

Enterprise Profile
We are a machinery manufacturing enterprise focusing on the research and development, production, and sales of various construction cement mortar, putty powder, tile adhesive mixing machinery and equipment, food machinery, packaging machinery, agricultural machinery, and general machinery components.

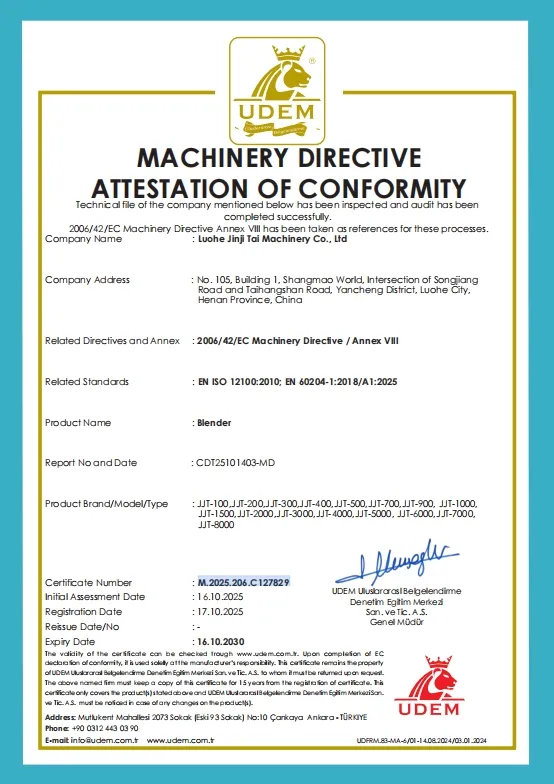

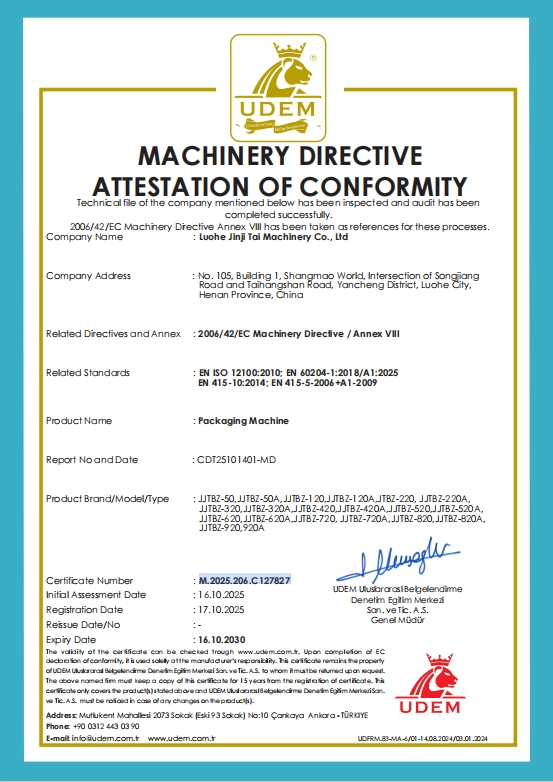

Quality Assurance
Packing & Shipping
Standard Warranty
12 months or 2,000 operating hours.
Global Support
24/7 technical assistance and spare parts supply.
Professional Training
On-site or remote operation and maintenance training.
Frequently Asked Questions
Do you provide free design solutions?
Yes. We offer free customized design solutions tailored to your production capacity, facility layout, and material specifications.
Will there be dedicated training after installation?
Absolutely. Our engineers will provide on-site training covering equipment operation, maintenance, and troubleshooting.
What is the typical service life of the equipment?
With proper maintenance and operation, our systems typically last 10-15 years.
Is the equipment easy to operate?
The system features an intuitive HMI interface. Basic operations can be mastered by trained staff with minimal technical expertise.
How often should the equipment be maintained?
Weekly cleaning, monthly lubrication of moving parts, and annual system calibration and safety checks are recommended.
What does the warranty cover?
We provide a 1-year warranty covering manufacturing defects. For other issues, we offer rapid repairs with cost-effective parts.
