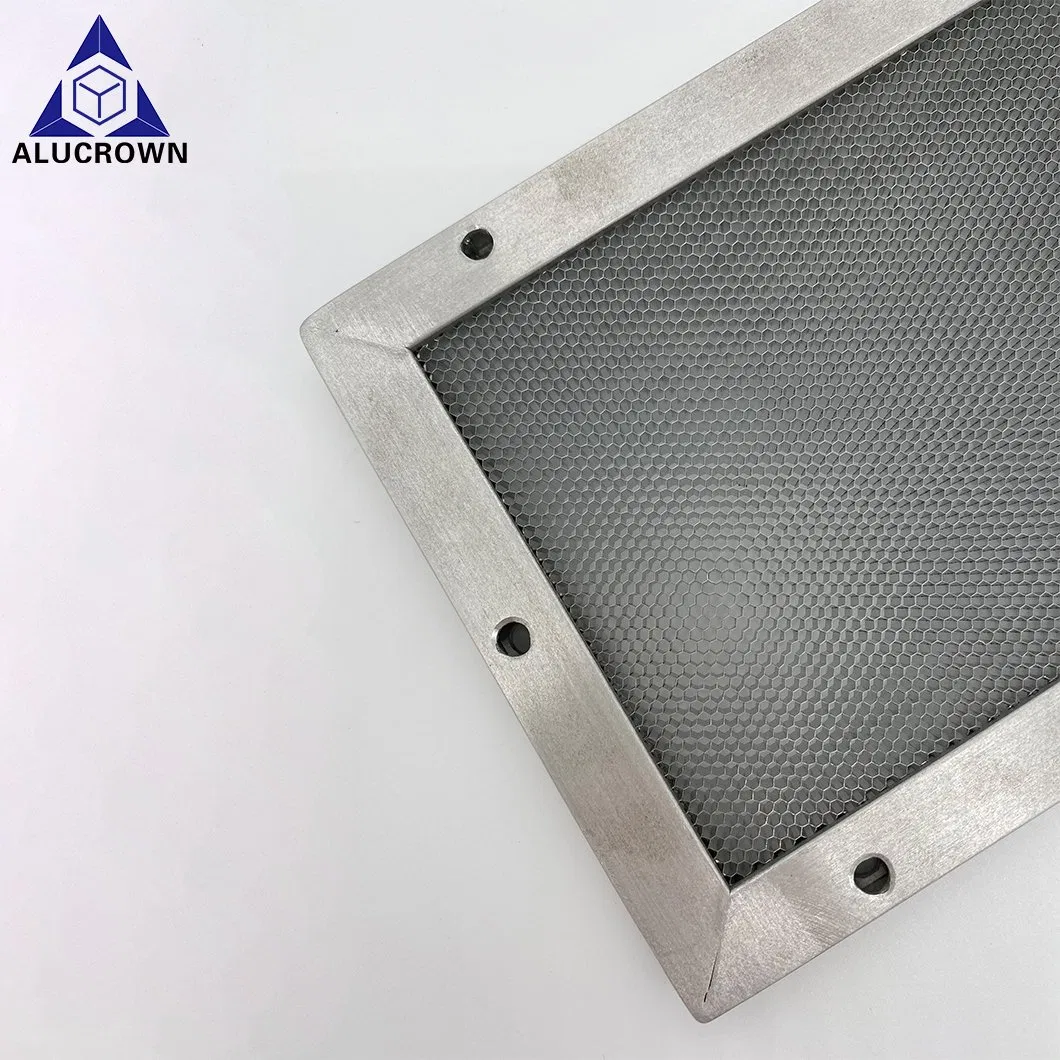

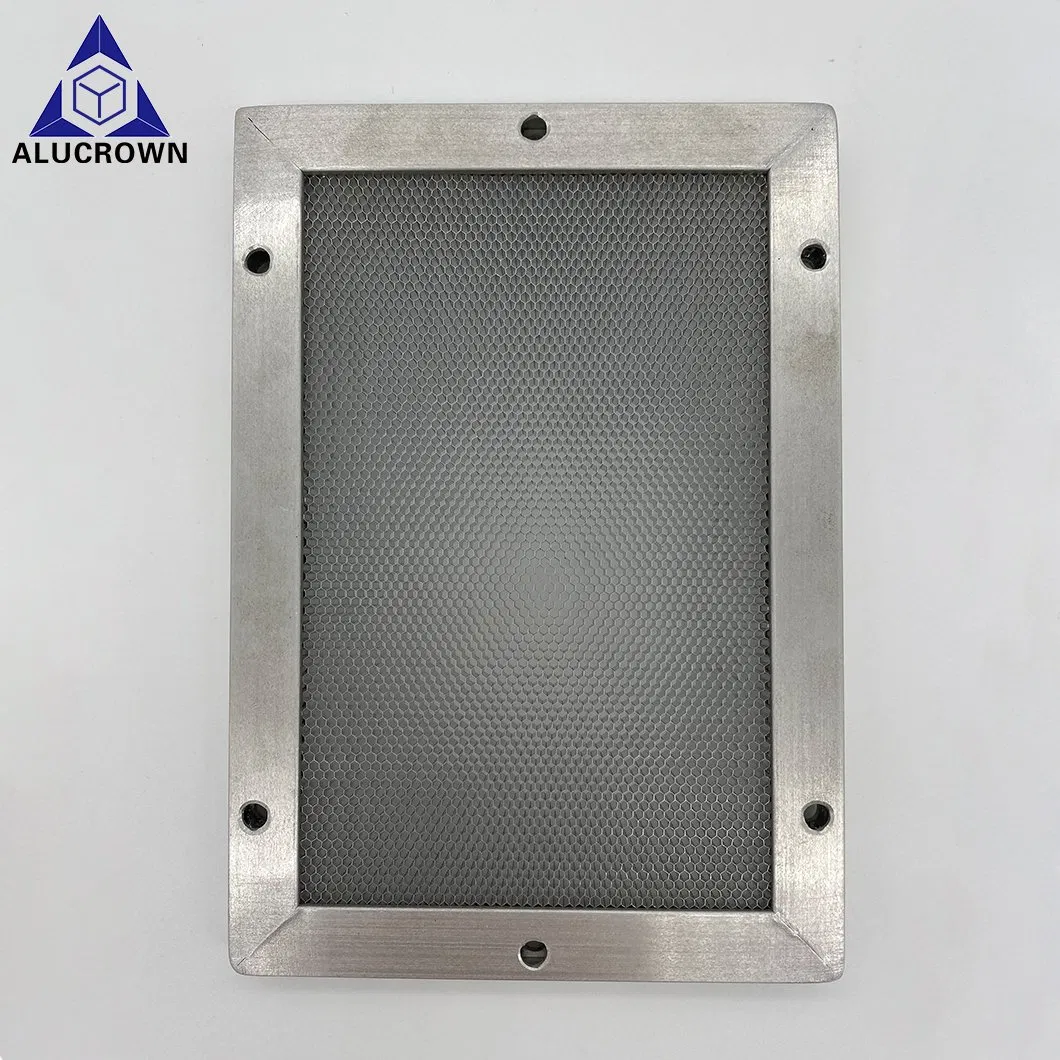

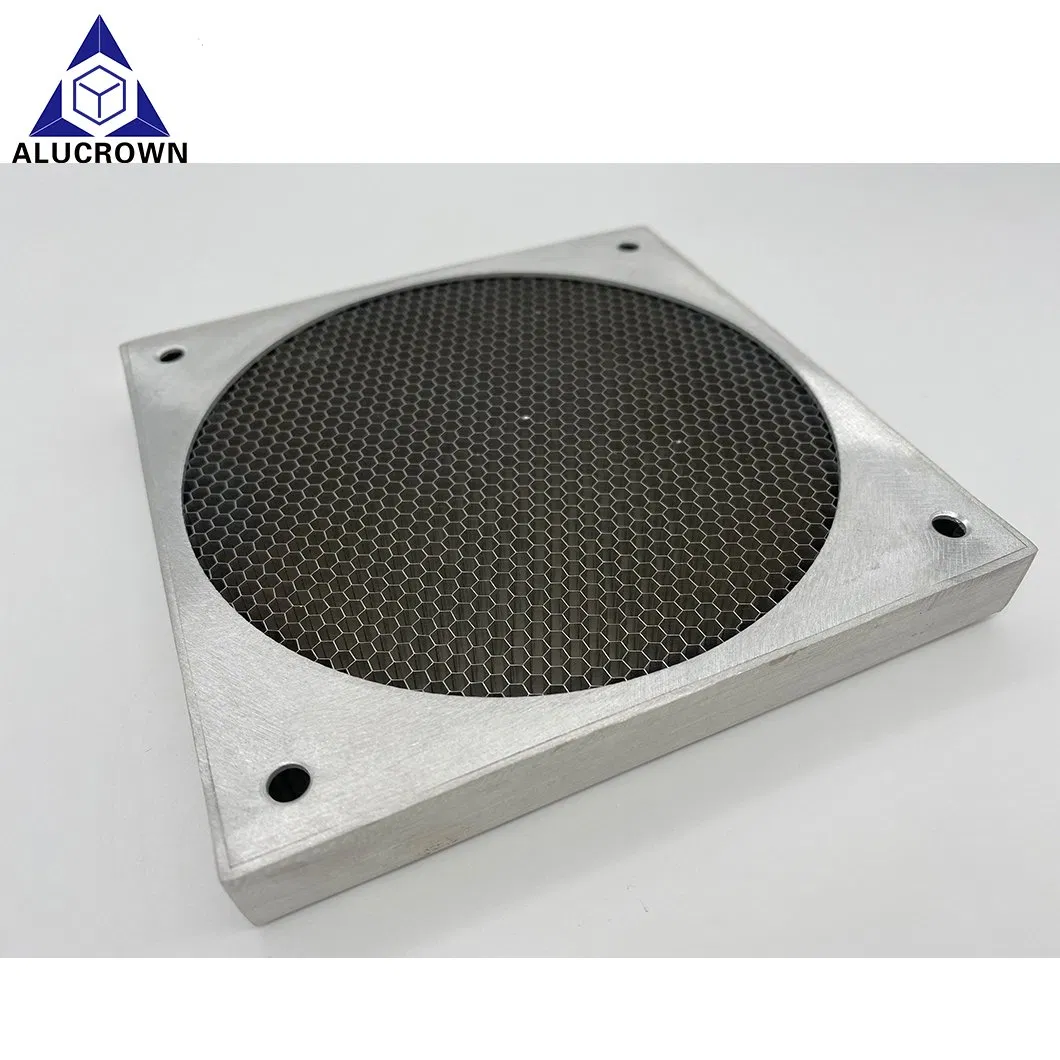

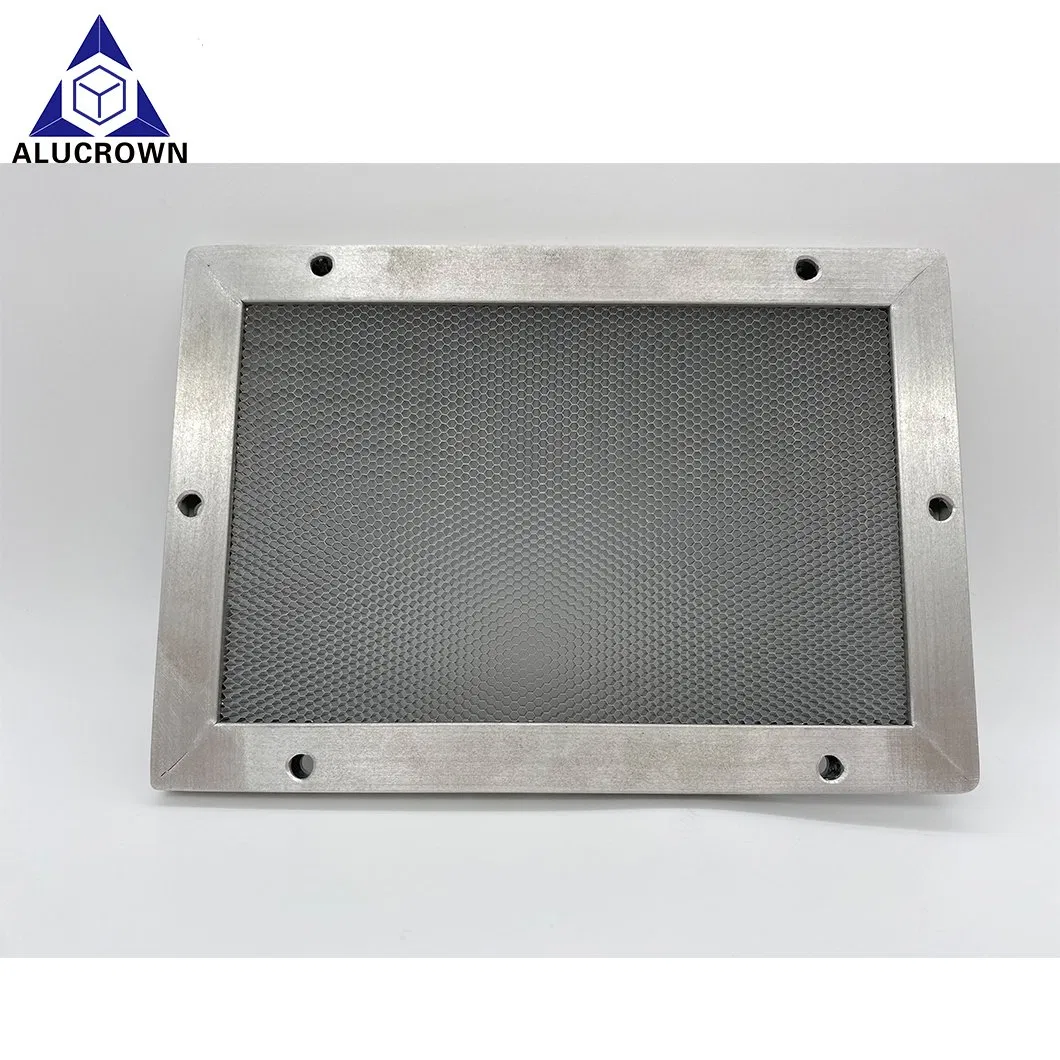

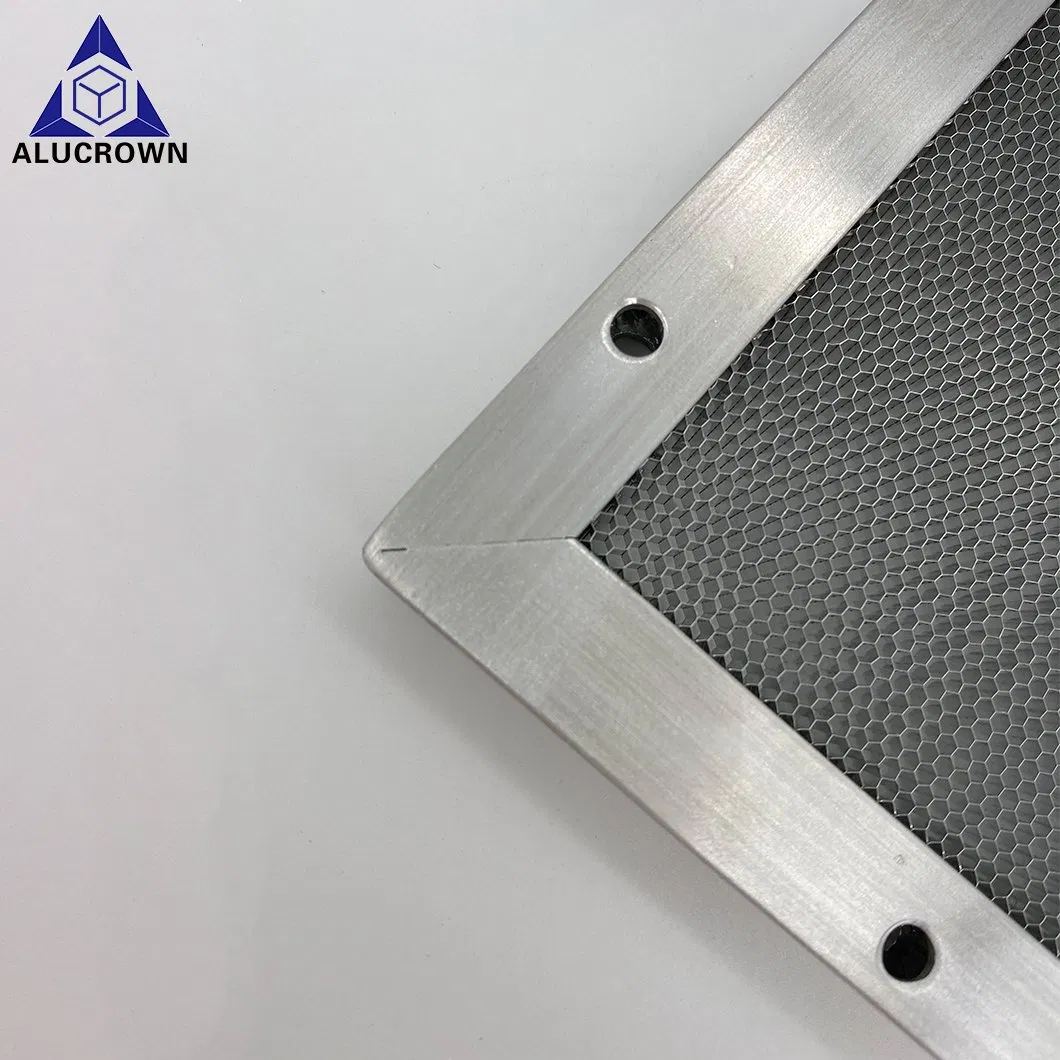

The aluminum honeycomb core is composed of multi-layer aluminum foil, formed after being fully expanded. Our core features a sharp, clear hole surface, making it ideal for adhering to high-grade plates and various industrial applications. We specialize in both micro-aperture and normal honeycomb cores.

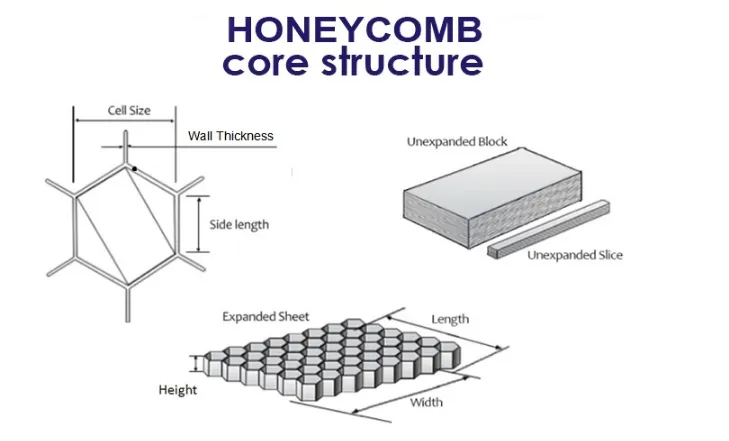

Available Node Sizes: 0.6mm, 1.0mm, 1.5mm, 1.83mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 7.5mm, 10mm, 12mm, 15mm, 20mm.
Cell Sizes (Inch): 1/10", 1/8", 1/6", 1/5", 1/4", 1/3", 3/8", 1/2", 3/4", 4/5", 1".
Foil Thickness: 0.03mm - 0.08mm (A3003, A5052).
| Node (mm) | Cell size (inch) | Max Expanded Size(mm) | Foil Thickness | Reference Image |
|---|---|---|---|---|
| 0.6 | 1/25 | 300*500 | 0.02 |  |
| 1.0 | 1/16 | 1000*1000 | 0.03~0.04 | |
| 1.5 | 1/10 | 1200*1500 | 0.03~0.04 | |
| 2.0 | 1/8 | 1600*2000 | 0.03~0.04 | |
| 3.0 | 1/5 | 1600*2400 | 0.03~0.04 | |
| 5.0 | 1/3 | 1600*4000 | 0.04~0.08 | Large Scale |
| 10.0 | 3/4 | 1600*7500 | 0.04~0.08 | Max Length |
High-quality aluminum honeycomb core designed for demanding environments.
Excellent resistance to environmental factors and chemical exposure.
High ratio of specific strength and rigidity relative to its light weight.

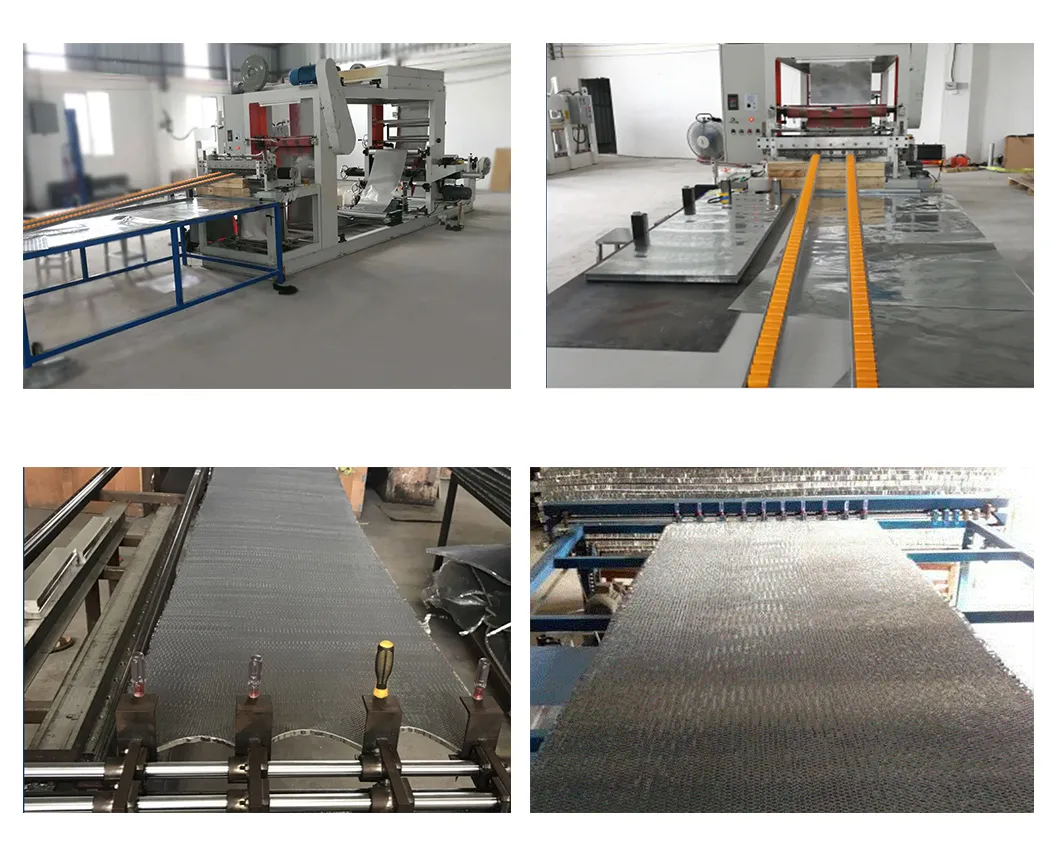

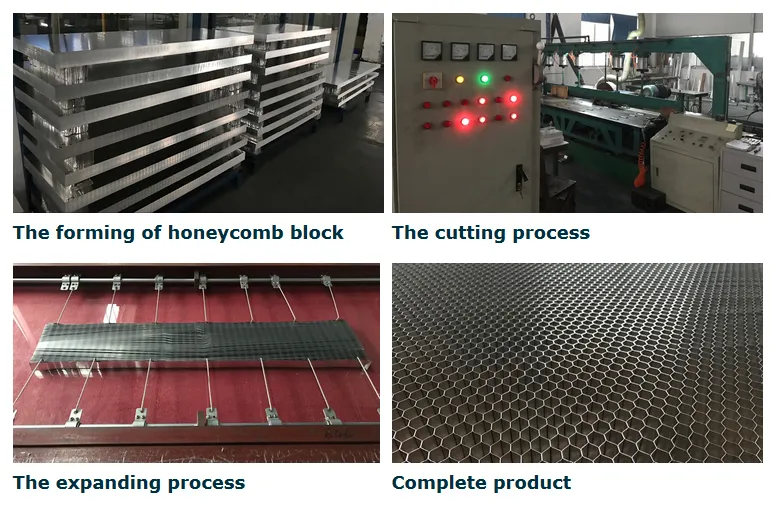

Production Process: From foil preparation to expansion and precision cutting.

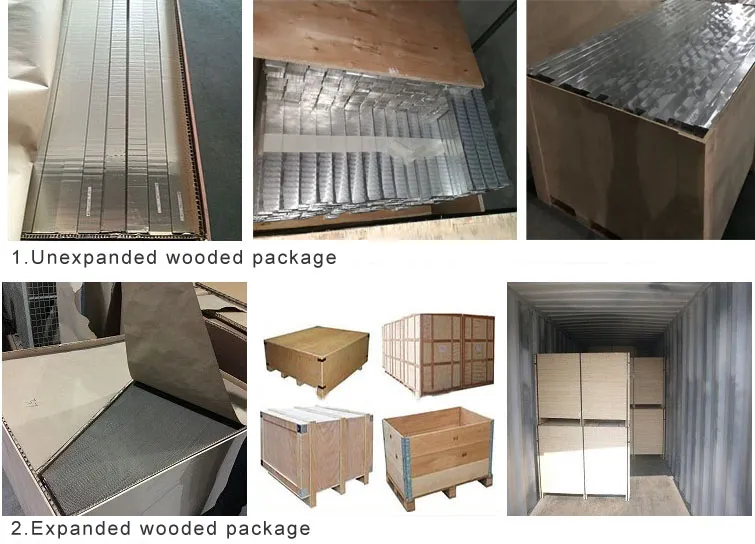

Packaging: Securely packed in professional plywood crates for international shipping.
