Micro-Glass Fiber Heat Insulation Material for Cryogenic Products/LNG Tank/Gas Crlinder

1 / 5

Micro-Glass Fiber Heat Insulation Material for Cryogenic Products/LNG Tank/Gas Crlinder

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.: MLI-90/900

Specification: MLI-90/1100/1300/1800

HS Code: 7607200000

Production Cap.: 20,000,000 M2/Year

What's This?

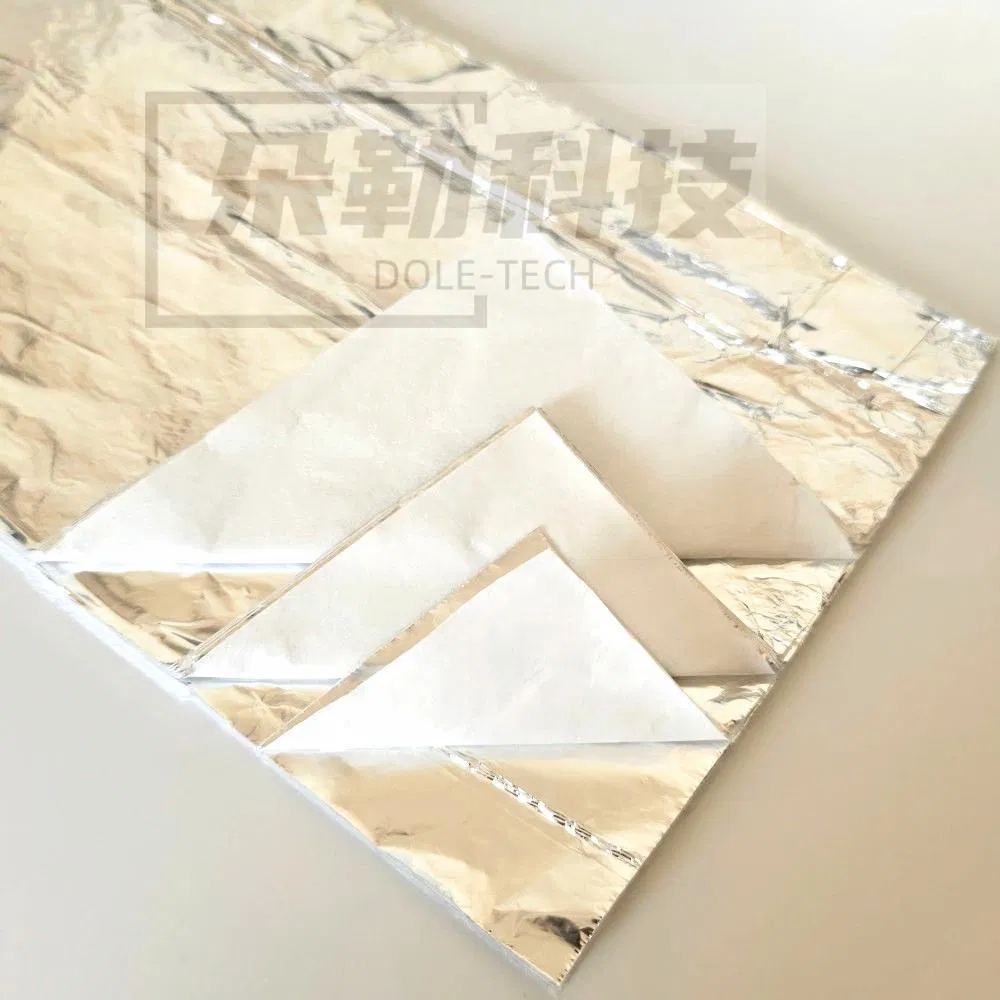

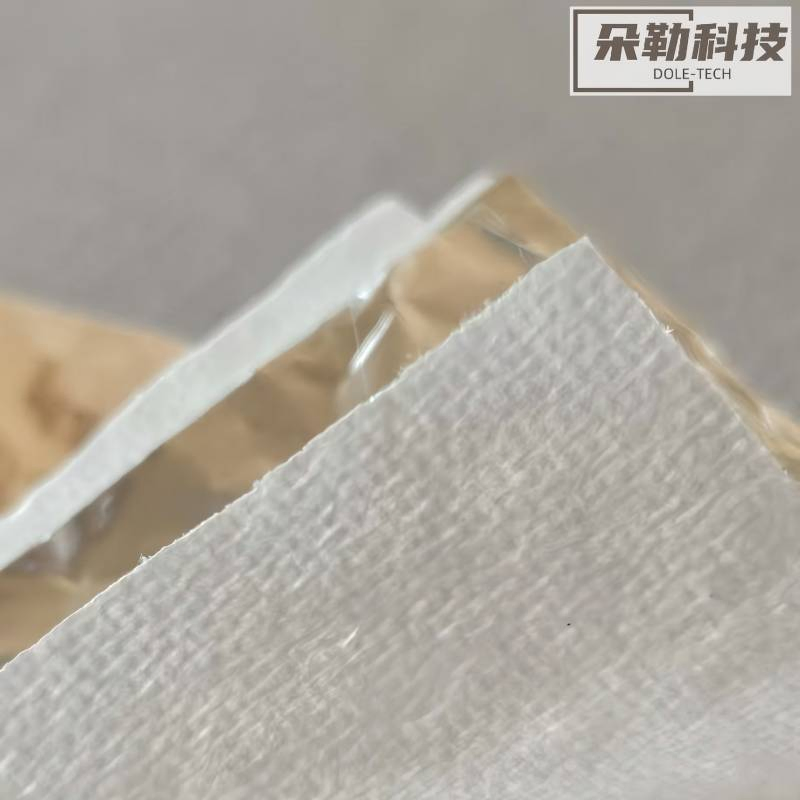

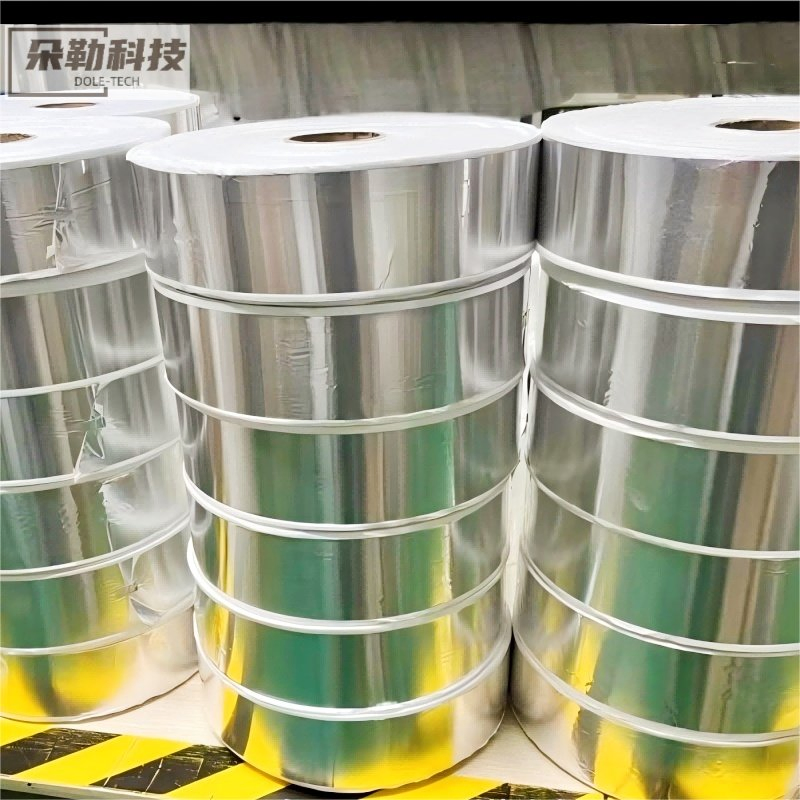

Multilayer insulation material (MLI)

MLI systems are engineered to minimize thermal radiation flux and deliver optimal thermal insulation performance through:

Radiant barrier integration: Utilization of high-purity aluminum foil as the primary reflective layer.
Spacer material selection: Incorporation of Super Insulation Paper to establish continuous thermal breaks.

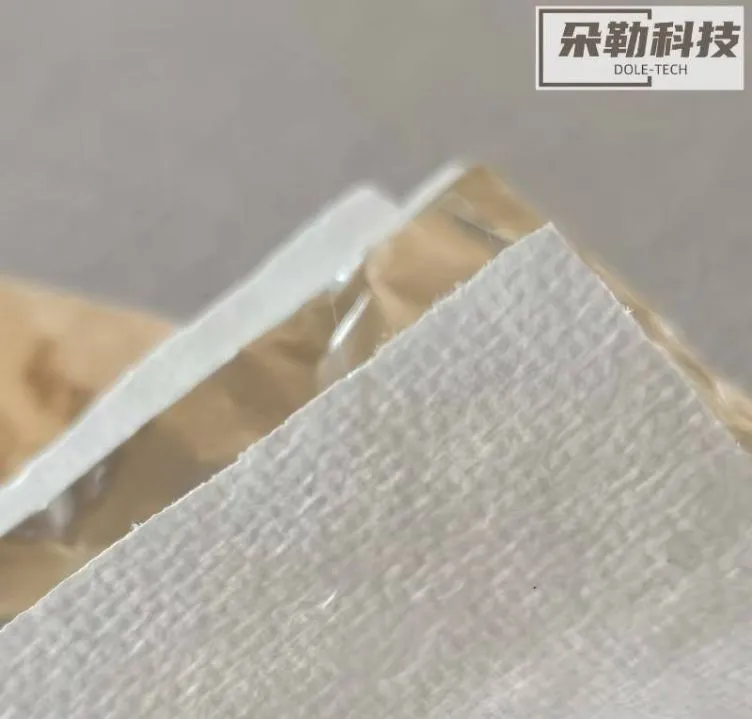

Layered composite architecture: Engineered void structure with multidirectional fiber alignment.
Material efficiency: Minimizes scrap generation through optimized layer nesting methodology.
Process optimization: Achieves 25% higher throughput compared to conventional composite assembly techniques.

★

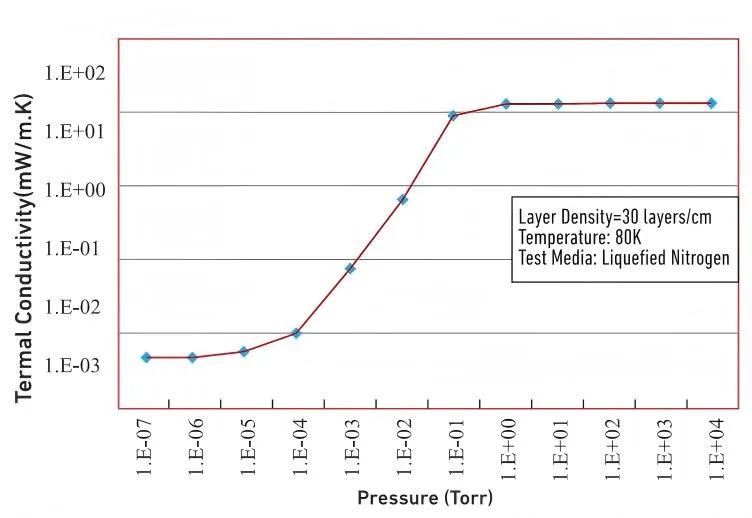

What's The Performance?

Performance	Index
Thickness (mm) - Insulation Material	0.055
Thickness (mm) - Aluminum Foil	0.0065
Basic Weight (g/m2) - Insulation Material	12
Basic Weight (g/m2) - Aluminum Foil	18
Thermal Conductivity (W/m.k)	0.00009
Tensile Strength (kg/25 mm)	0.26
Moisture Content (%)	0.3
Option Width (mm)	90/900/1100/1200/1300/1600/1800

▲

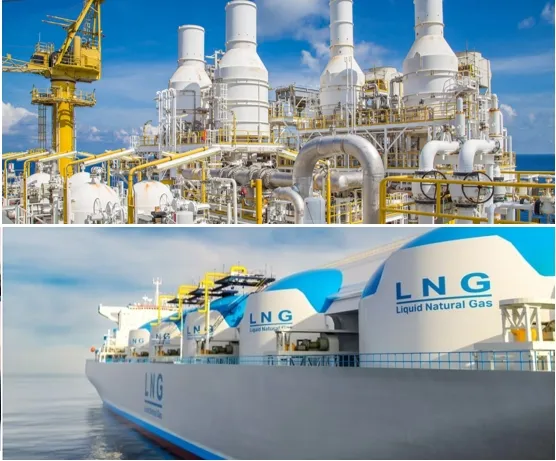

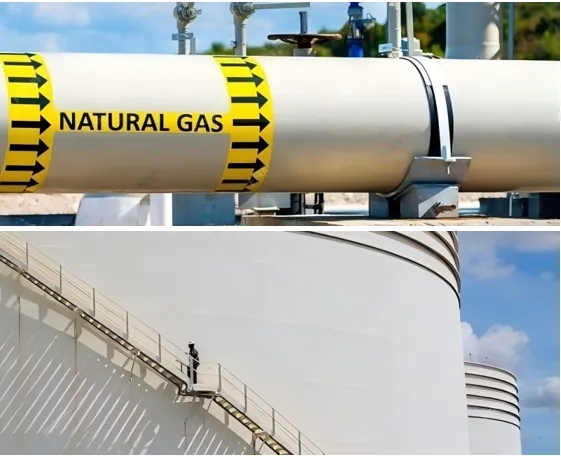

What's The Application?

❤

Why Choose Us?

FAQ

Frequently Asked Questions

Q1: What technical drawings are required to determine MLI product specifications?

Our system requires: 1. Container Geometry (Diameter/Length/Height/Flange details); 2. Operational Parameters (Temp range -196°C to +200°C, Pressure range); 3. Insulation Requirements (Desired U-value, Moisture resistance).

Q2: What is the main advantage of this Multilayer Insulation (MLI)?

The primary advantage is its extremely low thermal conductivity (0.00009 W/m.k), which significantly minimizes thermal radiation flux in cryogenic applications.

Q3: What materials are used to construct the layers?

The system utilizes high-purity aluminum foil as the radiant barrier and Super Insulation Paper as the spacer material to create effective thermal breaks.

Q4: Is the material moisture resistant?

Yes, with a moisture content index of only 0.3%, the material is designed to maintain performance even in challenging environmental conditions.

Q5: Can the width of the insulation be customized?

We offer various standard widths including 90mm, 900mm, 1100mm, up to 1800mm to accommodate different container sizes and industrial needs.

Q6: What is the annual production capacity for this material?

We maintain a high production capacity of 20,000,000 square meters per year to ensure stable supply for large-scale industrial projects.
