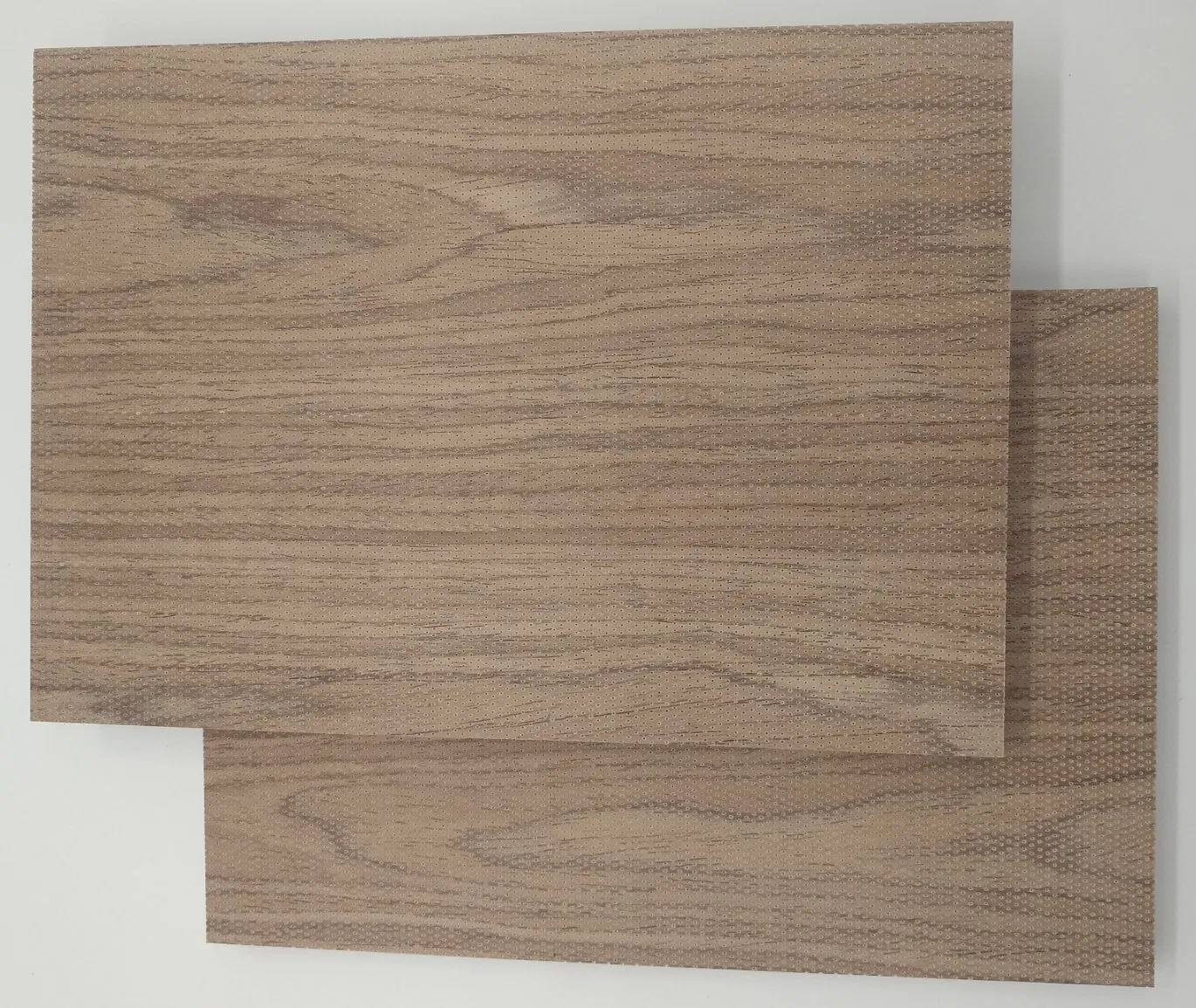

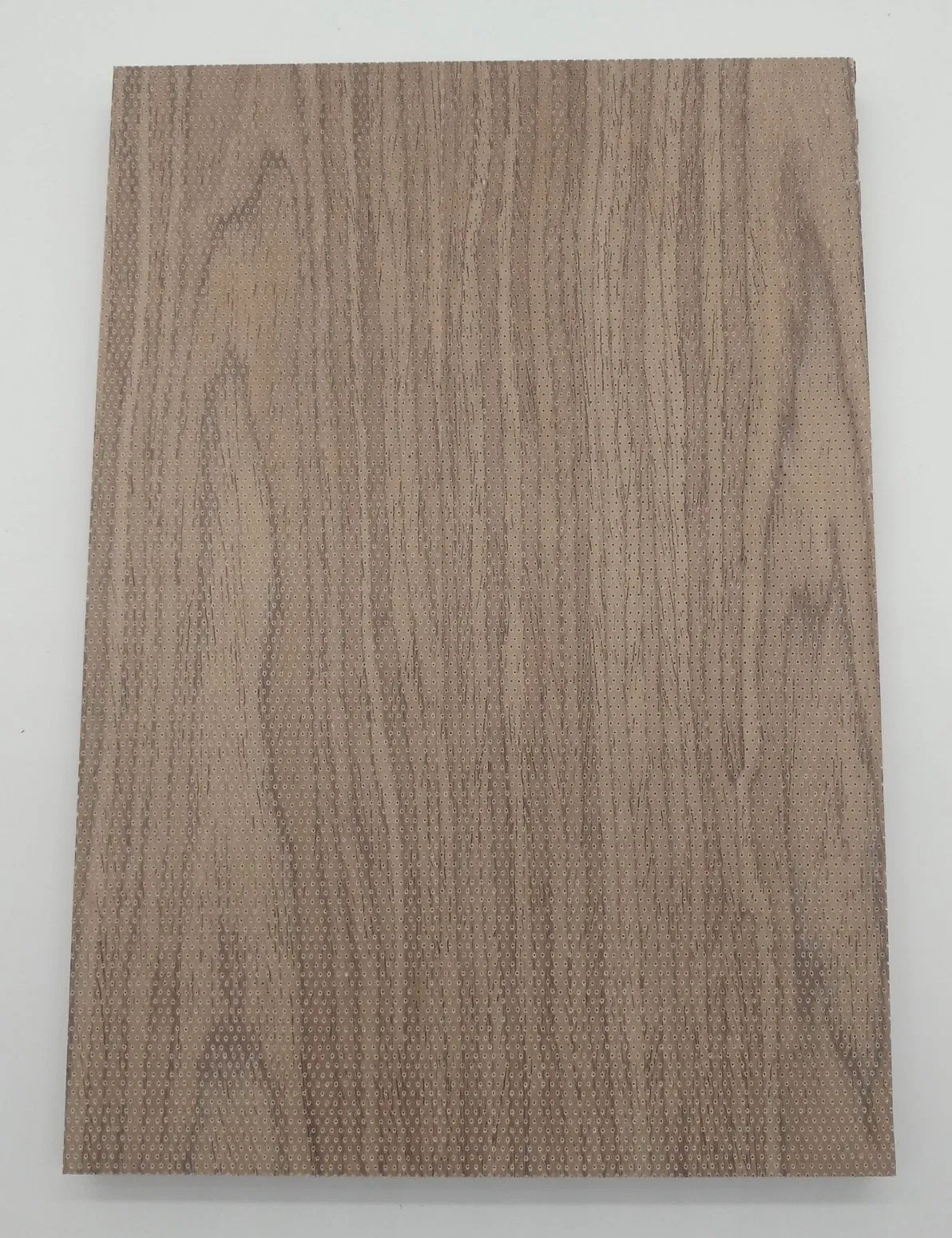

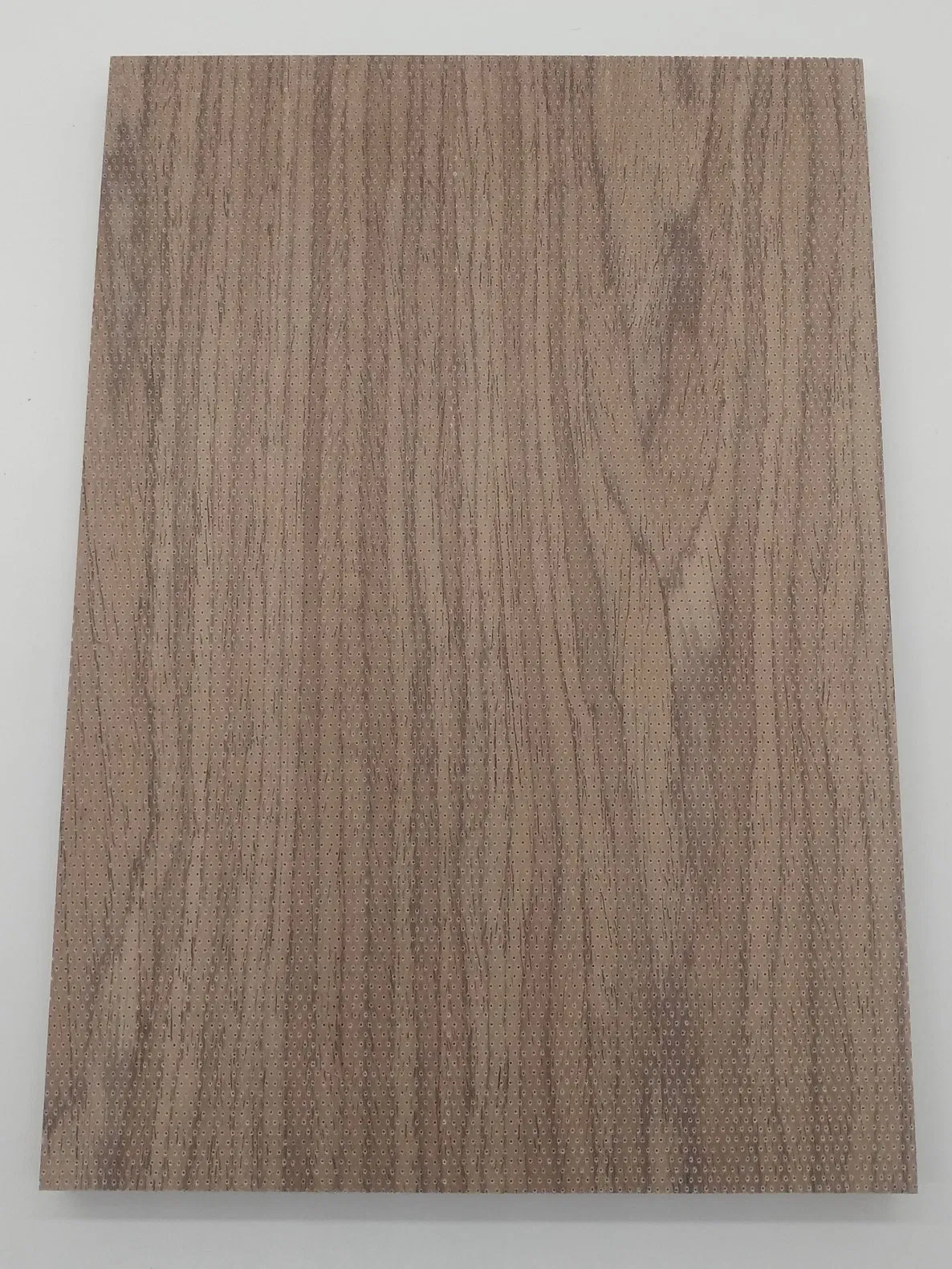

Natural Veneer 2/2/0.4mm Micro Perforated Acoustic Board Interior Wall Soundproofing Building Material

Customization: Available
After-sales Service: Avaliable
Warranty: 3

Product Description

Basic Information

Model NO.
soundproofing panel
Material
MDF
Usage
Indoor
Customized
Non-Customized
Color Card
Veneer, Laminate, Melamine
Hole Boarder
Standard or Without
Installation
Guidance
Mould Proof
Available
Termite Proof
Available
Delivery
On Time
Origin
China
HS Code
4411149900

Packaging & Delivery

Package Size
1200.00cm * 600.00cm * 16.00cm
Gross Weight
13.970kg
Transport Package
Carton with Pallet Package
Specification
standard 1200*600*16mm or TBD

Product Description

Perfo, Micro and Custom ranges provide a sound solution for any environment. Music recital, opera and concert auditoriums, workplace and retail, leisure and arts, education and sports, civic buildings, places of worship, hotels, spas and residential. Check out our ranges and create your perfect finish.

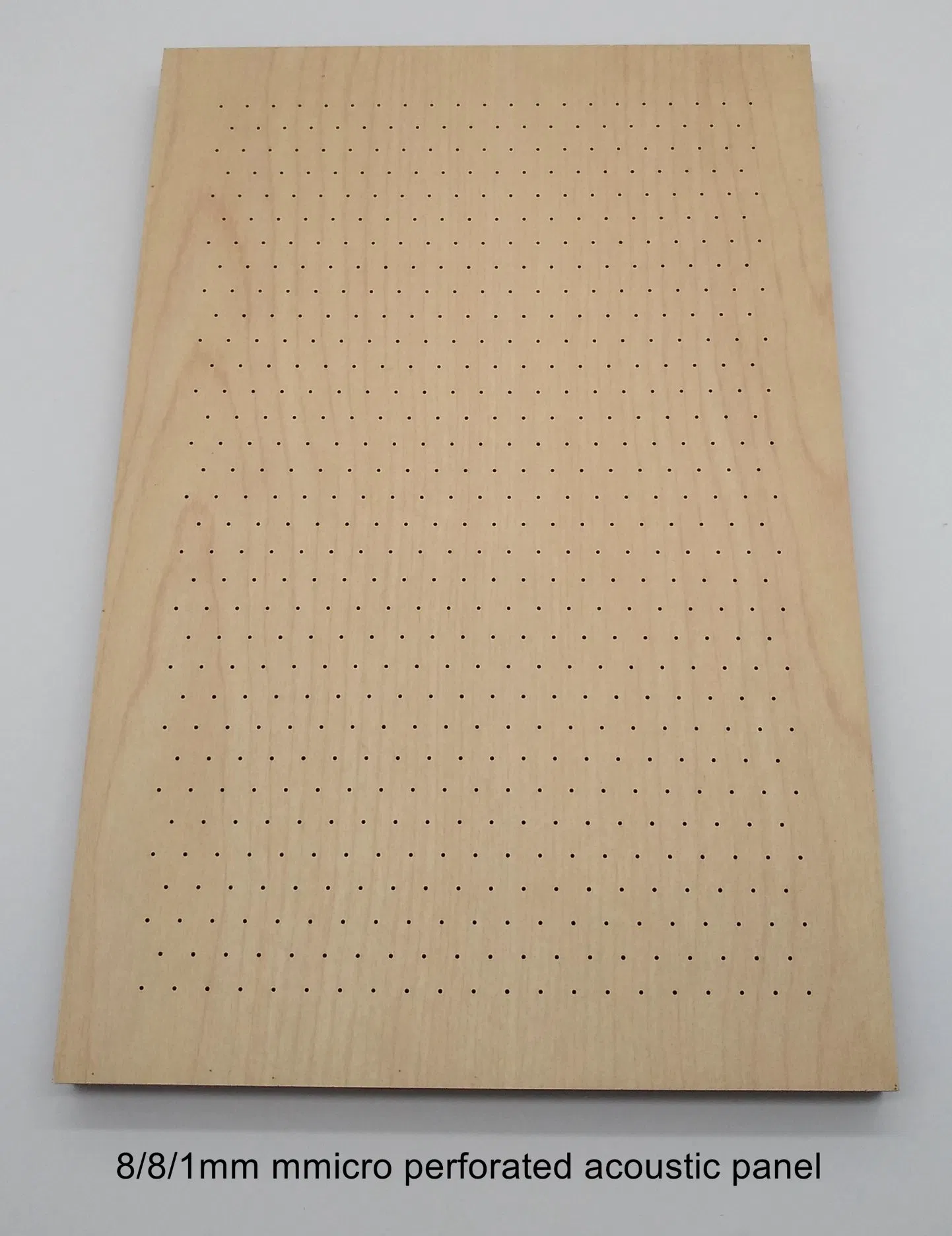

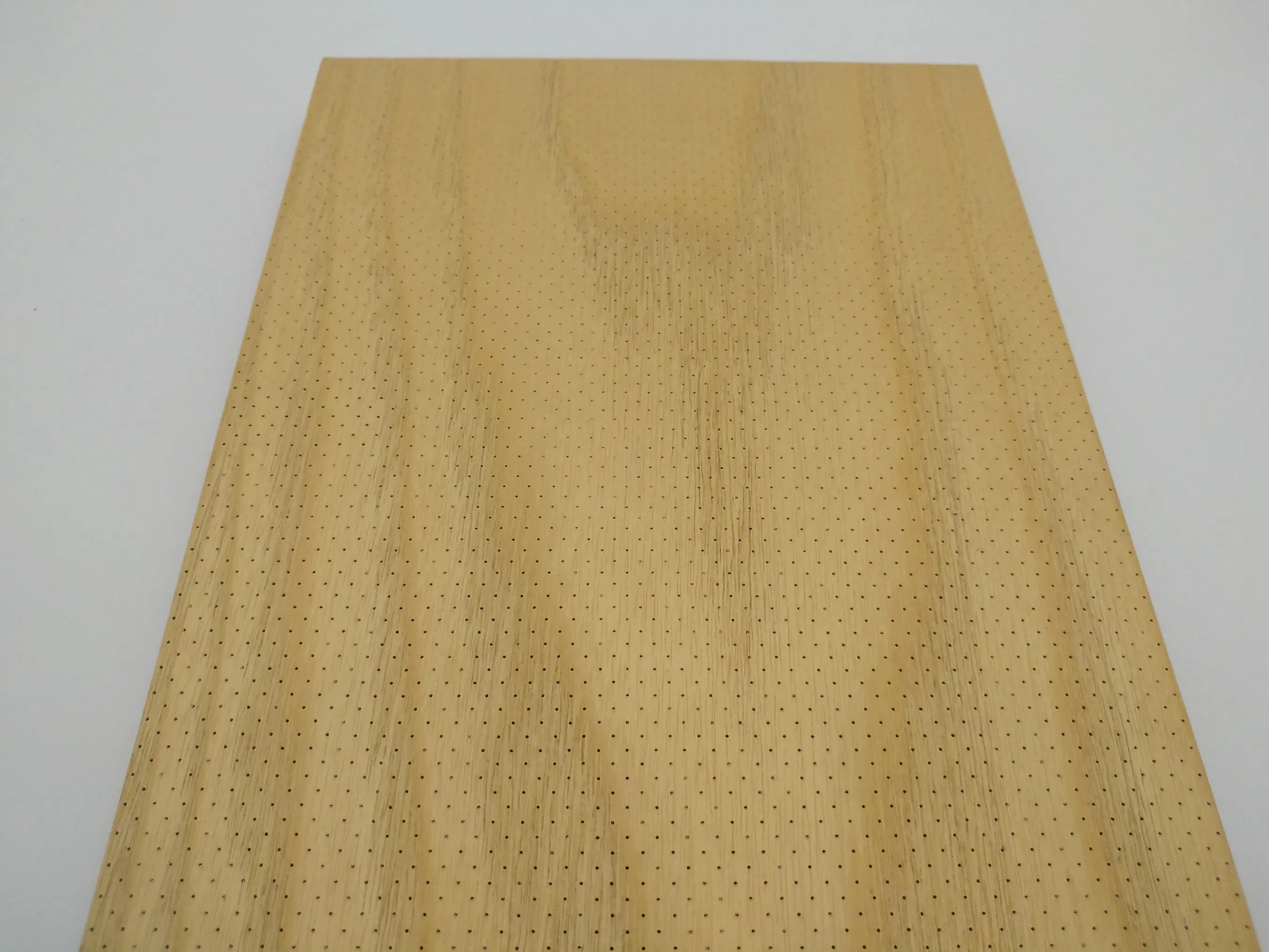

With Micro, the sound absorption function becomes almost completely invisible. The perforation measures a mere 0.5mm (or even 0.3mm) so it is virtually invisible from a certain distance. Micro perforated acoustic panel is available in various grids and diameters, depending on the required level of sound absorption. The choice of surface coverings is also virtually unrestricted. All veneers and laminate HPL are available as the design drawing of various projects.

The newest innovation in acoustic woods, micro uses 0.5mm diameter holes to allow for sound absorption. The quality is far beyond the competition and the acoustic performance is second to none.
Core :MDF
Thickness :Standard 15mm
Finish :Veneer, HPL Laminate, Melamine
Coating :Clear varnish protection
Brand:Formica, Lamitak ect
Panel size :1200*600mm or 600*600mm
Shape:Grooved or tongue
MOQ:50sqm
Certificates:ISO, SGS, Interket, ASTM etc
Delivery time:Standard 15 days
Payment term:TT, LC at sight
More service:OEM, ODM
Main production:Acoustic panel

Testing & Installation

NRC Test Report:
Measurement according to ASTM C423-07a Standard Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method OR the measurements were carried out according to BS EN ISO 354: 2003 Acoustics Measurement of Sound Absorption in a reverberation room (equivalent to GB/T 20247-2006).
Finish Options Note:
Veneered elements made of natural wood are inherently subject to variations in color and structure. Elements should be sorted harmoniously before wall or ceiling mounting.
Installation Method:
Standard "Z" Clips Wall Installation Method is recommended for optimal performance.

Frequently Asked Questions

What is a micro-perforated acoustic panel?
It is a sound-absorbing panel with tiny holes (0.3mm to 0.5mm) that are virtually invisible from a distance, combining aesthetic wood finishes with high acoustic performance.
What core materials are used in these panels?
The primary core material used is high-quality MDF, which provides durability and excellent soundproofing properties.
Are the panels resistant to pests and moisture?
Yes, these panels are available with mould-proof and termite-proof treatments, making them suitable for long-term indoor use.
Can I choose different finishes for my project?
Absolutely. We offer various surface options including Natural Wood Veneer, HPL Laminate, and Melamine to match your interior design.
What is the standard lead time for orders?
The standard delivery time is approximately 15 days, depending on the order size and specific requirements.
How are the acoustic panels installed on walls?
The most common and effective method is using the "Z" Clips installation system, which provides a secure and clean finish.
